GMKtec M8 Mini PC AMD Ryzen™ 5 PRO 6650H

US Orders: No Import Fees

Hassle-free 7-Day Return

1-Year Warranty

GMKtec M8 Mini PC AMD Ryzen™ 5 PRO 6650H

$379.99

US Orders: No Import Fees

Hassle-free 7-Day Return

1-Year Warranty

DDR + SSD: 16GB RAM+ 512GB SSD

16GB RAM+ 512GB SSD 16GB RAM+1TB SSD

Power Plug: US

US EU UK AU

Limited time offer

Get $20 off when you spend $1,000 or more! Learn more

Payment & Security

GMKtec M8 Mini PC AMD Ryzen™ 5 PRO 6650H

$379.99

Parameter	Details
Model	GMKtec NucBox M8
CPU Model	AMD Ryzen™ 5 PRO 6650H
CPU	AMD Ryzen™ PRO 6000 Series Processor, 6 Cores, 12 Threads TSMC 6nm FinFET Process Base Frequency 3.3GHz, Max Boost up to 4.5GHz 3MB L2 Cache / 16MB L3 Cache Zen 3+ Architecture
GPU	AMD Radeon™ 660M Graphics 6 Cores, up to 1900MHz
Memory (RAM)	On-board LPDDR5-6400 Memory 16GB standard configuration Non-upgradable design
Storage (ROM)	PCIe 3.0 M.2 2280 SSD 512GB / 1TB options
Storage Expansion	2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports up to 8TB per slot (Max 16TB) SATA SSD not supported
Graphics Output	Triple display output via HDMI + DisplayPort + USB4 Supports up to 8K resolution
Network	Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (RTL8125BG)
Power	Built-in coin cell battery DC Power Adapter 20V / 5A, 100W

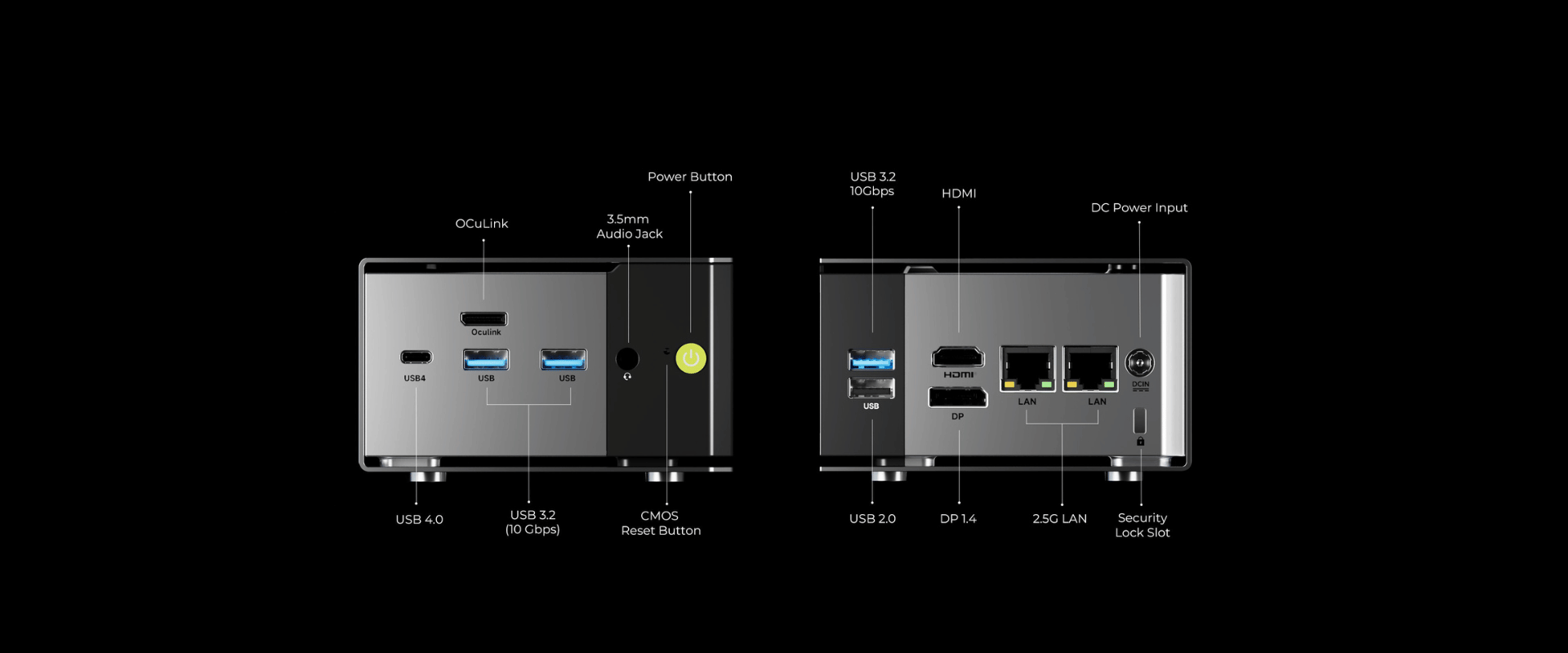

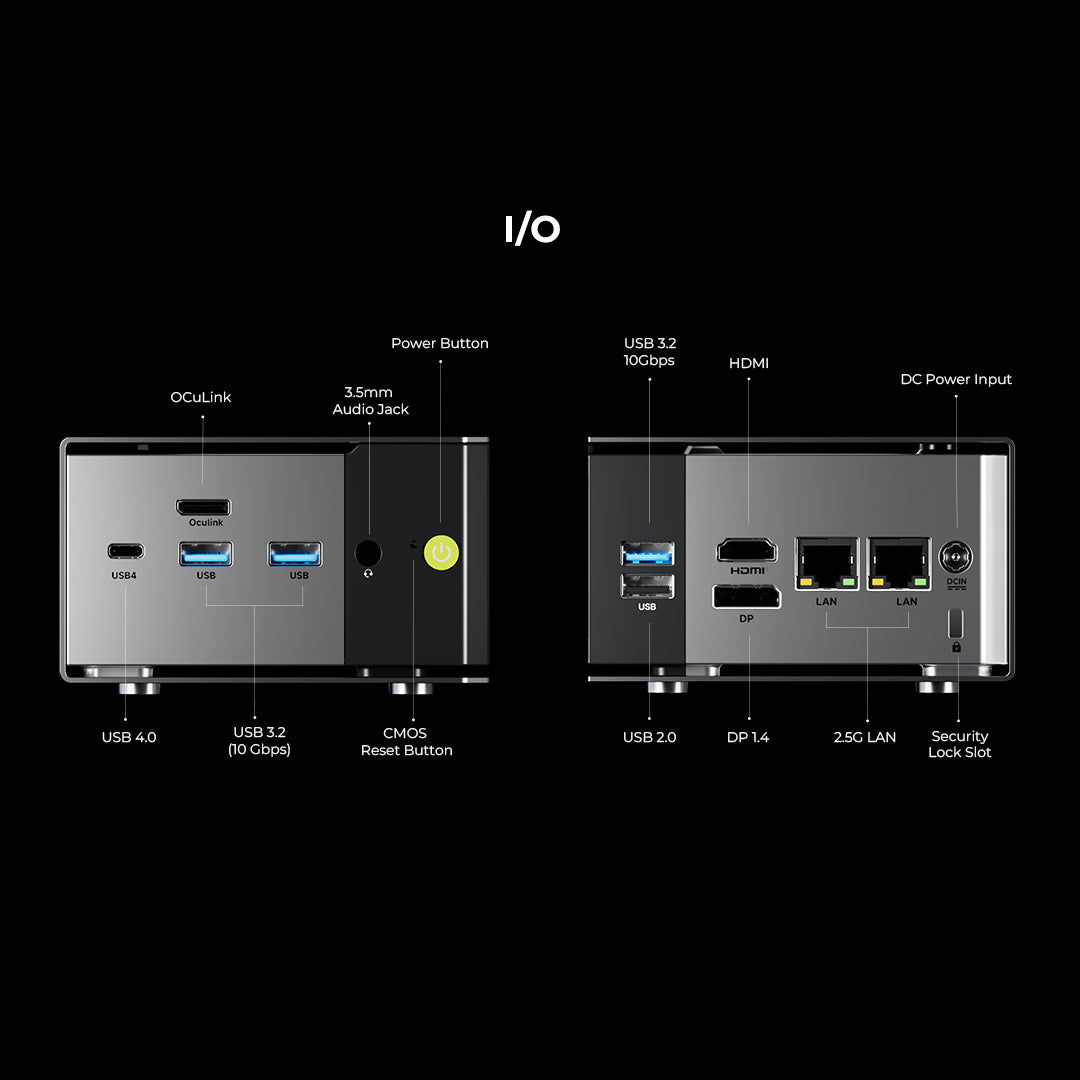

External Ports	USB-A: 3 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0 USB4: 1 × USB4 Full-Function Port (40Gbps / PD 100W / DisplayPort 1.4) HDMI: 1 × HDMI 2.0 DisplayPort: 1 × DisplayPort 1.4 OCulink: 1 × OCulink PCIe Gen4 ×4 Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm)
OCulink Notice	The OCulink port does not support hot-plugging. Please connect or disconnect the cable only when the device is powered off.
Operating System	Windows 11 Pro
Language Support	14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic
Chassis Dimensions	107 × 111 × 63 mm
Weight	Approx. 590 g
Color	Metallic Silver
Working Temperature	0°C – 40°C
Warranty	1-Year Limited Warranty
Certifications	CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report
Packaging List	User Manual Warranty Card Power Adapter HDMI Cable

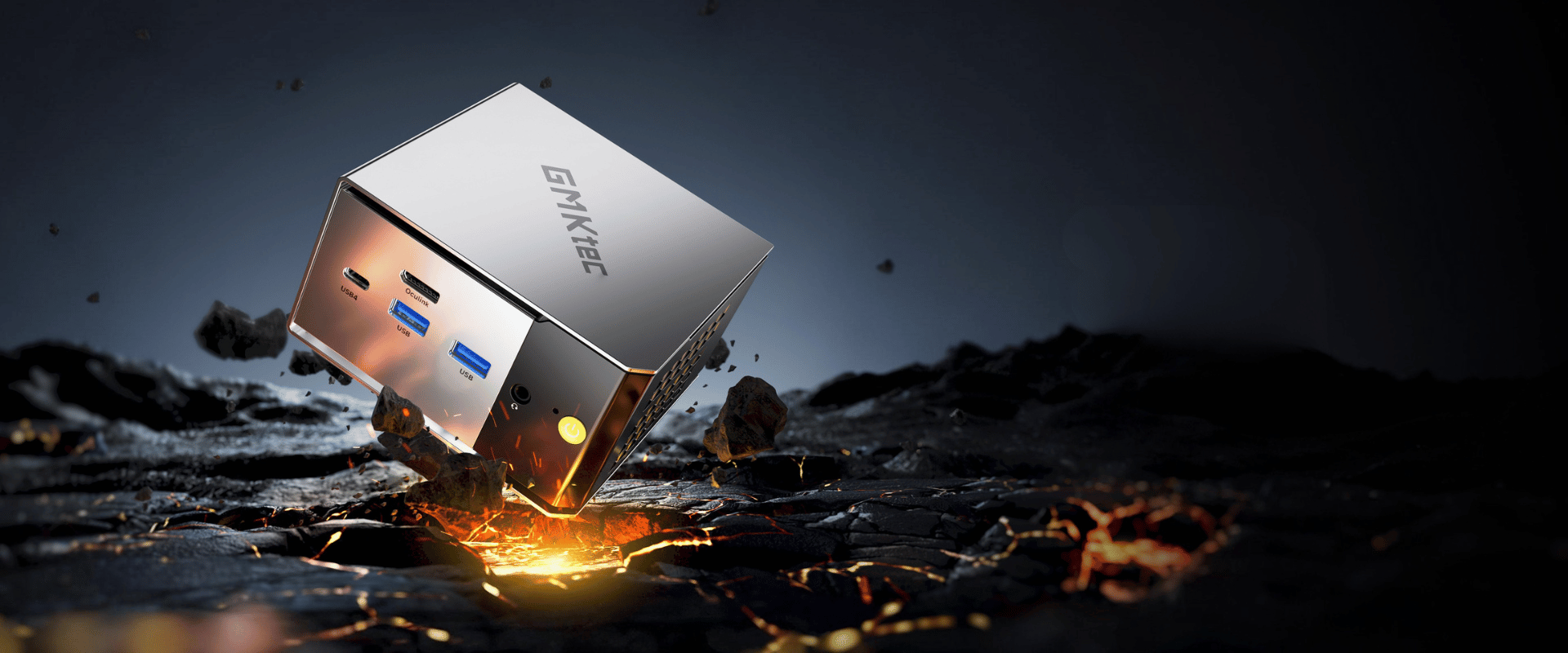

GMKtec NucBox M8

AMD Ryzen™ 5 PRO 6650H
For Every Power User
From Work to Play

8 Premium Features

AMD Ryzen™ 5 PRO 6650H

6 Cores, 12 Threads，3.3GHz

AMD Radeon™ 660M

1900 MHz

OCuLink interface

PCle Gen4x4

Dual-fan Cooling System

Dual SSD Slots

2xPCle 3.0 M.2 2280 SSD (MAX 16TB)
Support PCle 4.0

WiFi 6E (2.4Gbps)

BT5.2+Dual 2.5G LAN

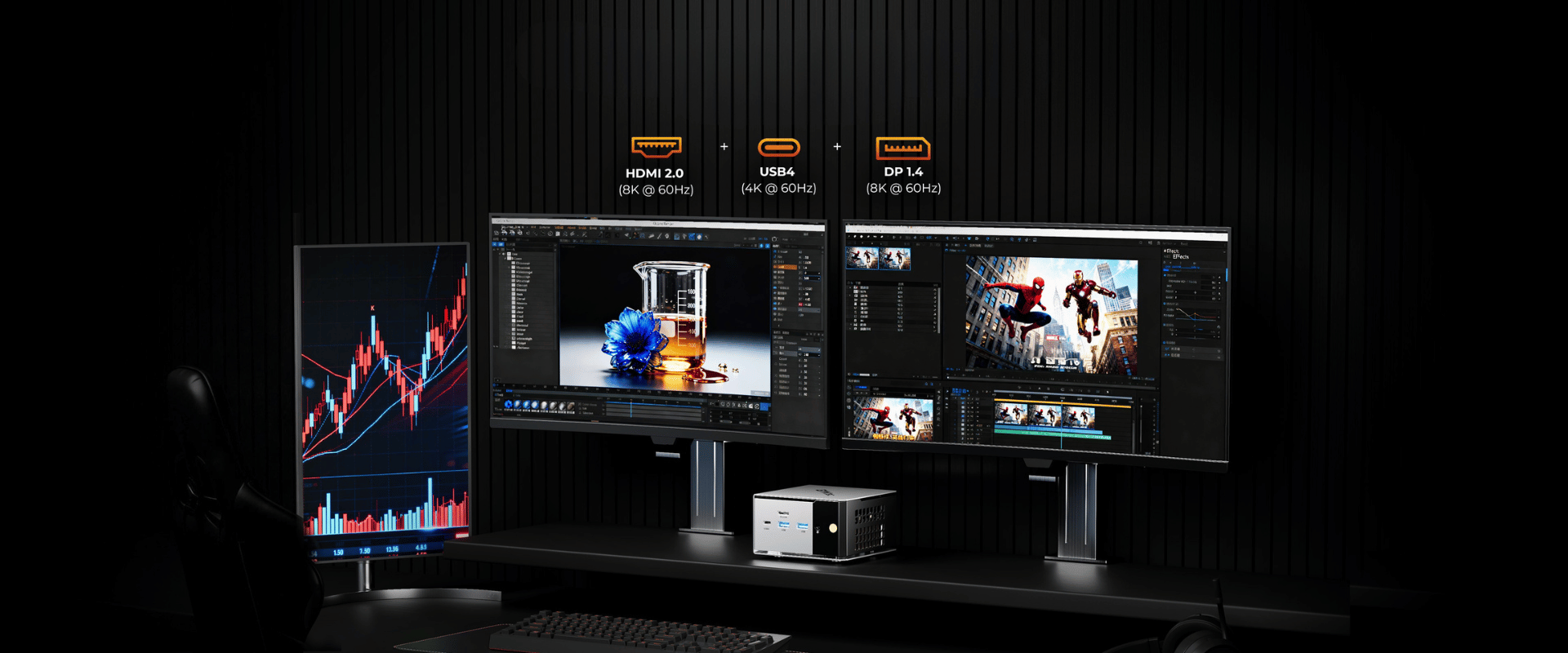

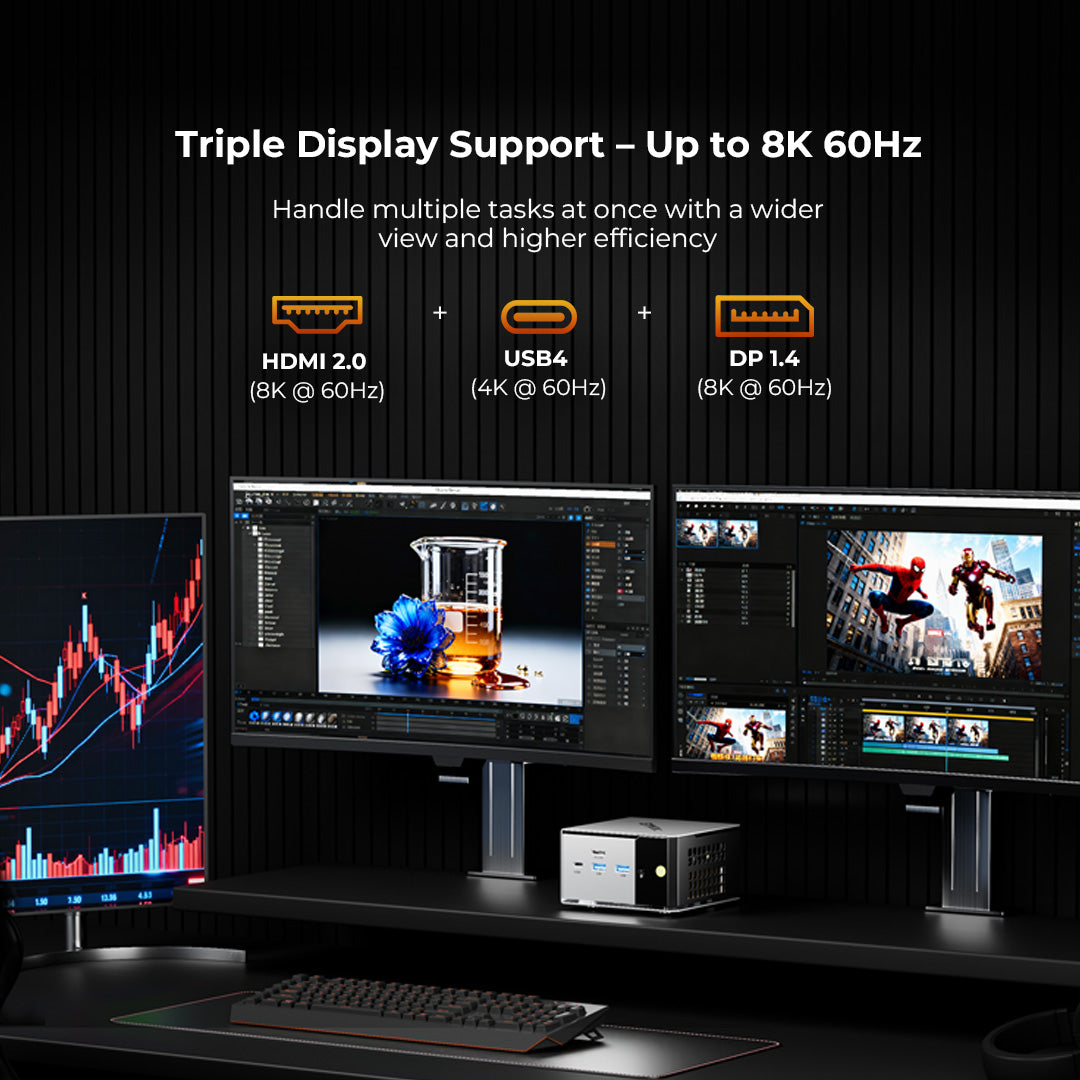

Triple 8K Display

HDMI 2.0 + DP 1.4 + USB4.1

16GB LPDDR5

6400MT/s (Onboard)

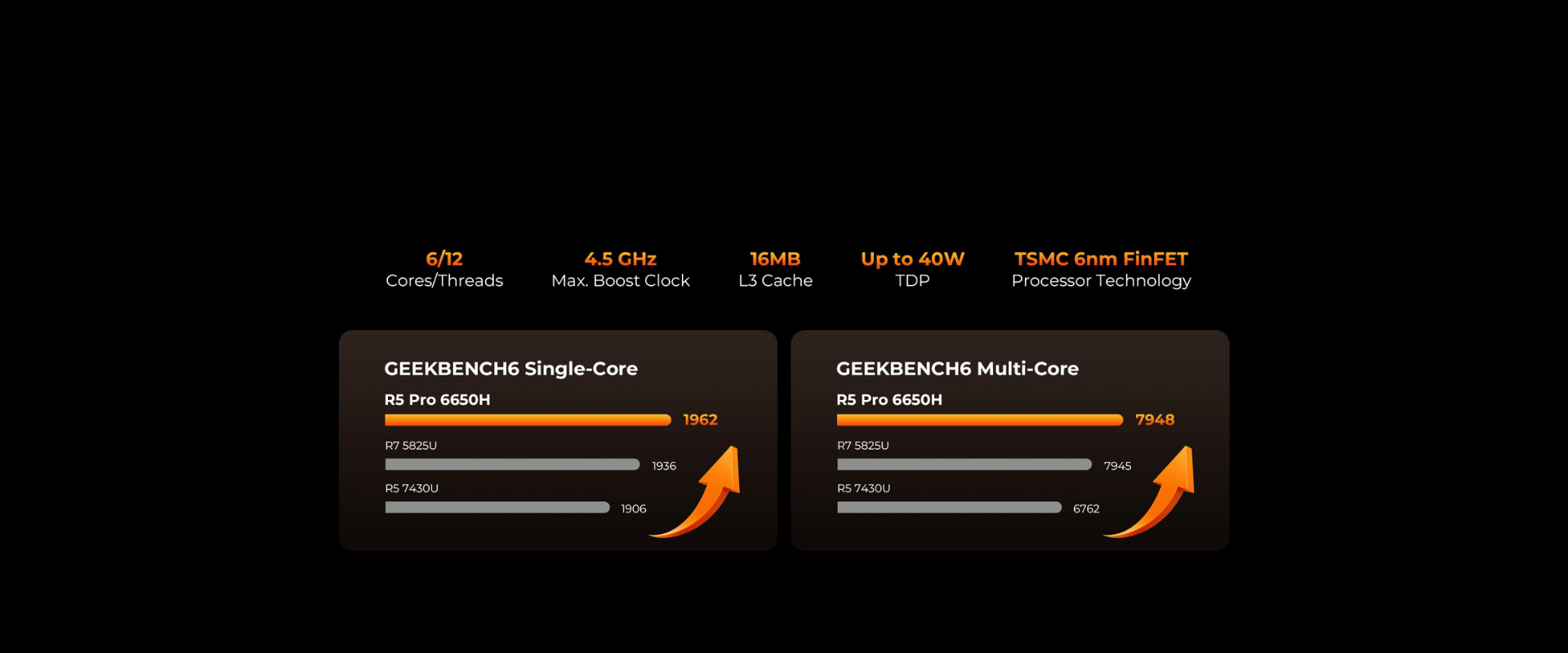

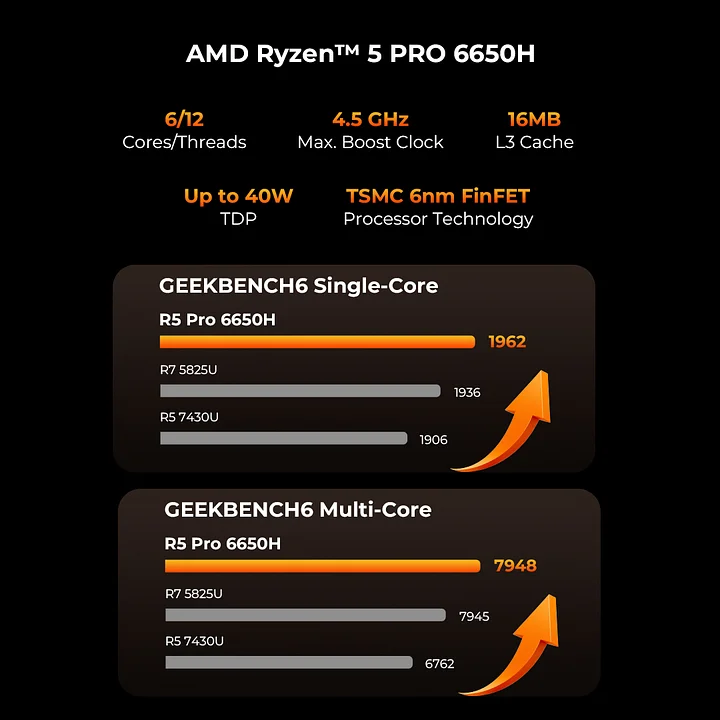

AMD Ryzen™ 5 PRO 6650H

The all-new AMD Ryzen PRO 6000 (Rembrandt) series delivers dual optimization of CPU and integrat-
ed graphics, built on advanced 6nm process technology with the ZEN3+ architecture. This high-performance mobile processor is designed specifically for stable and efficient business performance.

AMD Radeon™ 660M

The RDNA 2 architecture delivers near discrete GPU-leveel graphicsperformance. With hardware-level ray tracing and FSR 22.0 supportIt handles everyday media playback, Photoshop graphiccs processing effortlessly, and smoothly supports light gaming andd office/creative tasks.

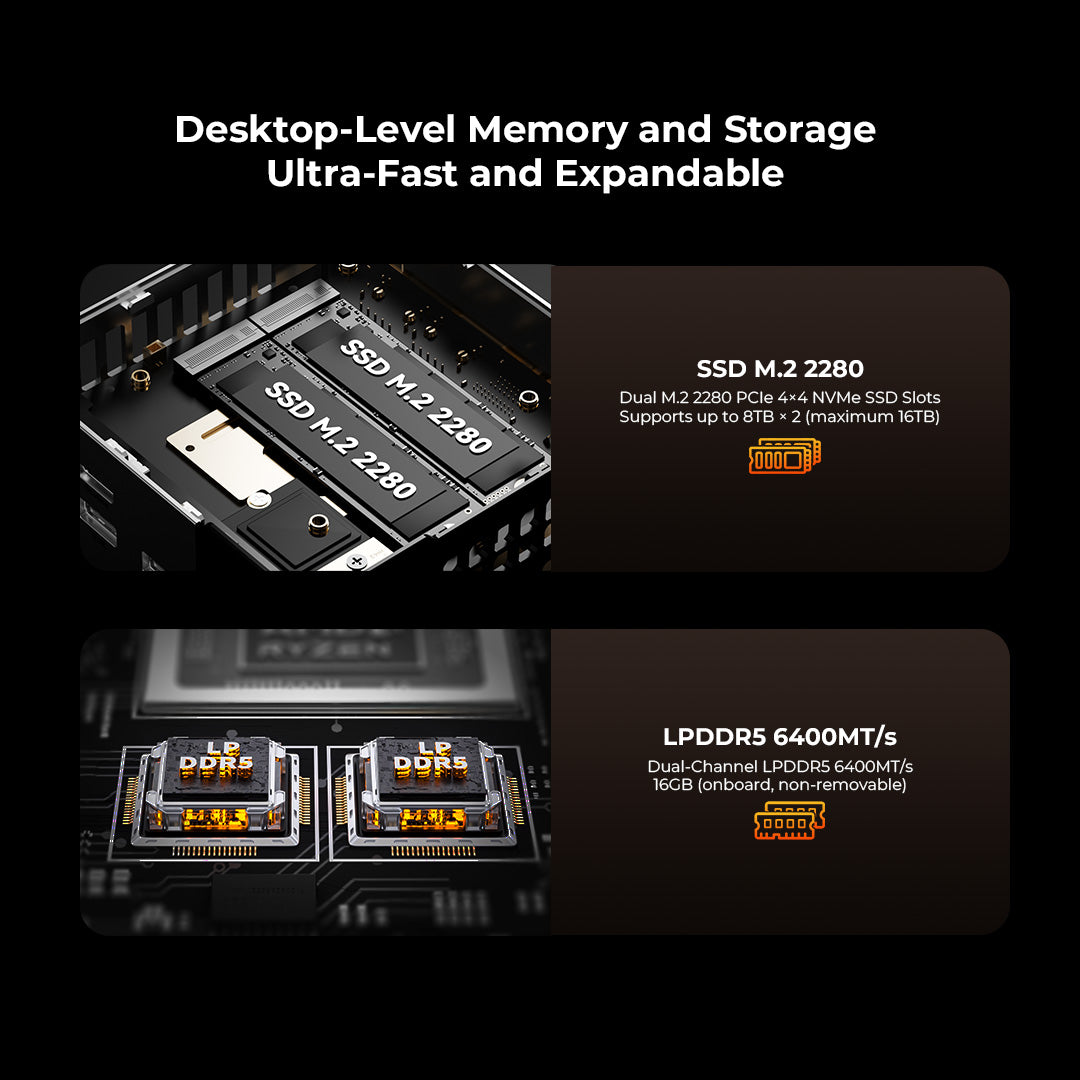

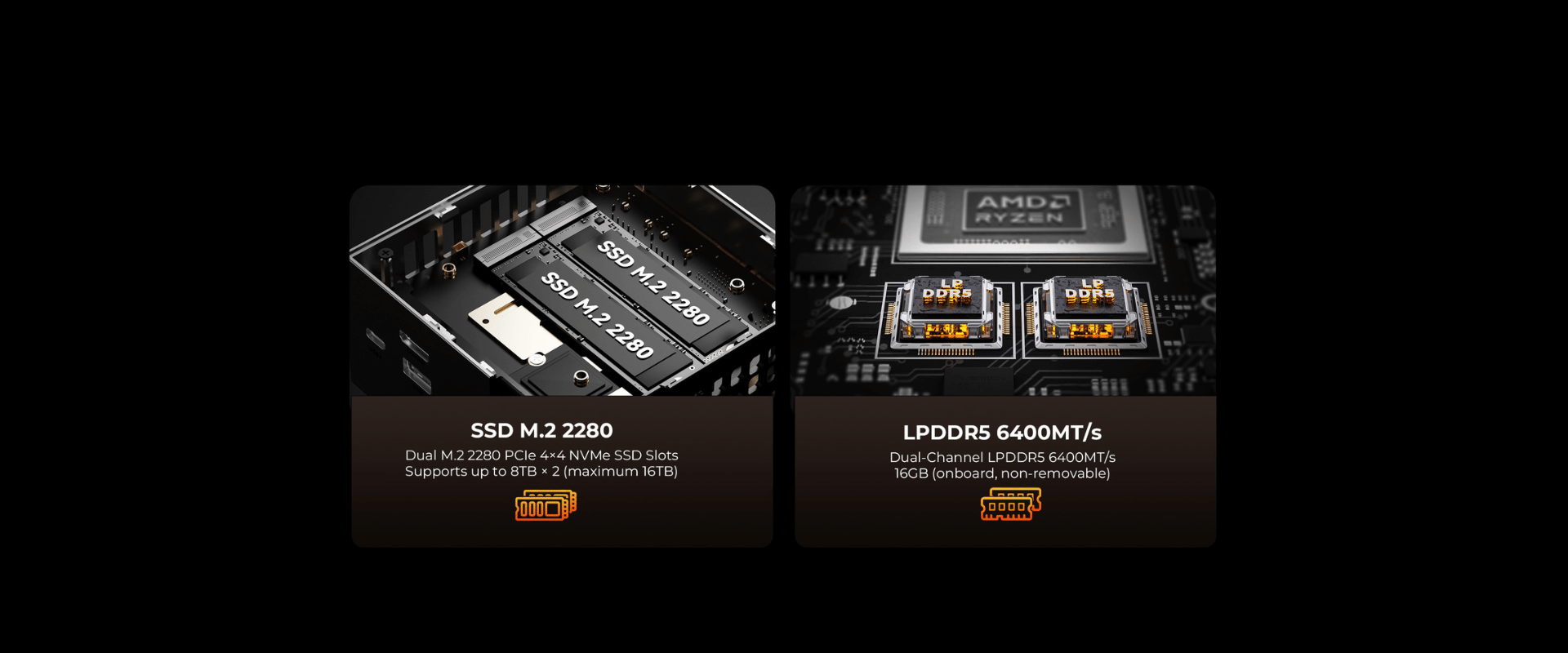

Desktop-Level Memory and Storage Ultra-Fast and Expandable

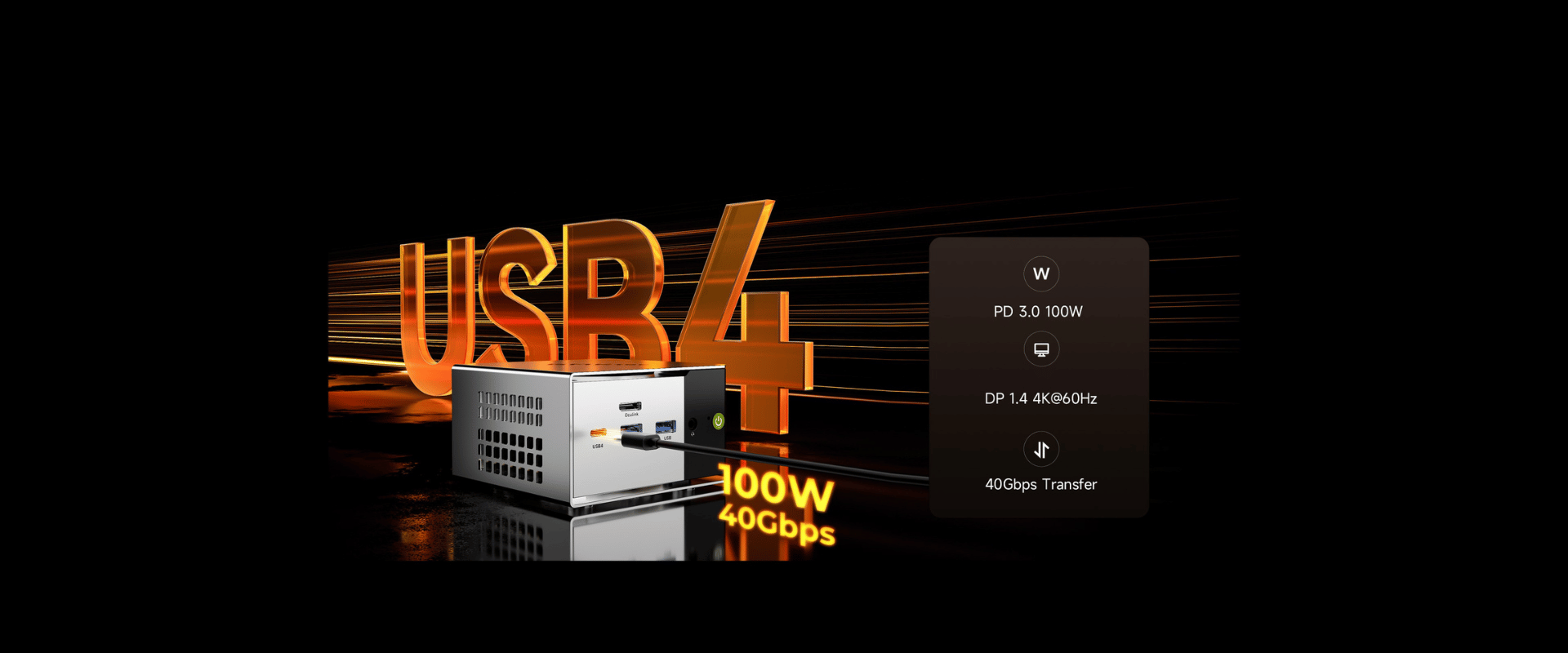

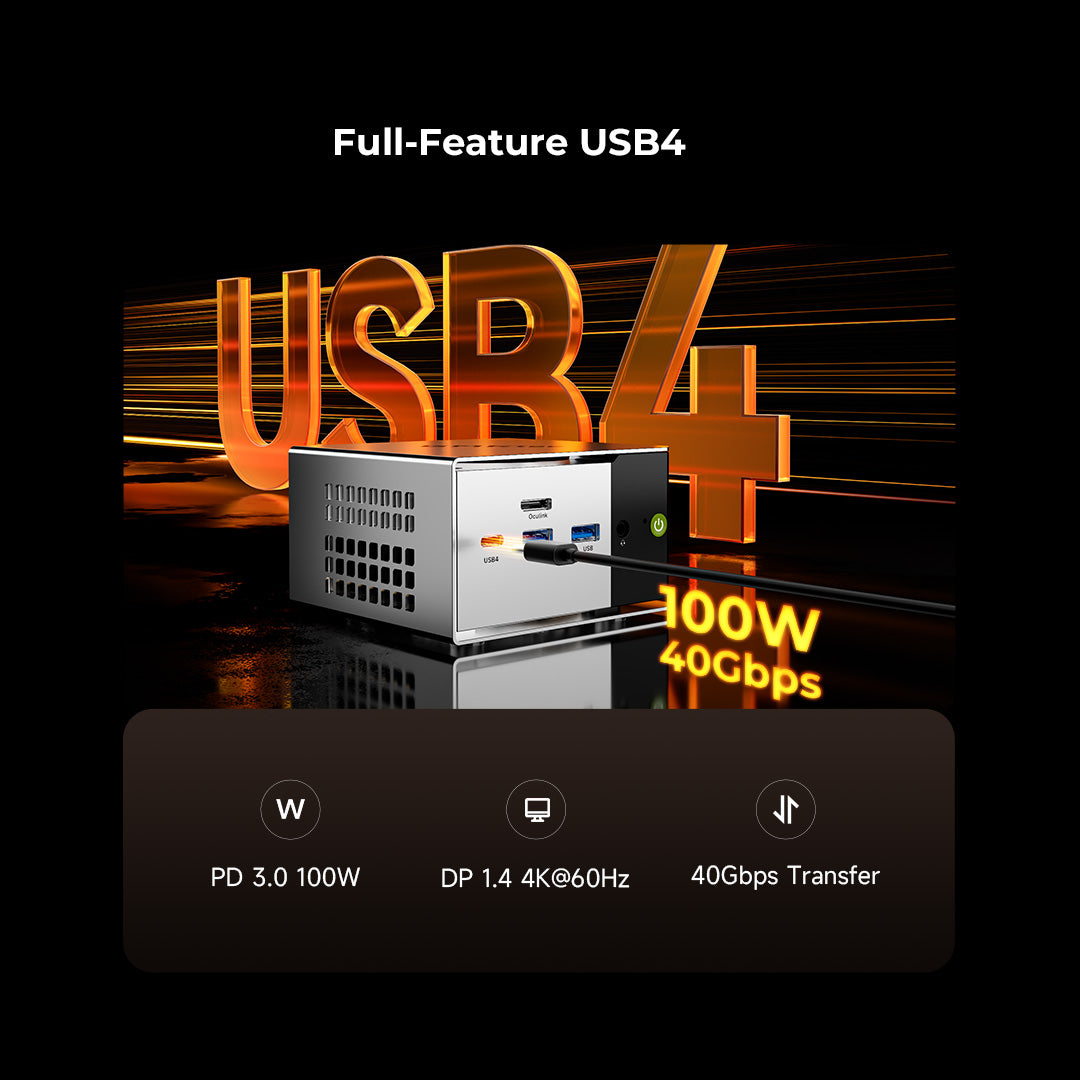

Full-Feature USB4

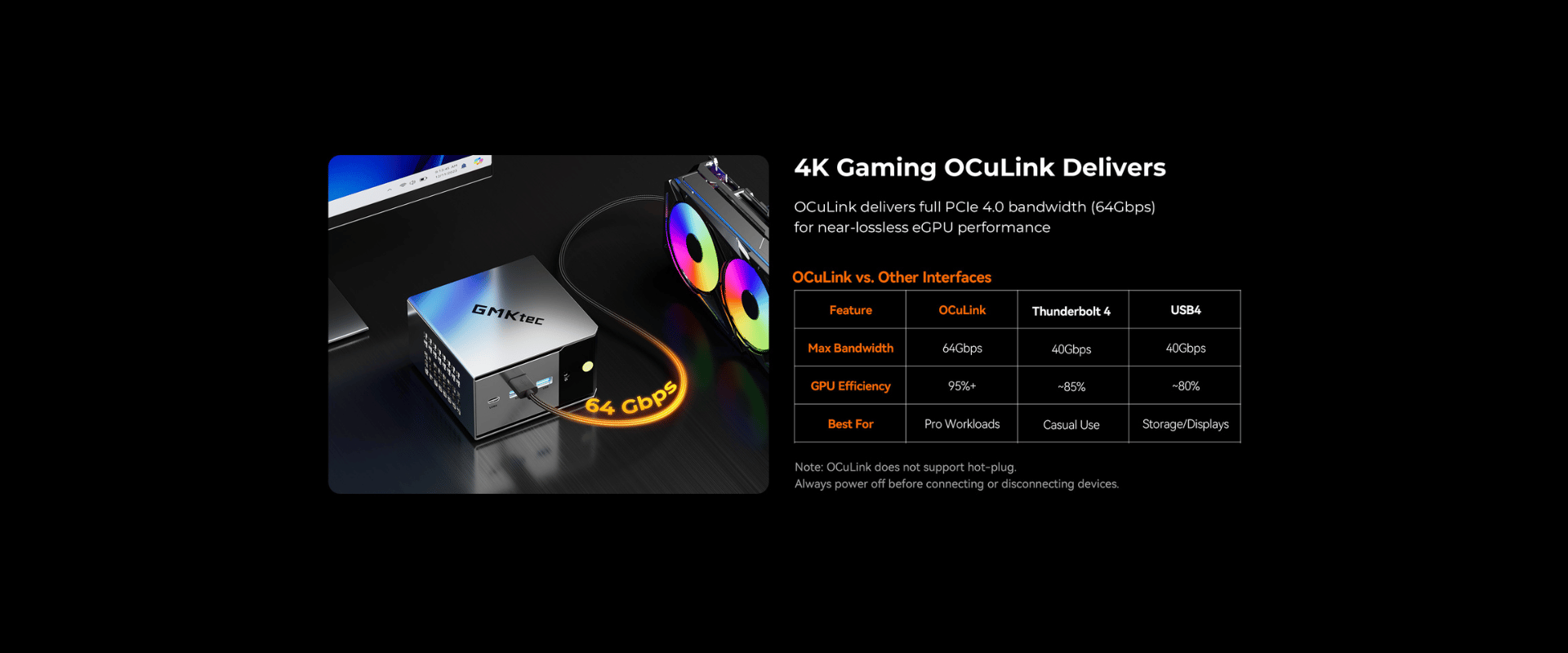

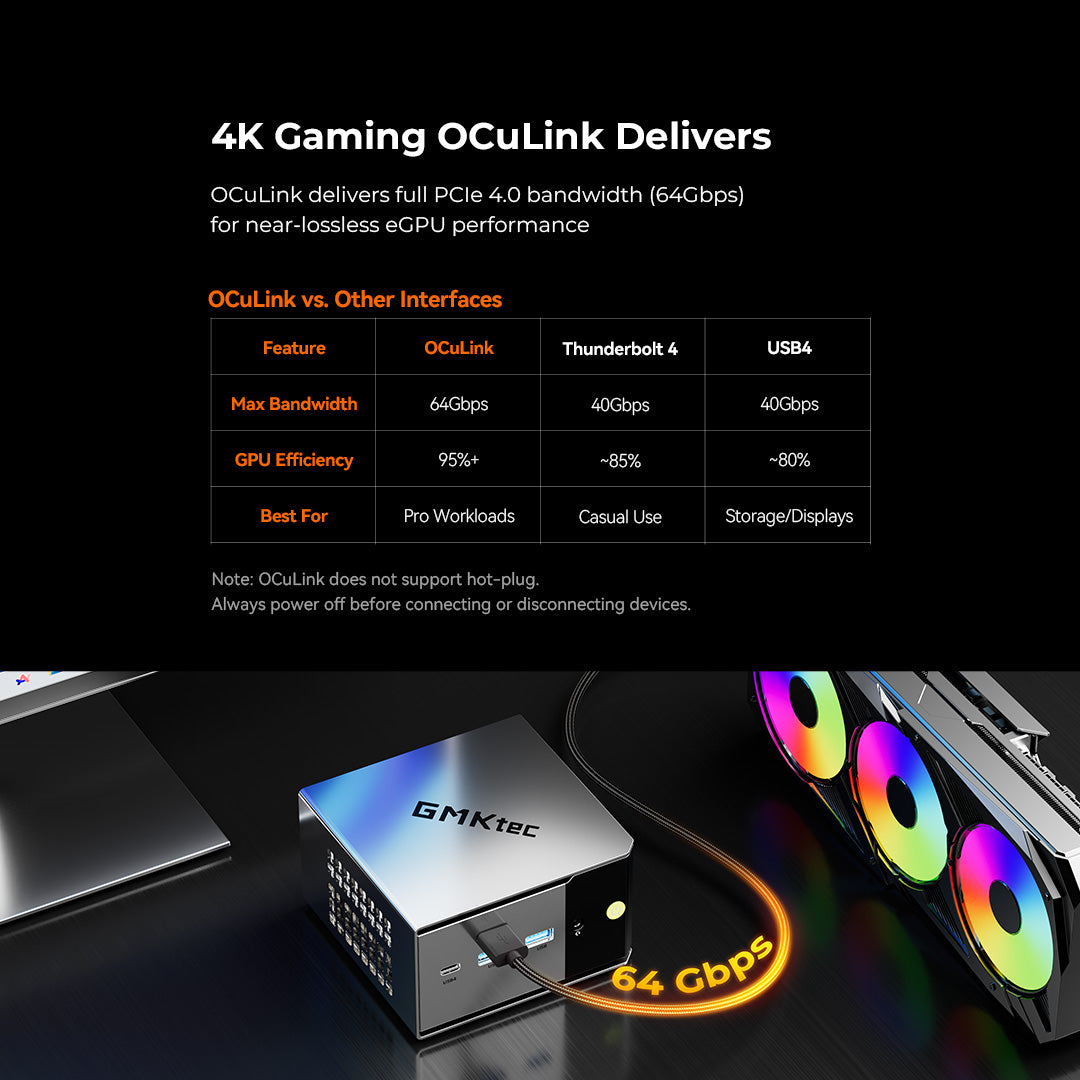

4K Gaming OCuLink Delivers

OCuLink delivers full PCIe 4.0 bandwidth (64Gbps) for near-lossless eGPU performance

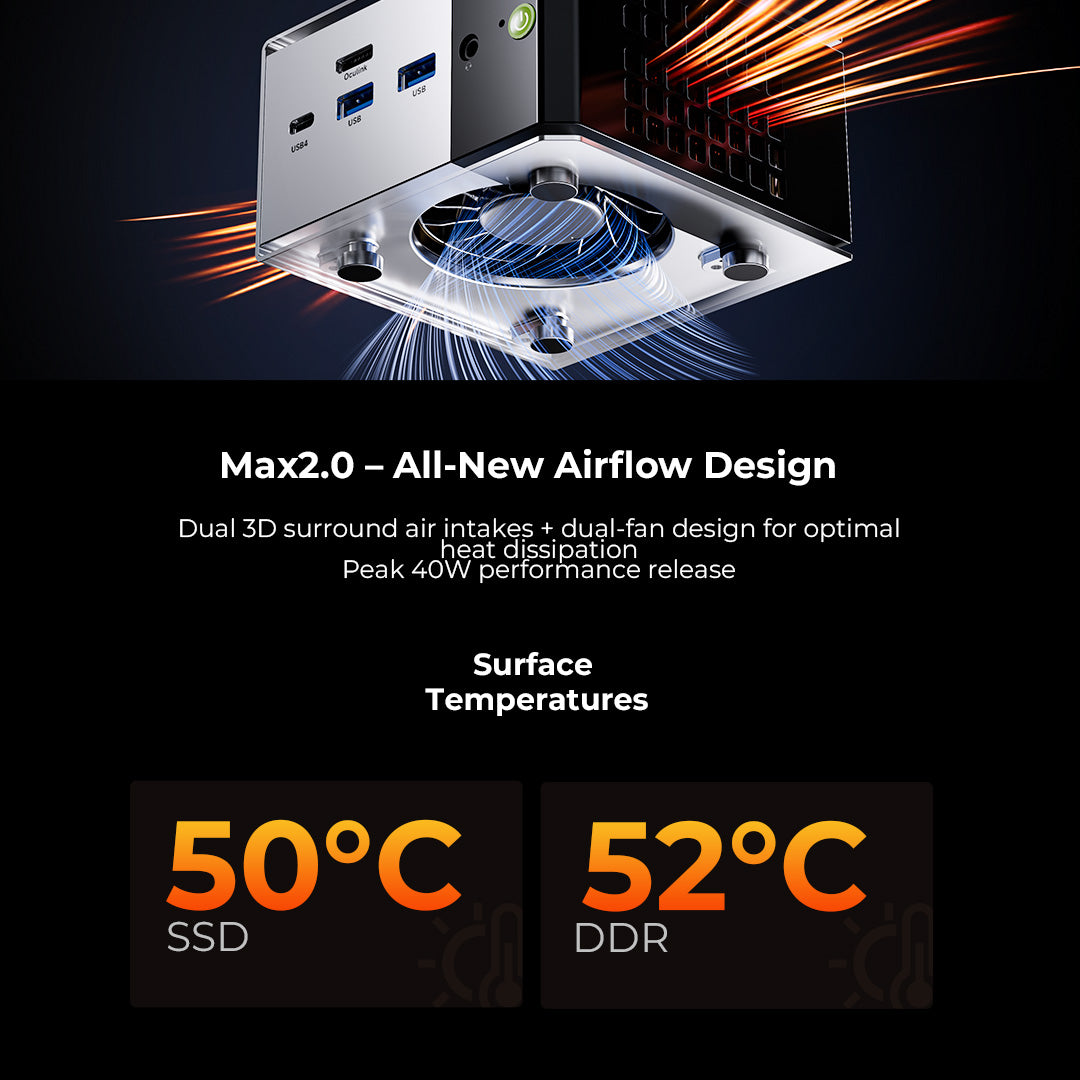

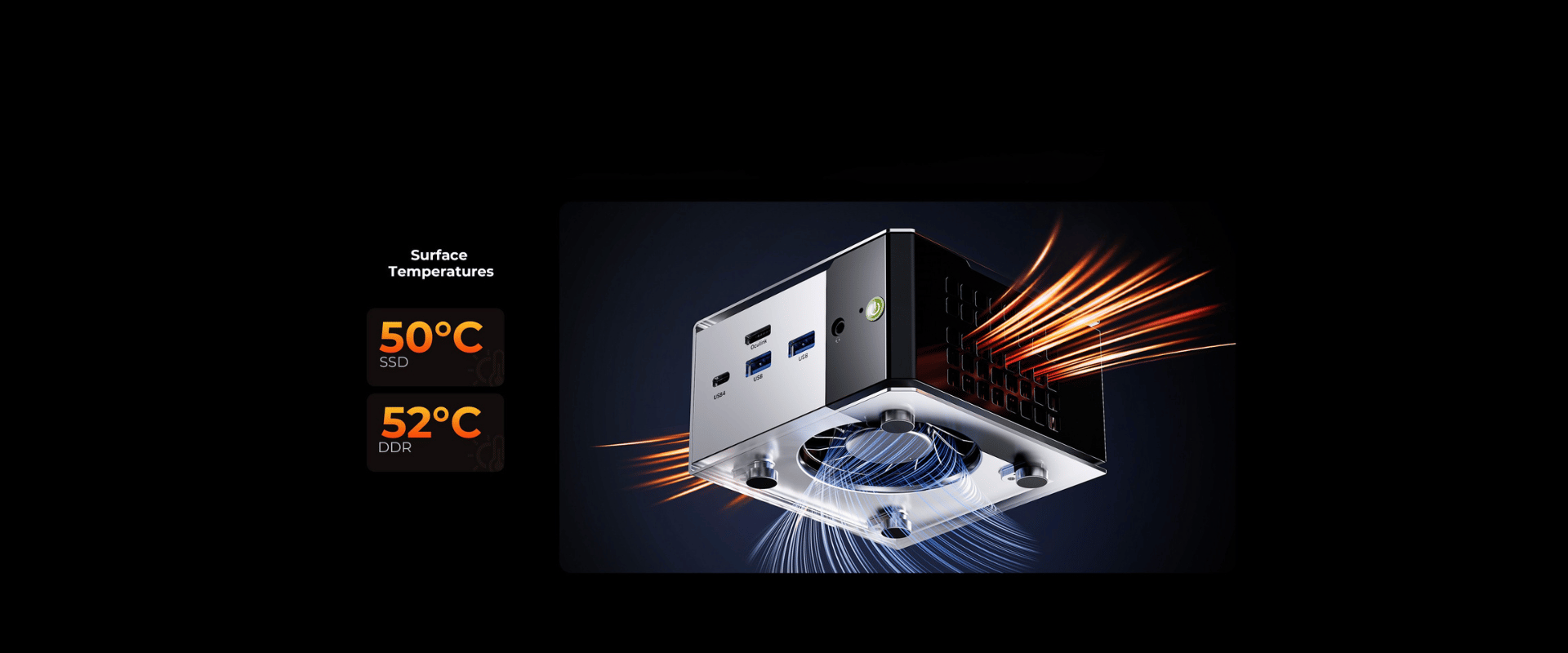

Max2.0 - All-New Airflow Design

Dual 3D surround air intakes + dual-fan design for optimal heat dissipationPeak 40W performance release

Equipped with dual 2.5G Ethernet ports and WiFi 6E,providing high-speed, stable connectivity for both wiredand wireless connections. Enjoy lag-free online gamingand 8K video streaming.
