GMKtec EVO-X3 AMD Ryzen™ AI Max+ 395 AI Mini PC
GMKtec EVO-X3 AMD Ryzen™ AI Max+ 395 AI Mini PC
- CPU: AMD Ryzen™ AI Max+ 395, 16 Cores / 32 Threads, Zen 5 architecture, up to 5.1GHz.
- GPU: AMD Radeon™ 8060S (RDNA 3.5), 40 Compute Units, delivering 1080p AAA gaming performance close to an RTX 4070.

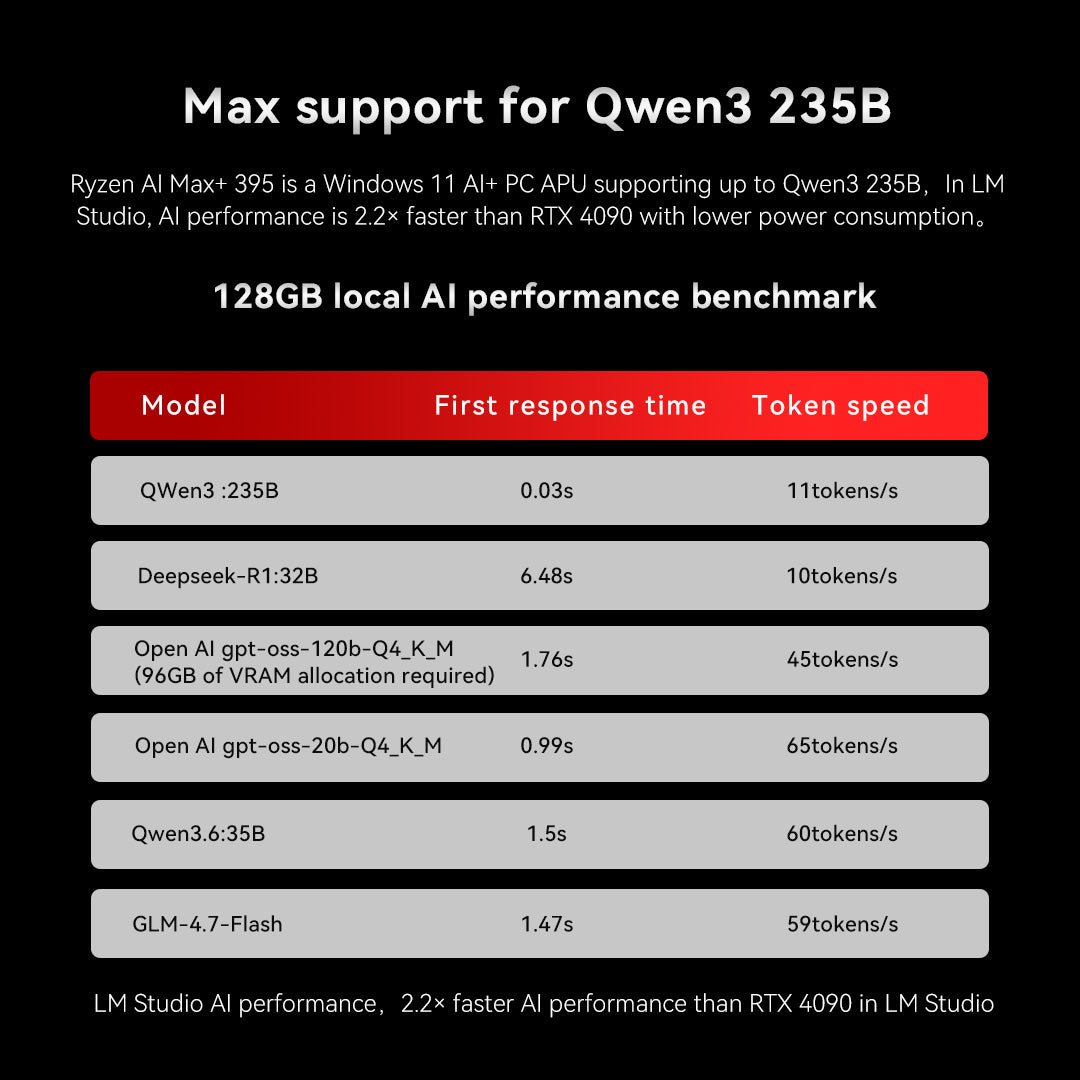

- AI Performance: Up to 126 TOPS, supporting 235B LLMs.
- Memory: 128GB onboard LPDDR5X memory, up to 8000MT/s, Up to 96GB VRAM.
- 4TB SSD: Dual M.2 PCIe 4.0 ×4 SSD slots, expandable up to 16TB.
- OCuLink: PCIe Gen4 ×4 OCuLink port for high-performance eGPU expansion.
Couldn't load pickup availability
| CPU |
AMD Ryzen™ AI Max+ 395 • 16 Cores / 32 Threads • TSMC 4nm FinFET Process • Up to 5.1 GHz Boost Clock • 16 MB L2 Cache / 64 MB L3 Cache • Zen 5 Architecture • Up to 126 TOPS AI Performance • Silent Mode: 54W • Balanced Mode: 85W • Performance Mode: Peak 140W |
| Cooling System |
• Triple Heat Pipes • Triple Cooling Fans |
| GPU |
Radeon™ 8060S Graphics • 40 Compute Units • Up to 2900 MHz • AMD RDNA 3.5 Architecture |
| AI NPU |
AMD XDNA™ 2 Architecture • 50 TOPS NPU Performance • Up to 126 TOPS Total AI Performance • World's first Windows AI+ PC APU supporting 70B LLM • LM Studio AI performance up to 2.2× NVIDIA RTX 4090 with lower power consumption |
| Memory (RAM) |
Onboard LPDDR5X 8000MT/s (Non-upgradeable) • 128GB Standard Configuration |
| Primary Storage (ROM) |
M.2 2280 PCIe 4.0 ×4 NVMe SSD • 2TB / 4TB |
| Internal Storage Expansion |
Dual M.2 2280 PCIe 4.0 ×4 Slots • Maximum Total Storage: 16TB (8TB ×2) |

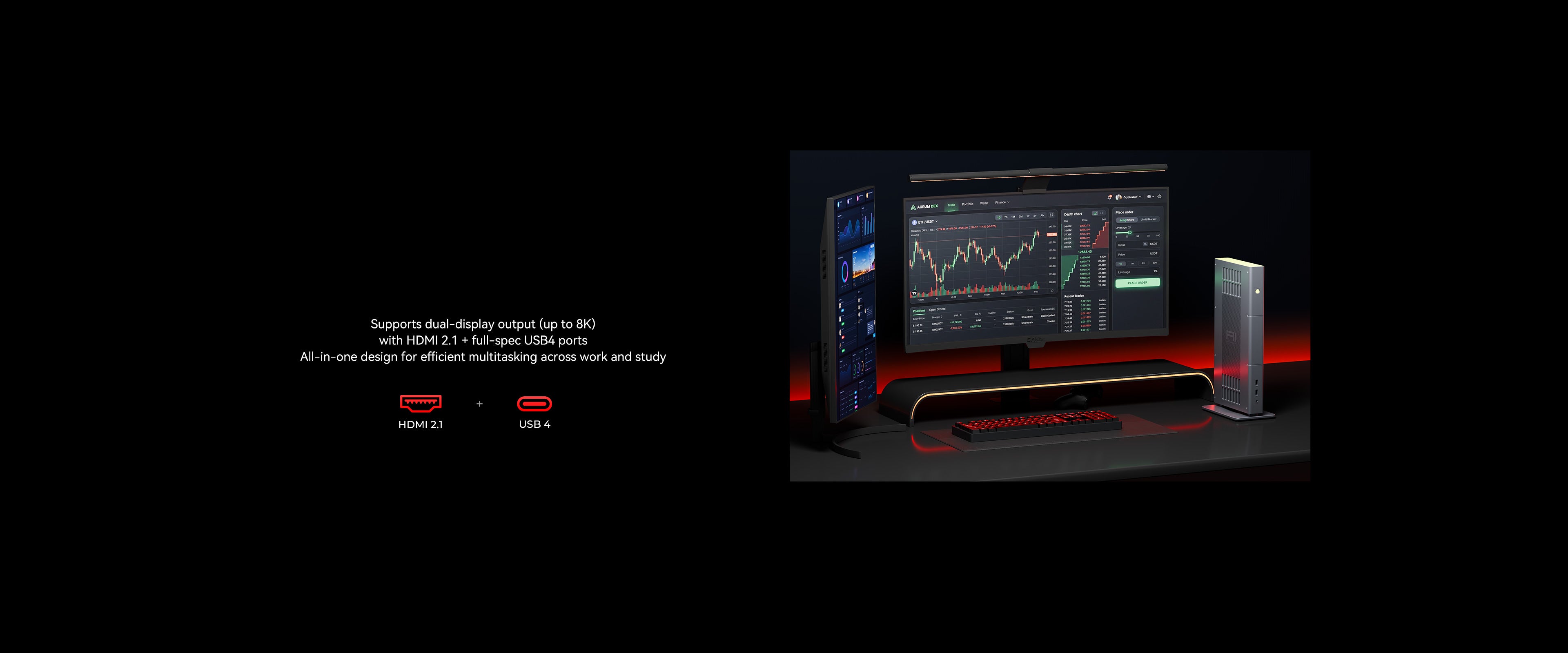

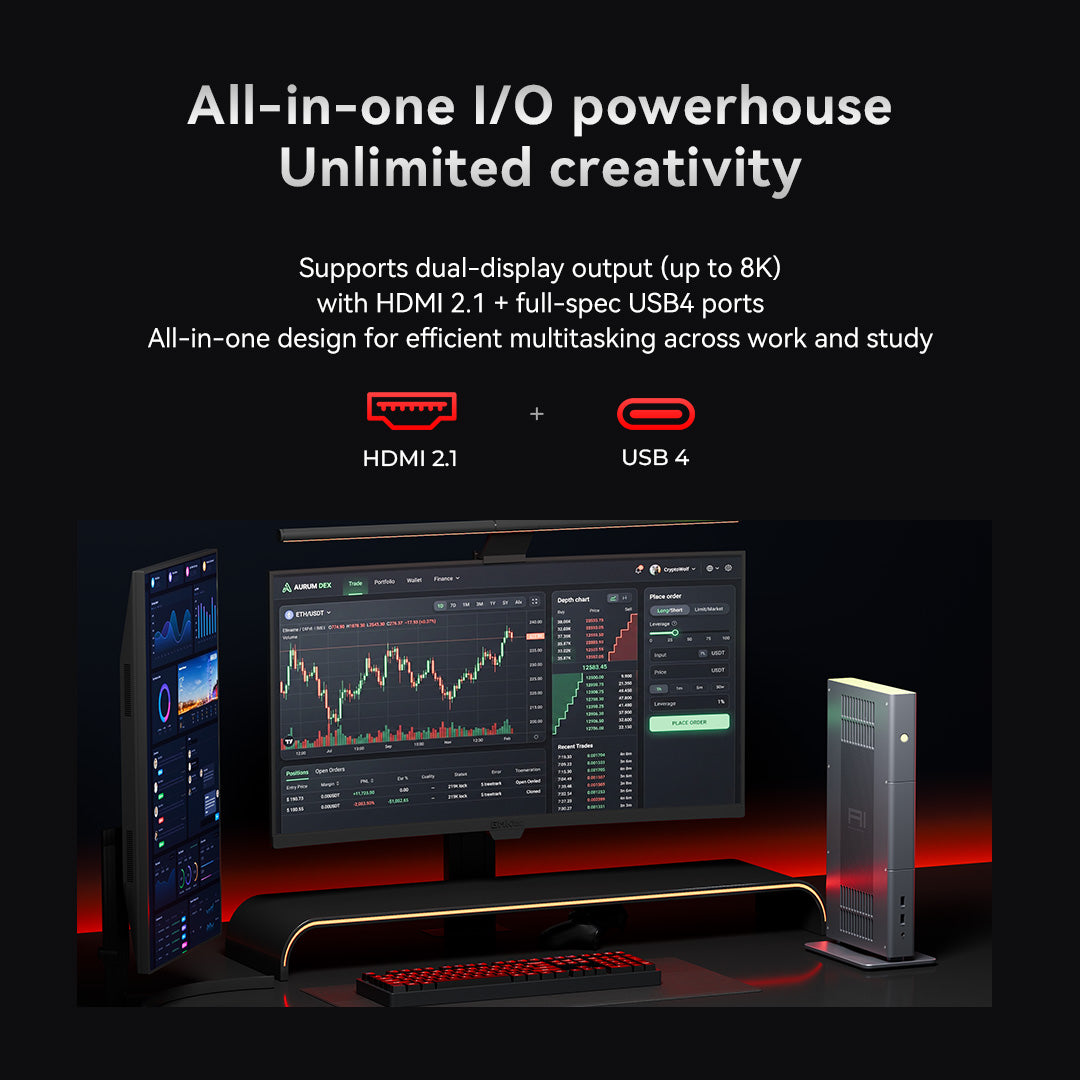

| Video Output |
• 1 × HDMI 2.1 • 1 × USB4 Type-C |
| Network (WiFi & LAN) |
Wi-Fi 7 (RZ717 / MT7925) • Up to 2.9Gbps Ethernet • 1 × 2.5G RJ45 LAN (RTL8125BG) |
| Bluetooth | Bluetooth 5.4 |
| Power |
• Built-in CMOS Battery • DC IN 19.5V / 11.8A |

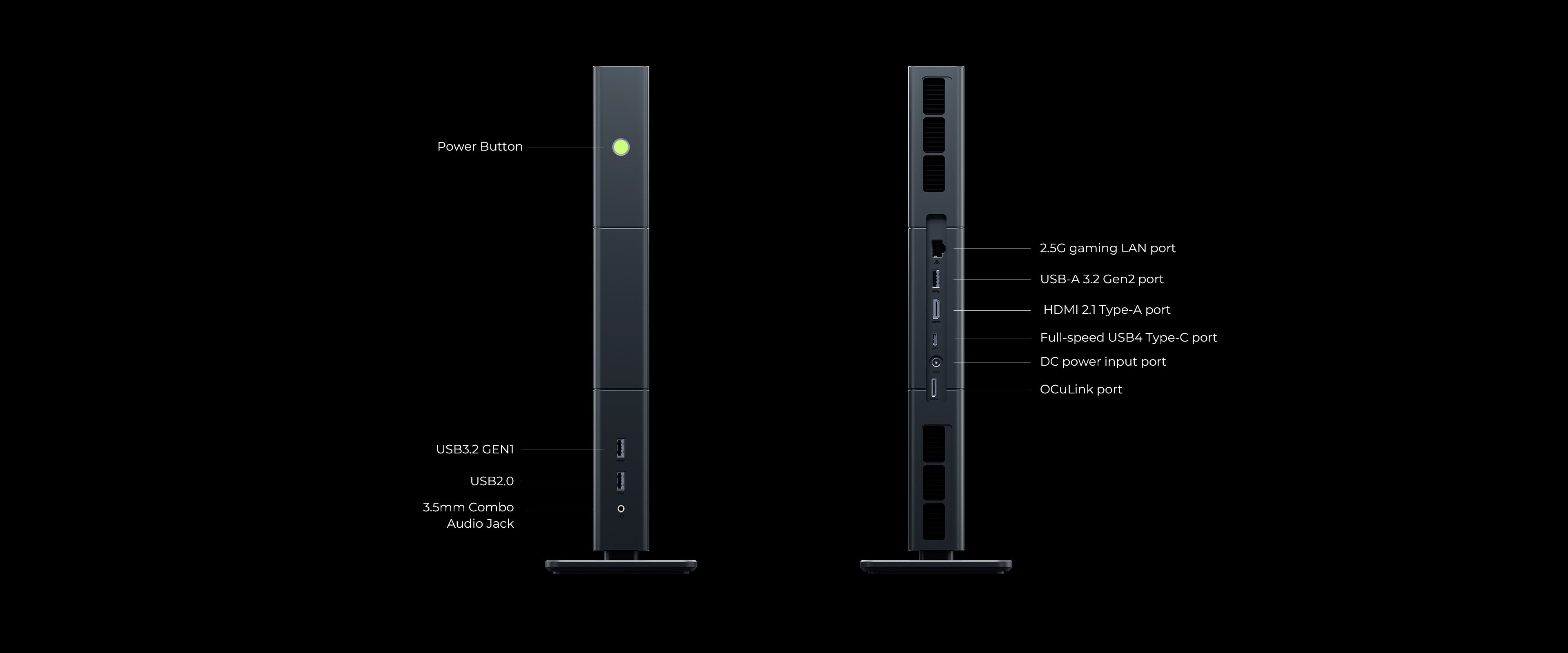

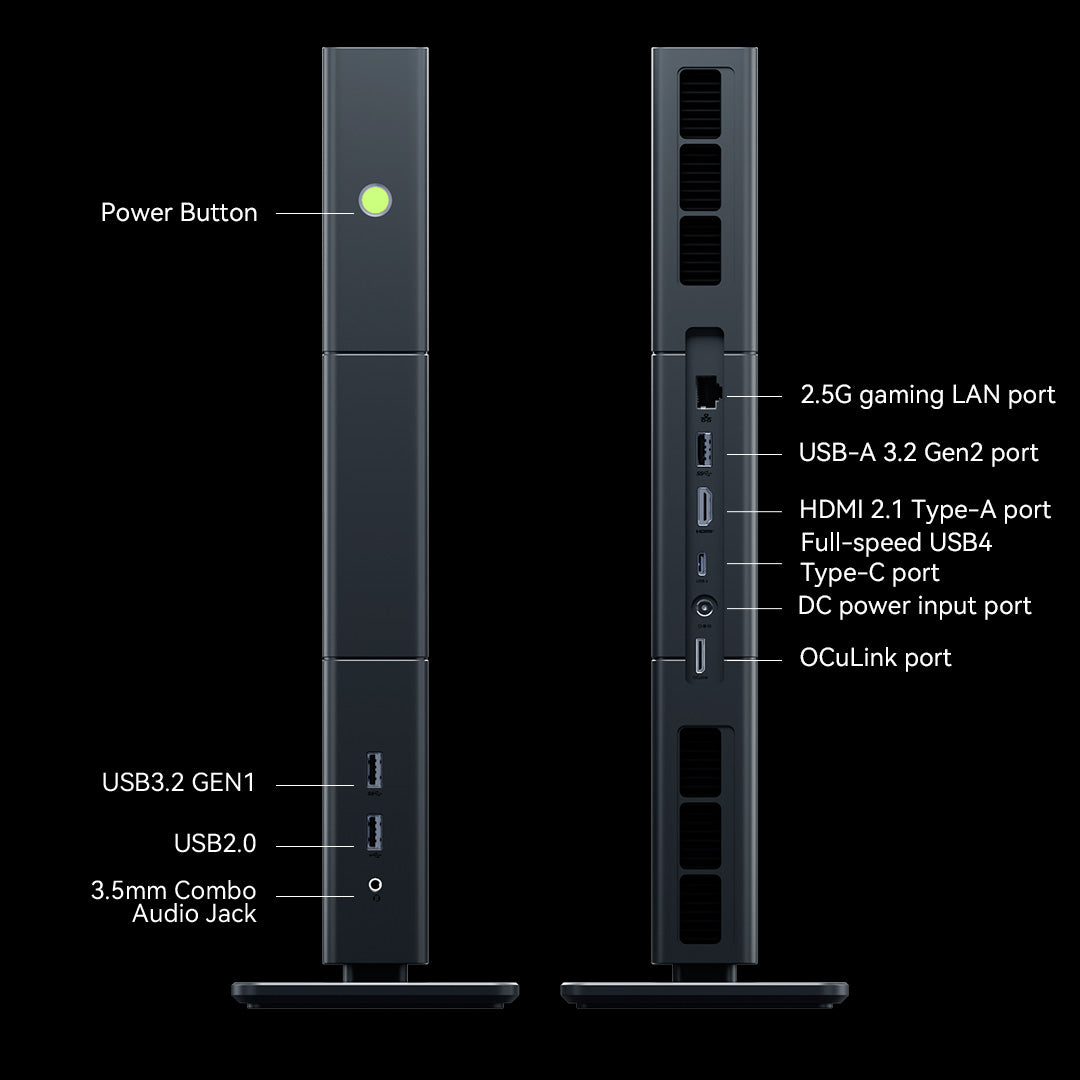

| Front Panel I/O |
• 1 × USB-A 3.2 Gen1 (5Gbps) • 1 × USB-A 2.0 (480Mbps) • 1 × 3.5mm Audio Combo Jack • 1 × Power Button with White LED |
| Rear Panel I/O |
• 1 × HDMI 2.1 (8K@60Hz) • 1 × OCuLink (PCIe Gen4 ×4) • 1 × USB-A 3.2 Gen2 (10Gbps) • 1 × USB4 Type-C (40Gbps / Video Output) • 1 × 2.5G RJ45 LAN (RTL8125BG) • 1 × DC IN (Ø5.5 × 2.5mm) |
| OS | Windows 11 Pro / Ubuntu / Linux |
| Chassis / Form Factor |
• Dimensions: 353 × 186 × 41 mm (Without Stand) • Weight: Approx. 2.3 kg • Color: Gray + Green • Full Metal CNC Chassis |

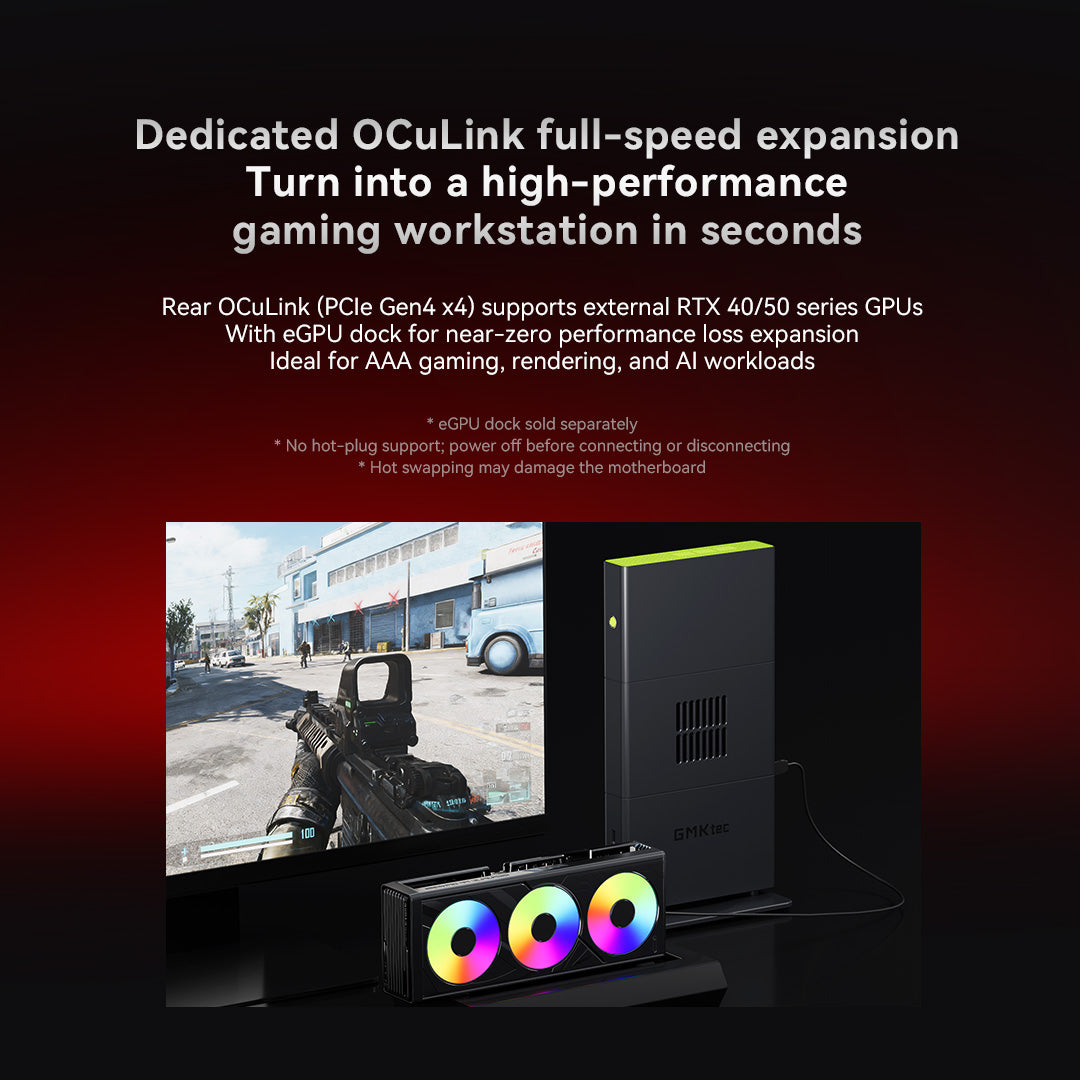

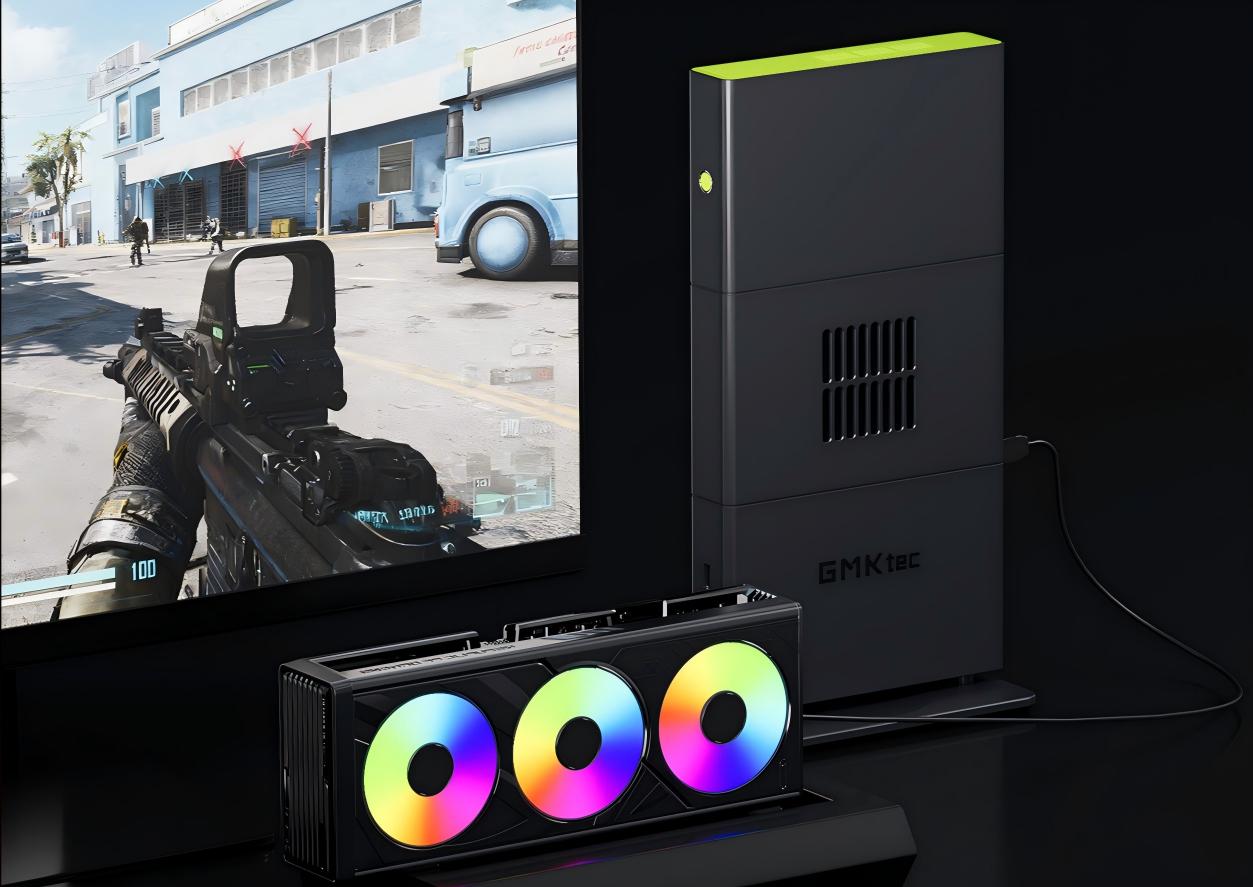

Dedicated OCuLink full-speed expansion
Rear OCuLink (PCIe Gen4 x4) supports external RTX 40/50 series GPUs
With eGPU dock for near-zero performance loss expansion
Ideal for AAA gaming, rendering, and AI workloads
Note：eGPU dock sold separately; No hot-plug support; power off before connecting or disconnecting; Hot swapping may damage the otherboard.

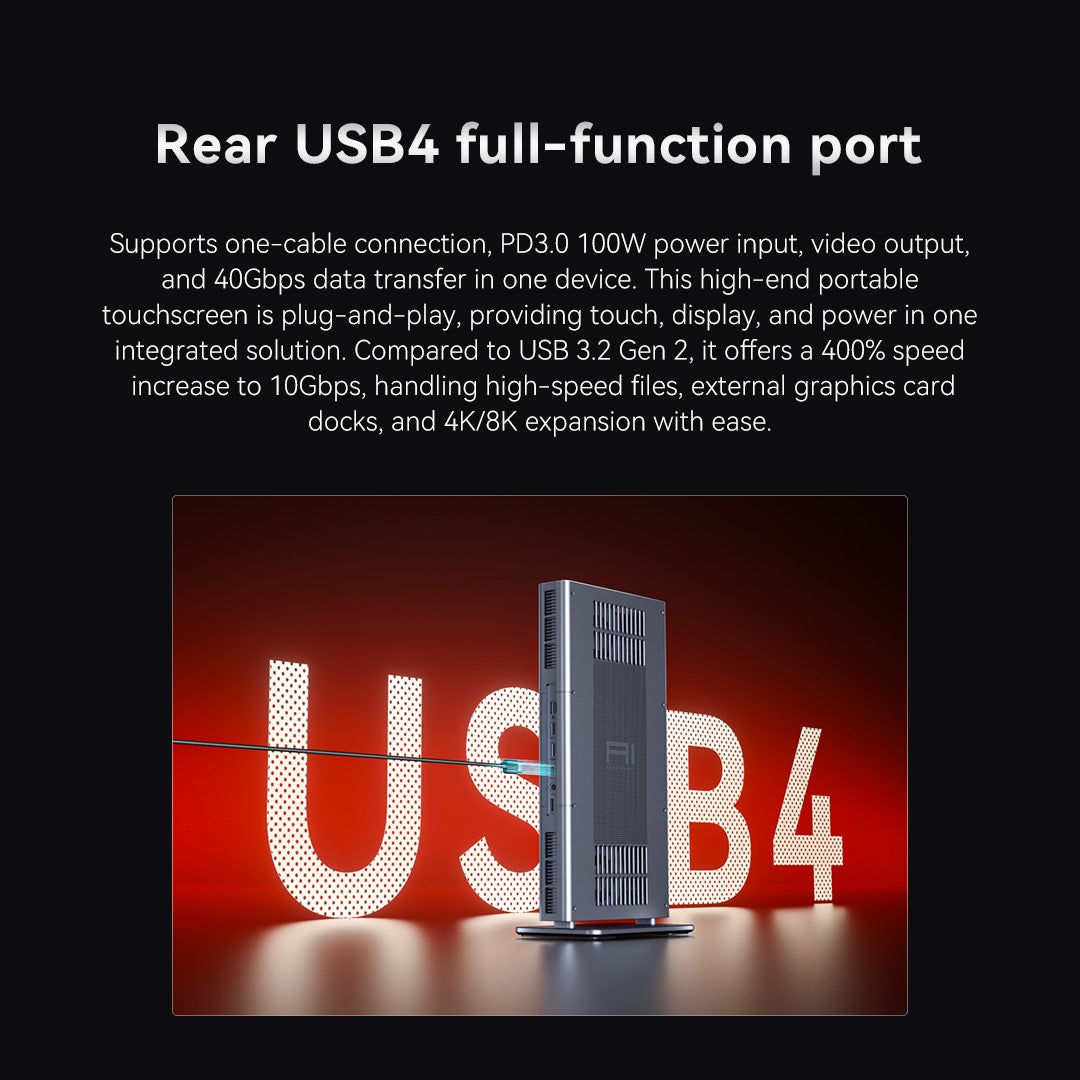

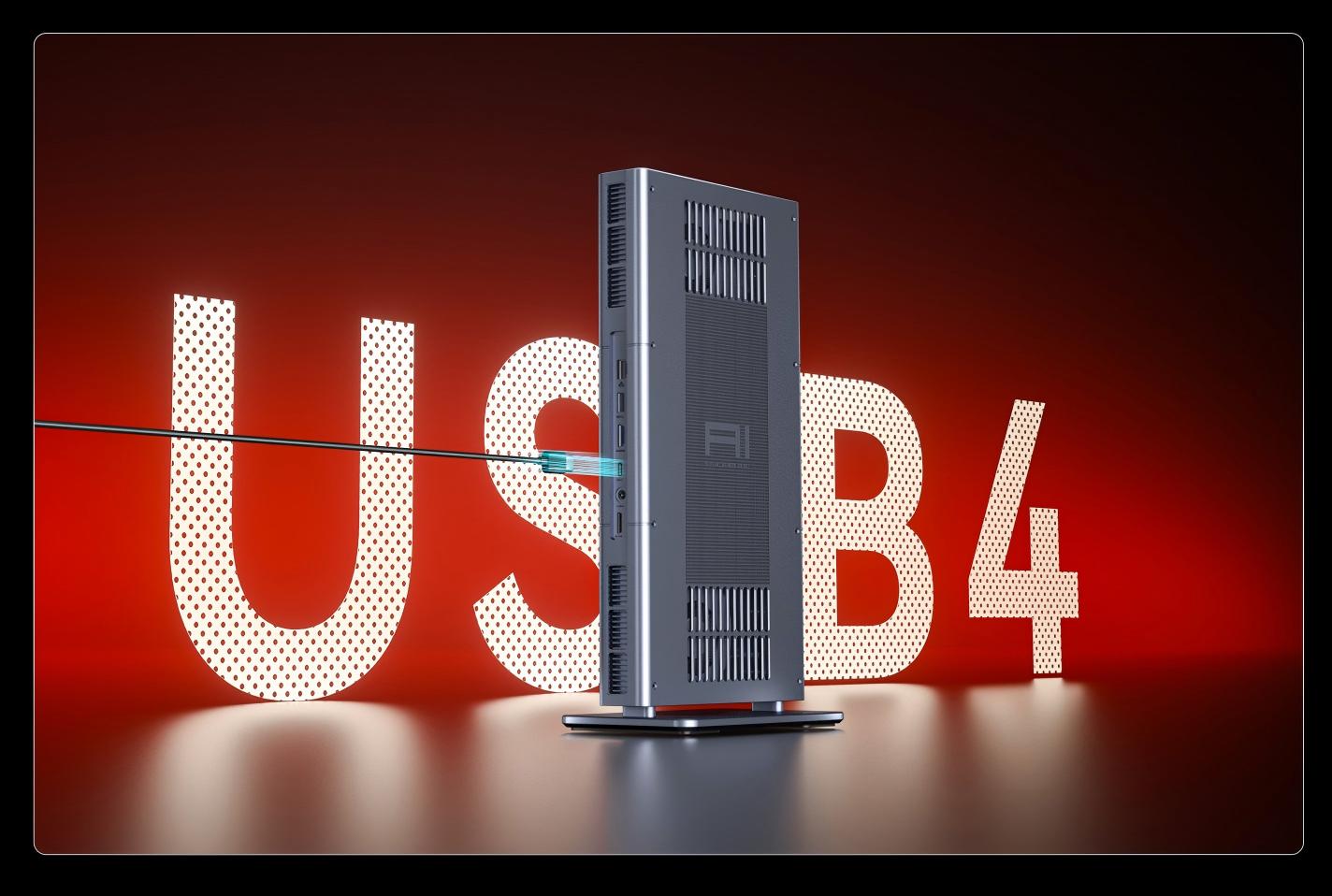

Rear USB4 full-function port
Supports one-cable connection, video output, and 40Gbps data transfer in one device.
This high-end portable solution is plug-and-play, providing touch, display, and power in one integrated system.
Compared to USB 3.2 Gen 2, it offers a 400% speed increase up to 10Gbps, handling high-speed files, external graphics card docks, and 4K/8K expansion with ease.

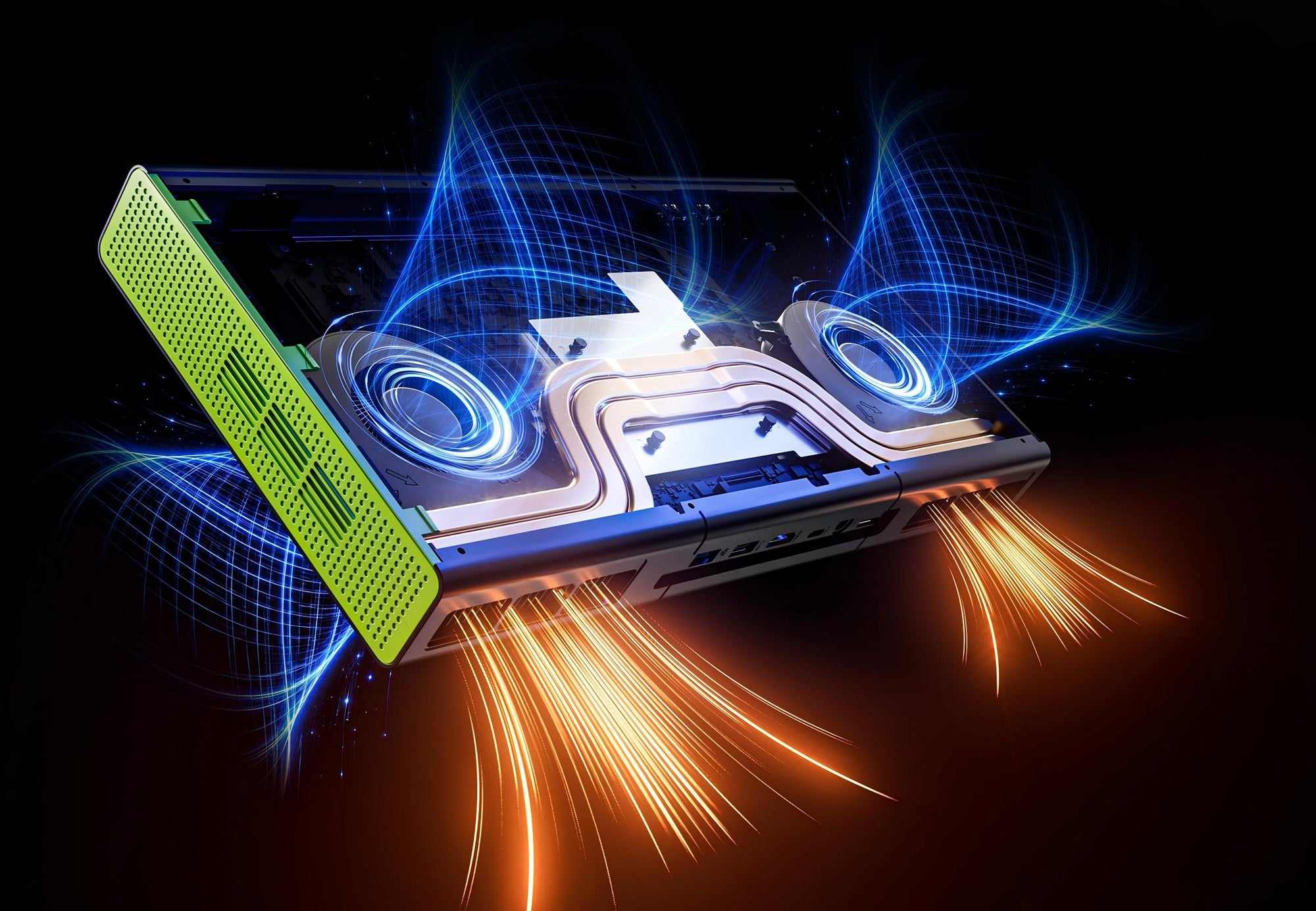

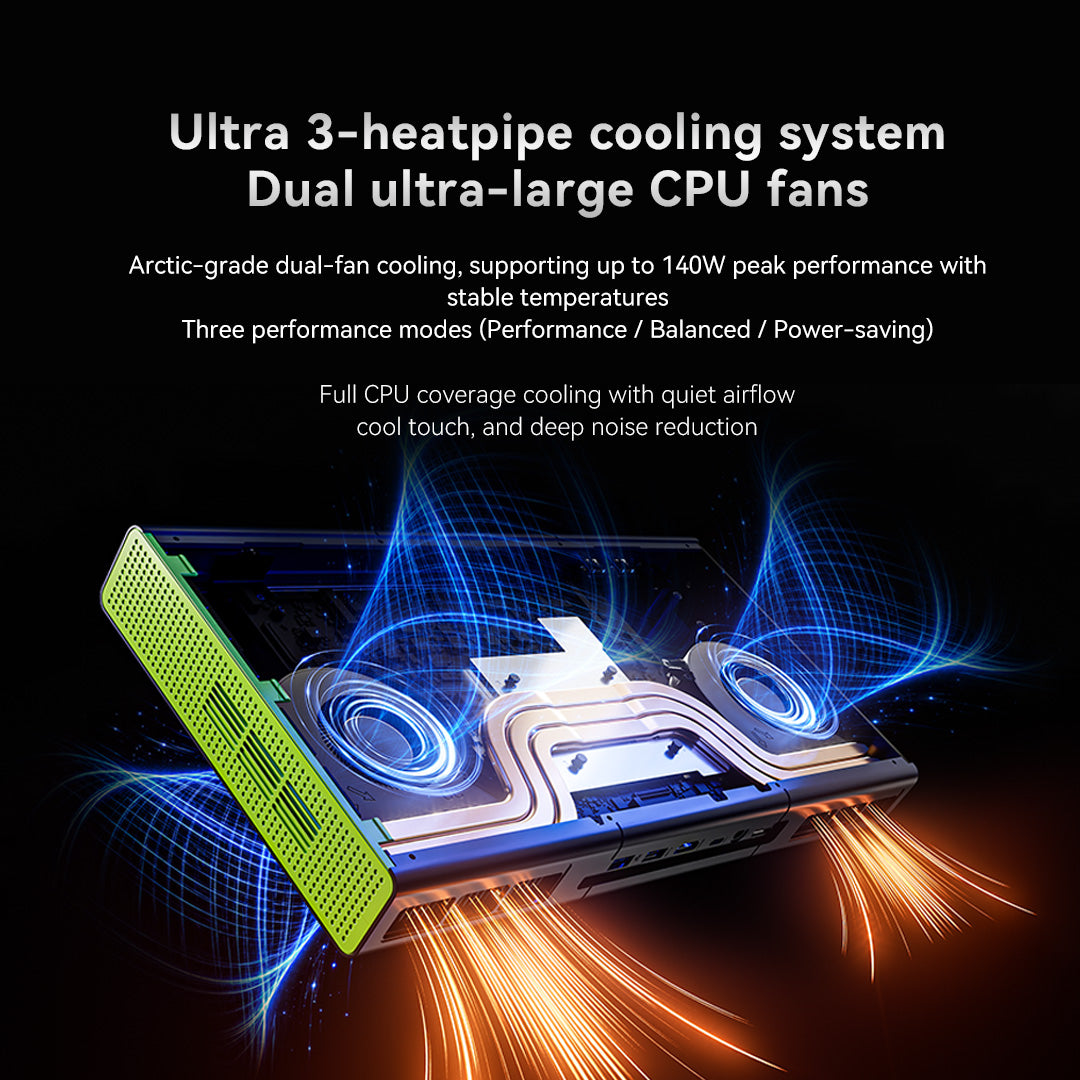

Ultra 3-heatpipe cooling systemDual ultra-large CPU fans
Arctic-grade dual-fan cooling, supporting up to 140W peak performance with stable temperatures

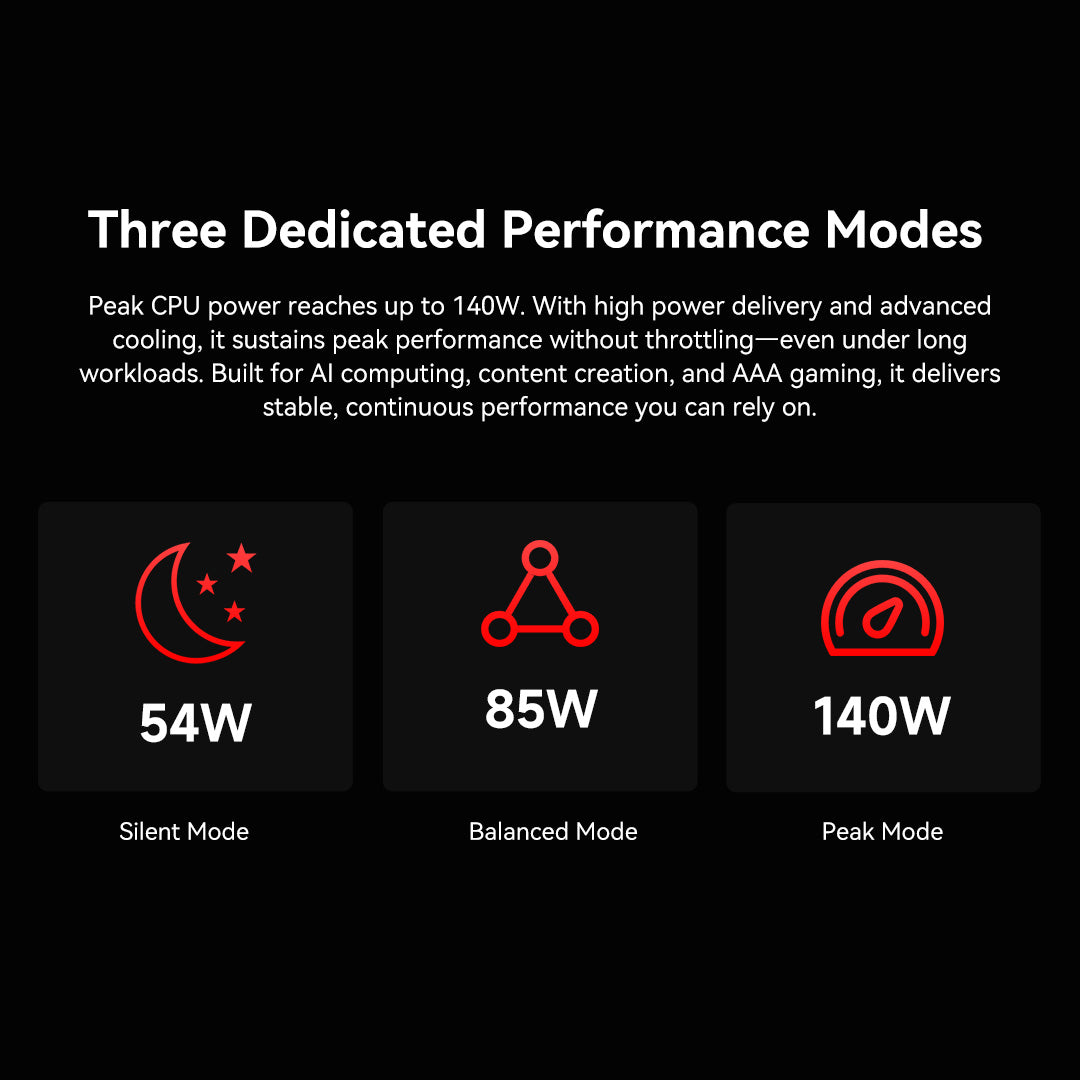

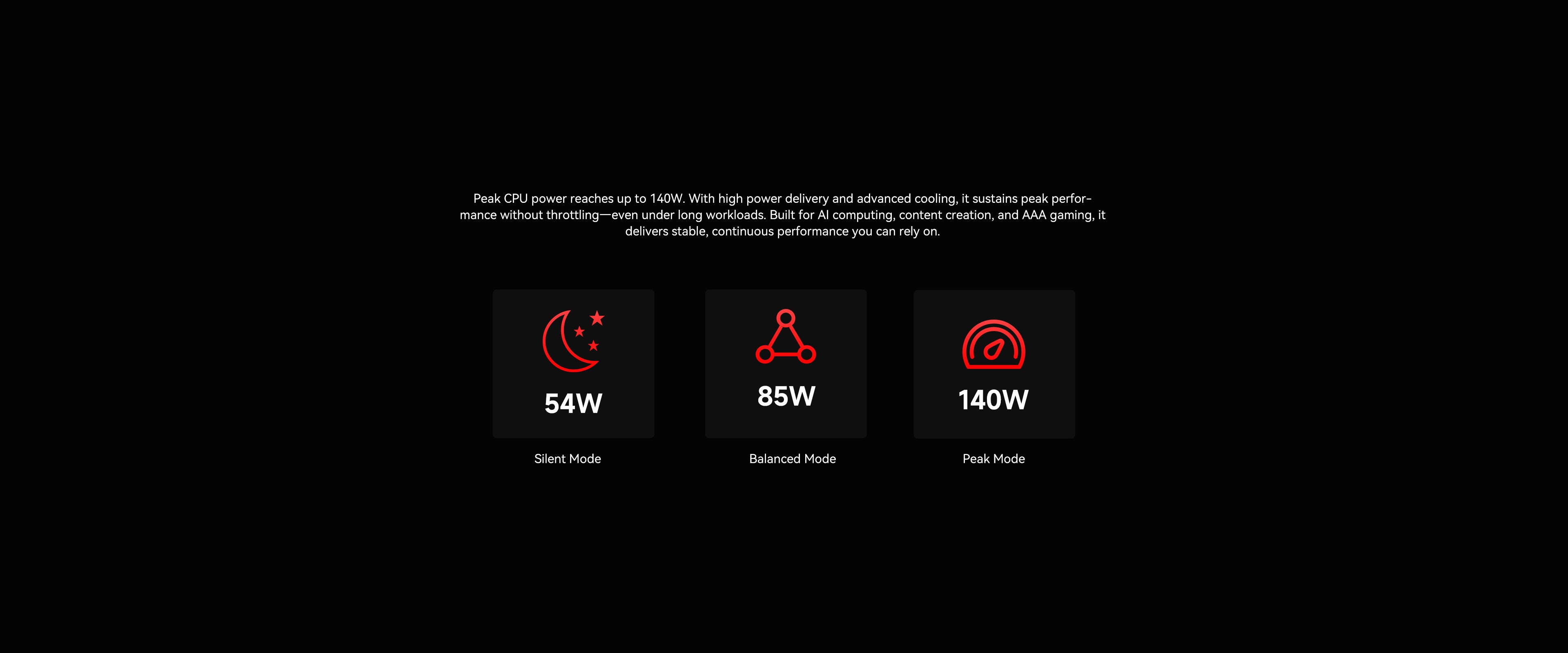

Three performance modes (Performance / Balanced / Power-saving)
Note: Full CPU coverage cooling with quiet airflow, cool touch, and noise reduction

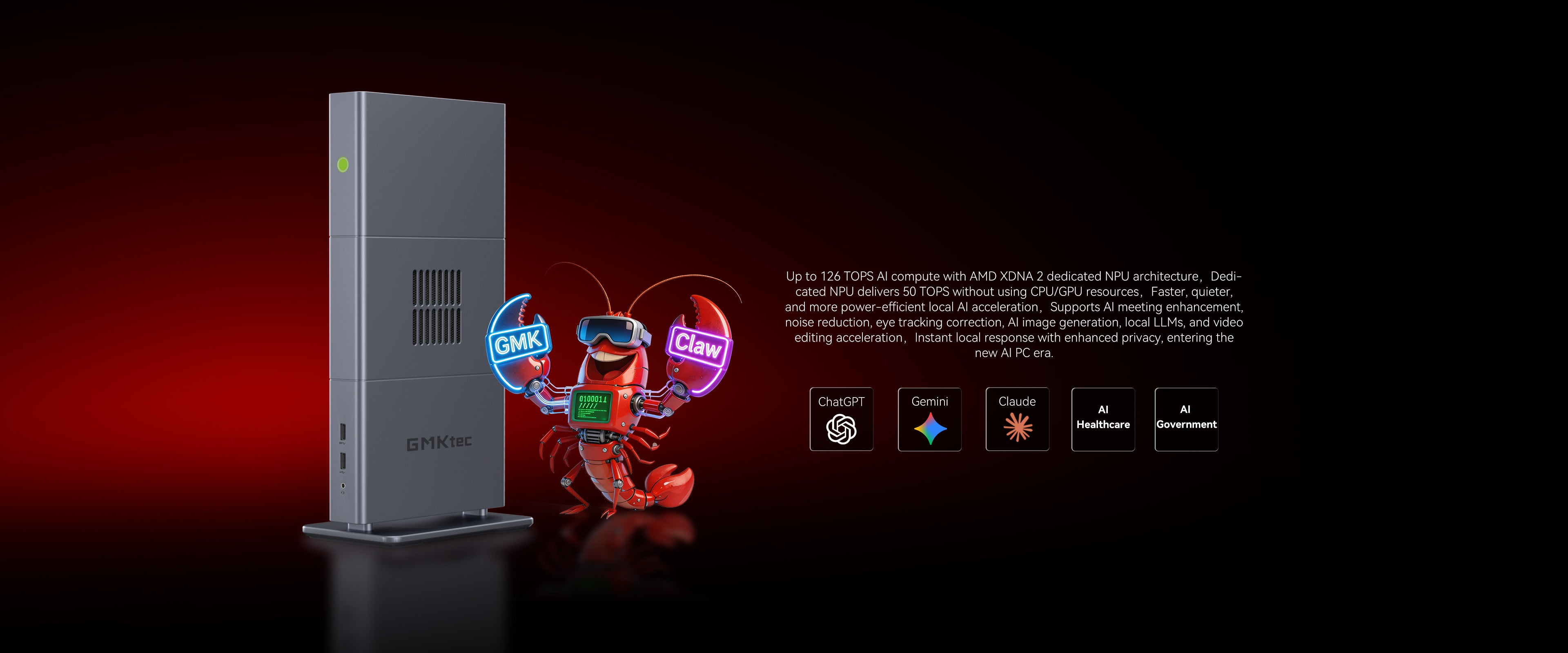

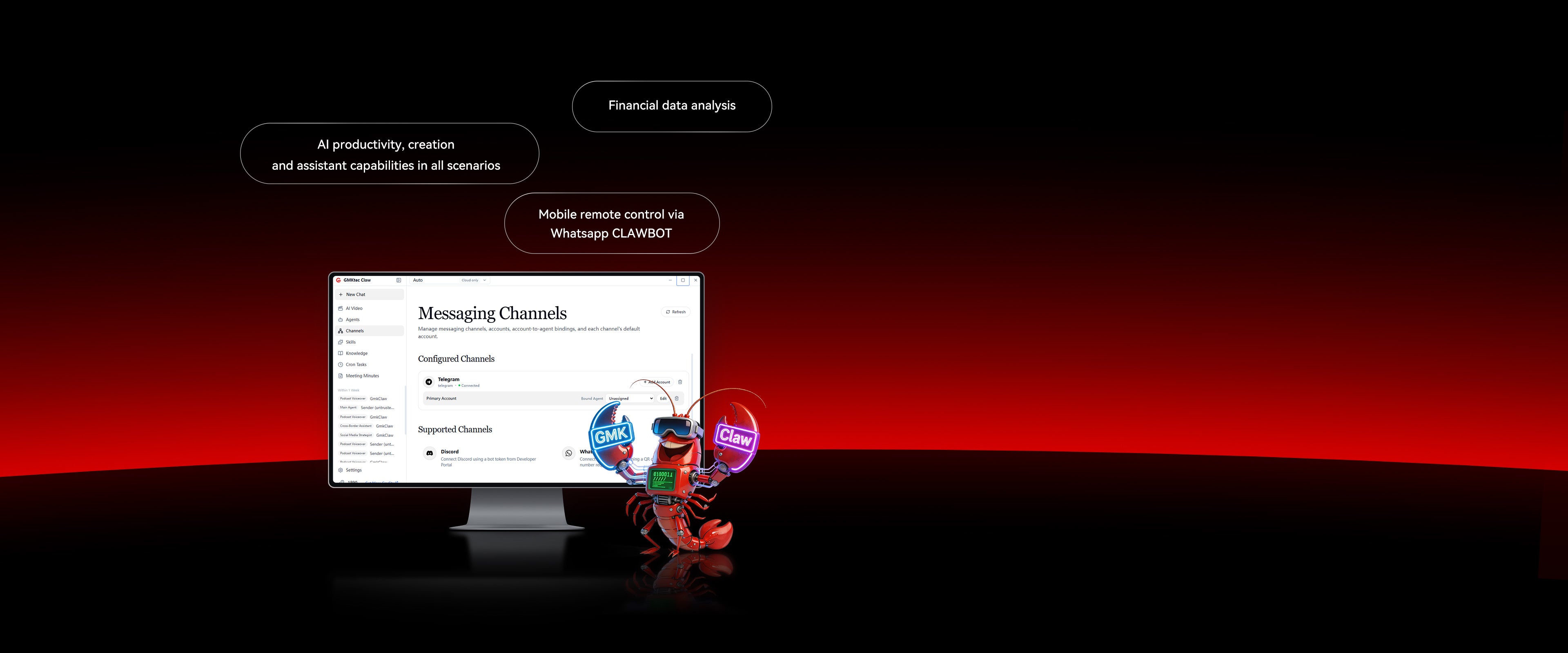

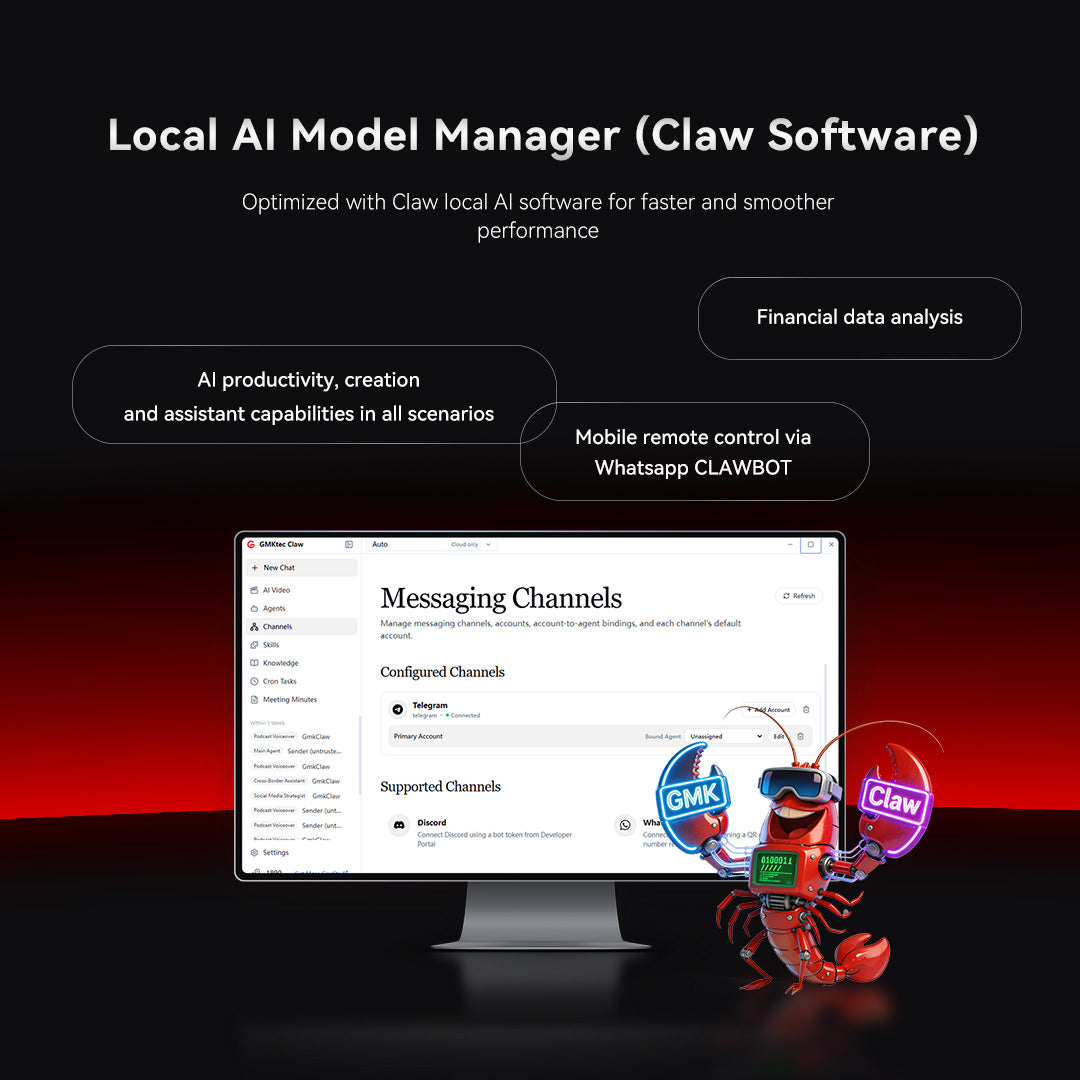

Ready-to-Use Local AI Models
Pre-installed GMKtec Claw system with one-click deployment, no coding or setup required. Even beginners can easily deploy local AI agents — ready out of the box. Supports seamless switching between cloud and local AI models. Compatible with GPT, Qwen, DeepSeek and other major LLMs.

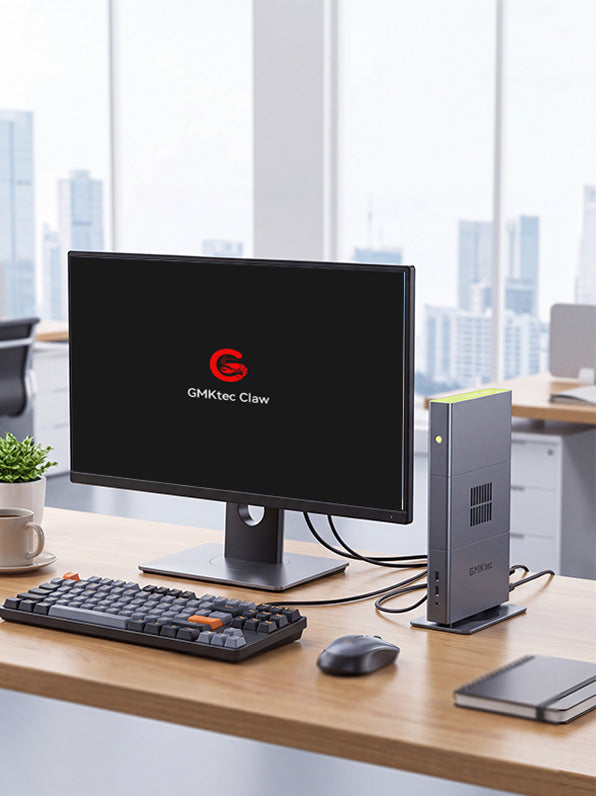

AI Application Scenarios
One-click AI deployment for everyday tasks

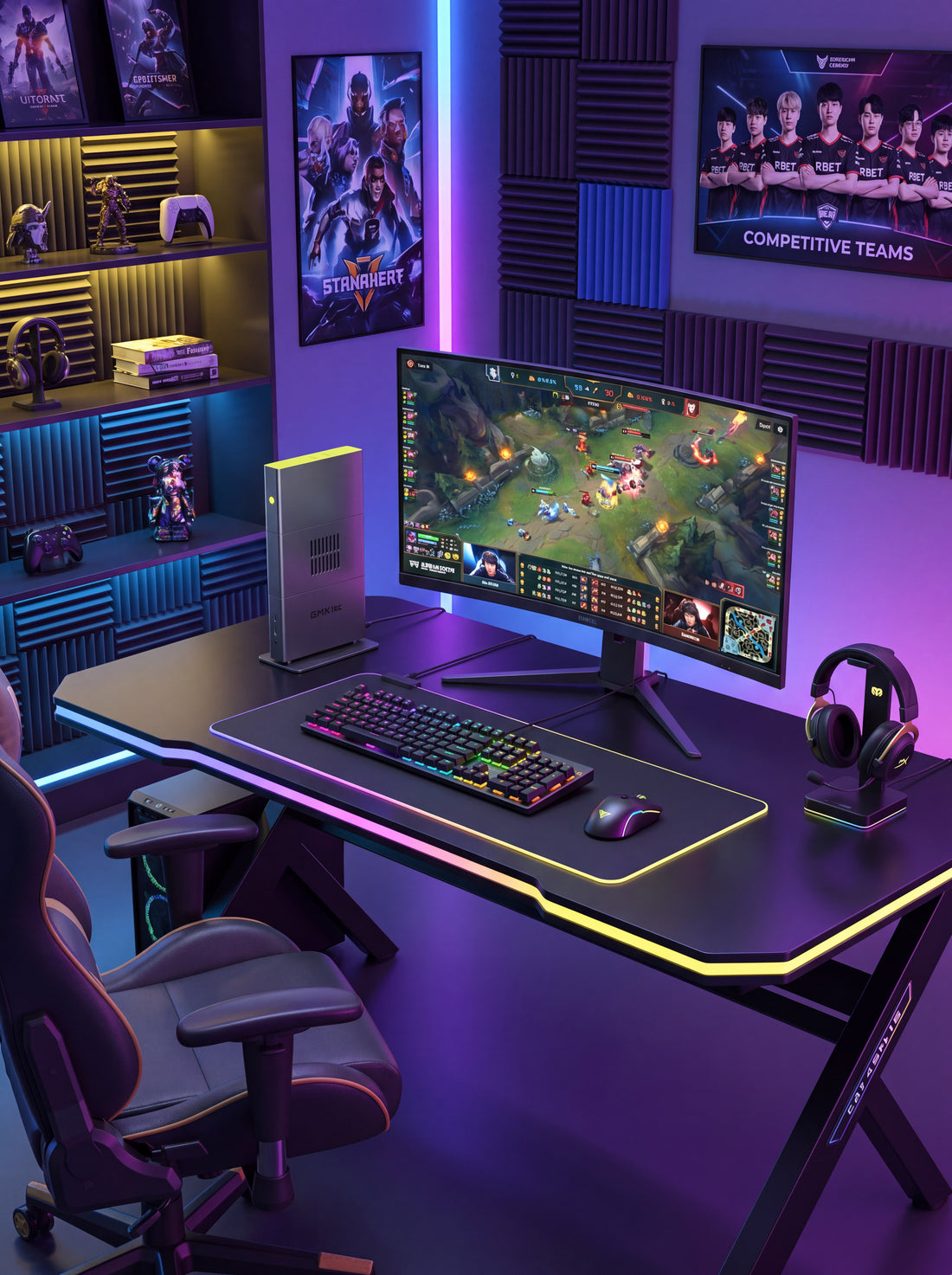

Enhanced Gaming Performance
Supports RTX-level AI + gaming optimization
Lightweight Enterprise Server
Stable 24/7 business deployment

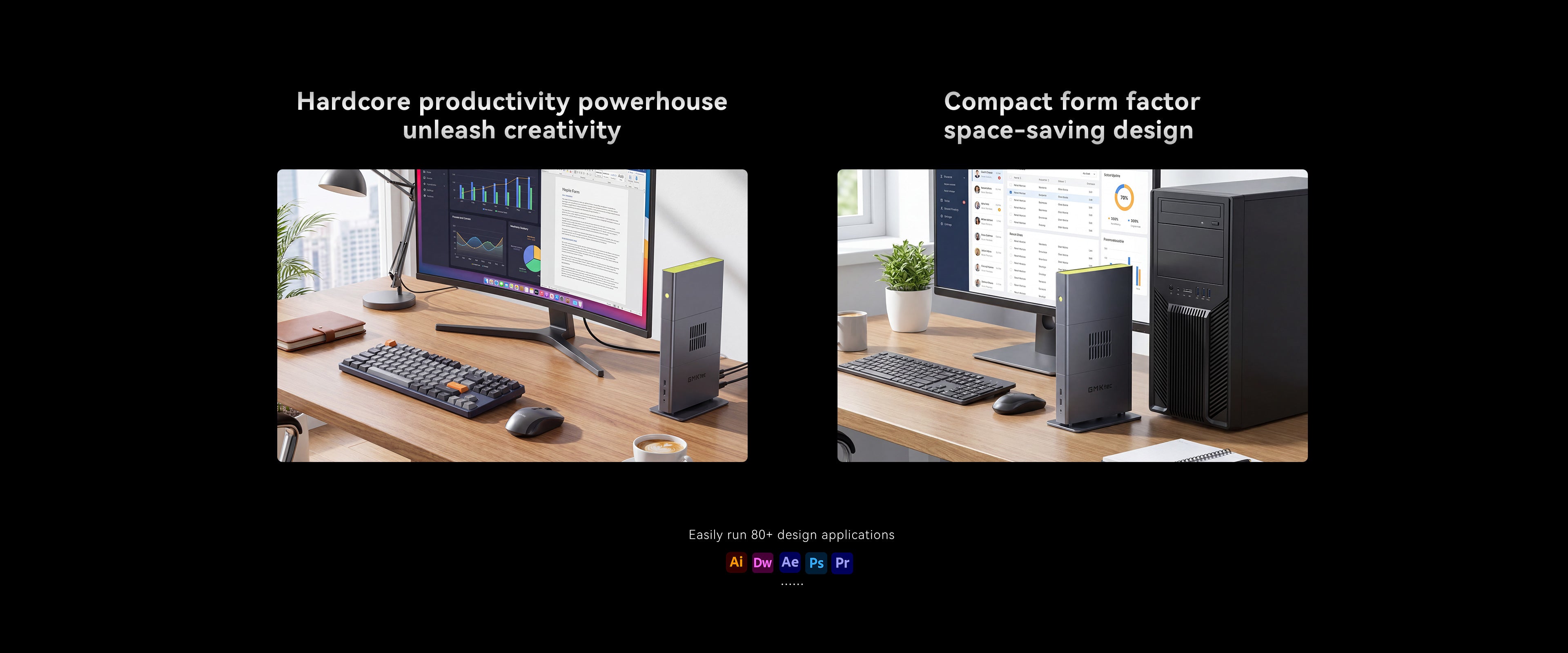

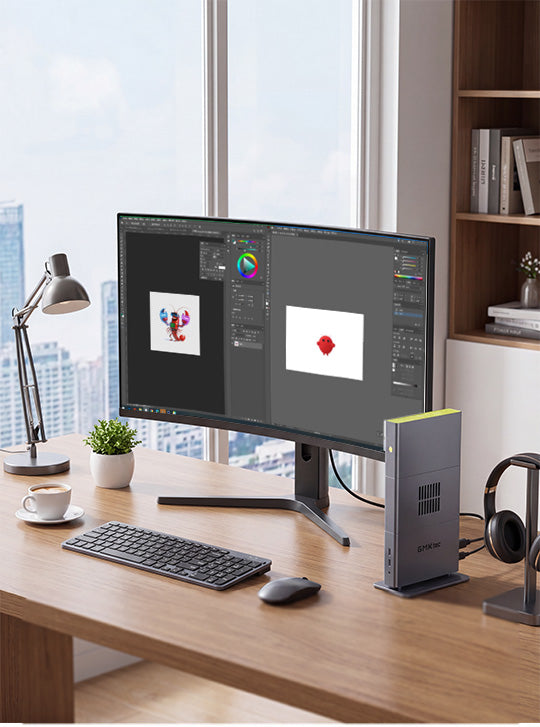

Creative Design Workstation
AI-powered image and video creation workflow

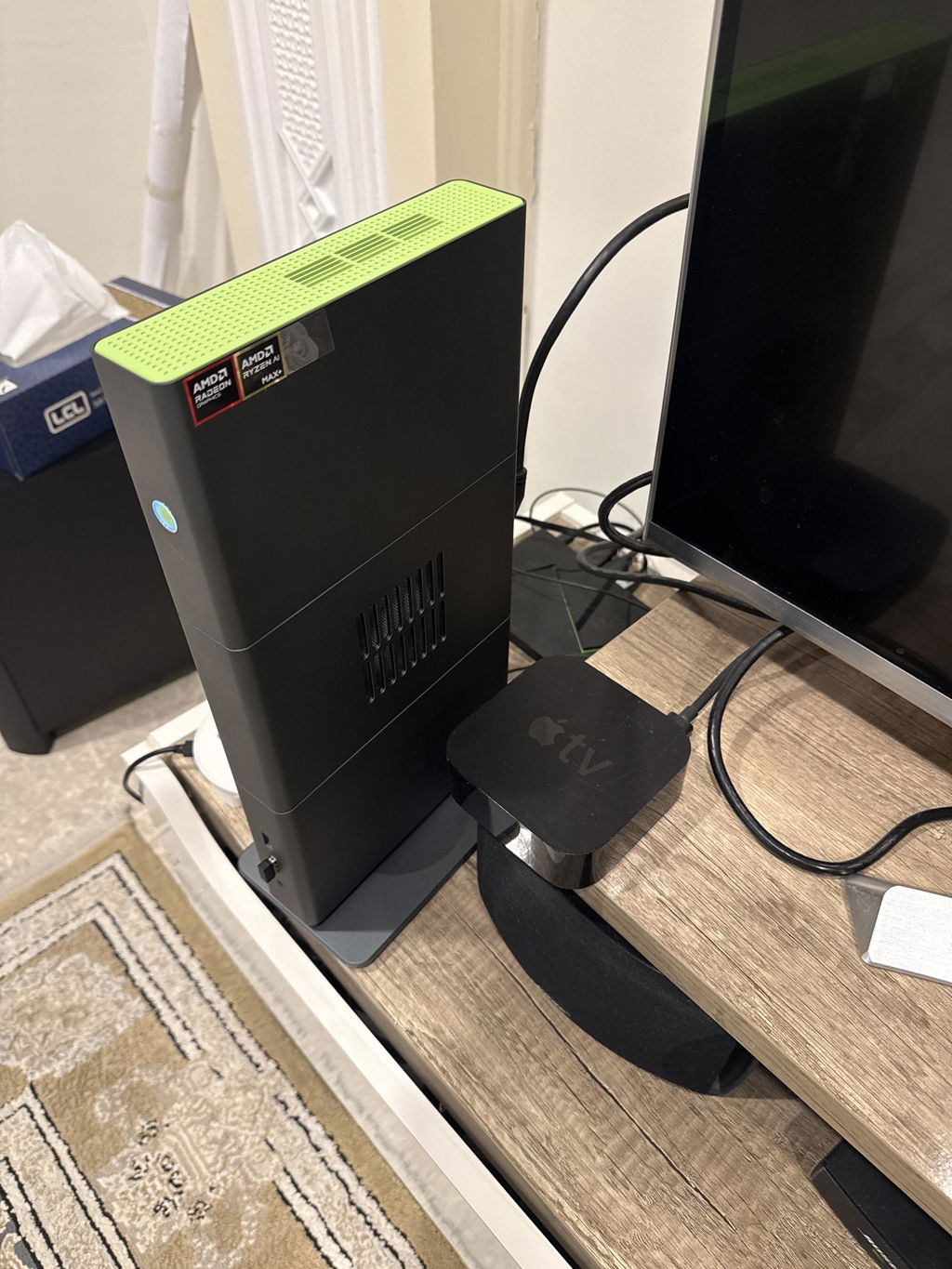

I have been using it for 2 weeks now, this is an amazing device, well worth it. It complements my home lab extremely well. With regards to build quality it’s amazing, the buying experience from GMKtec is excellent, they were responsive and packaging was well done. Delivery was fast actually 7 days before expected date. Highly recommend
Arrived within 2 weeks. Yan was 10/10. Bought 2.
I love it, good design and no heating issue
The GMKtec EVO X3 is an amazing "mini pc" it is only mini in name, capabilities wise it is a monster. My EVO X3 can have the nvidia 5090 for breakfast.
It's a very nice machine. So far, so good. I hope to more with it soon.
Best buy ever

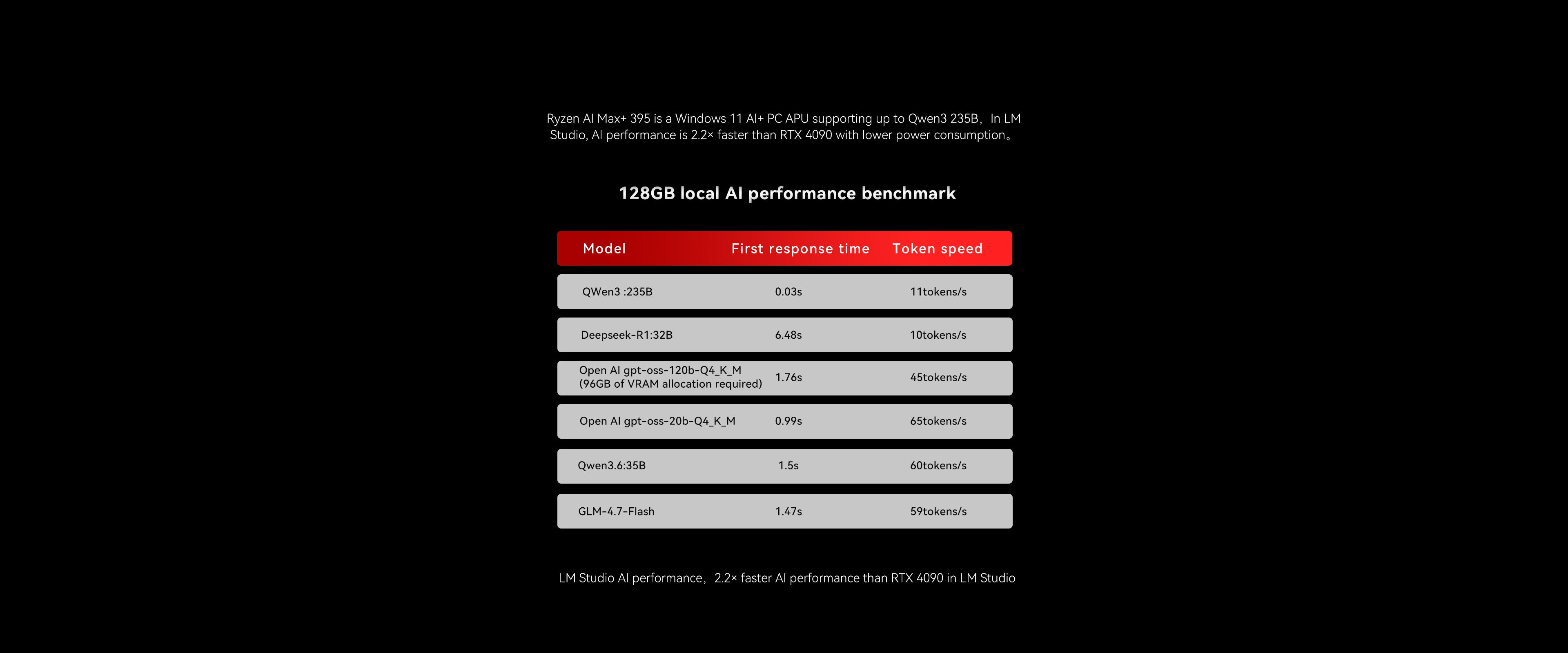

My 100 token per sec for 30B models is smiling 😁
