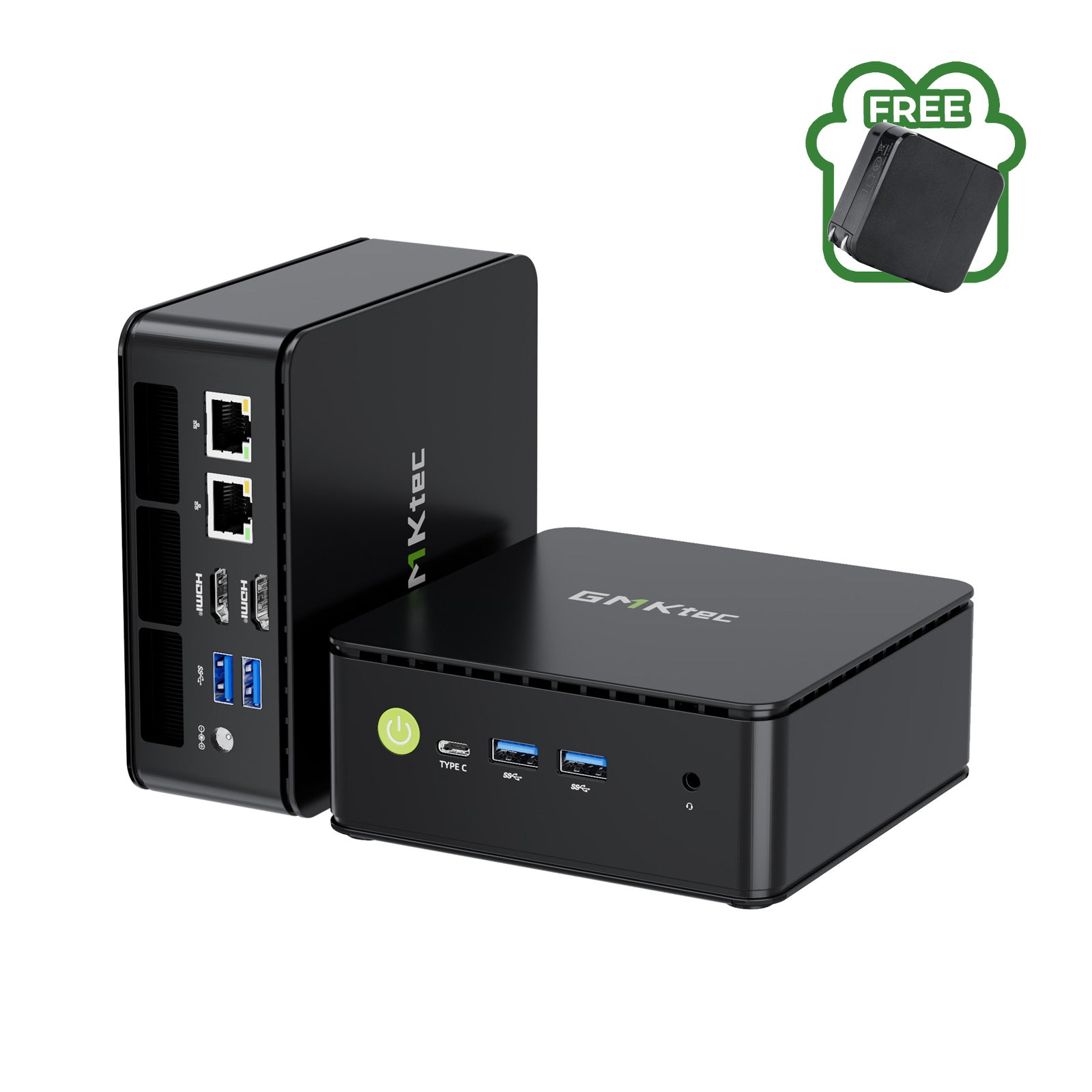

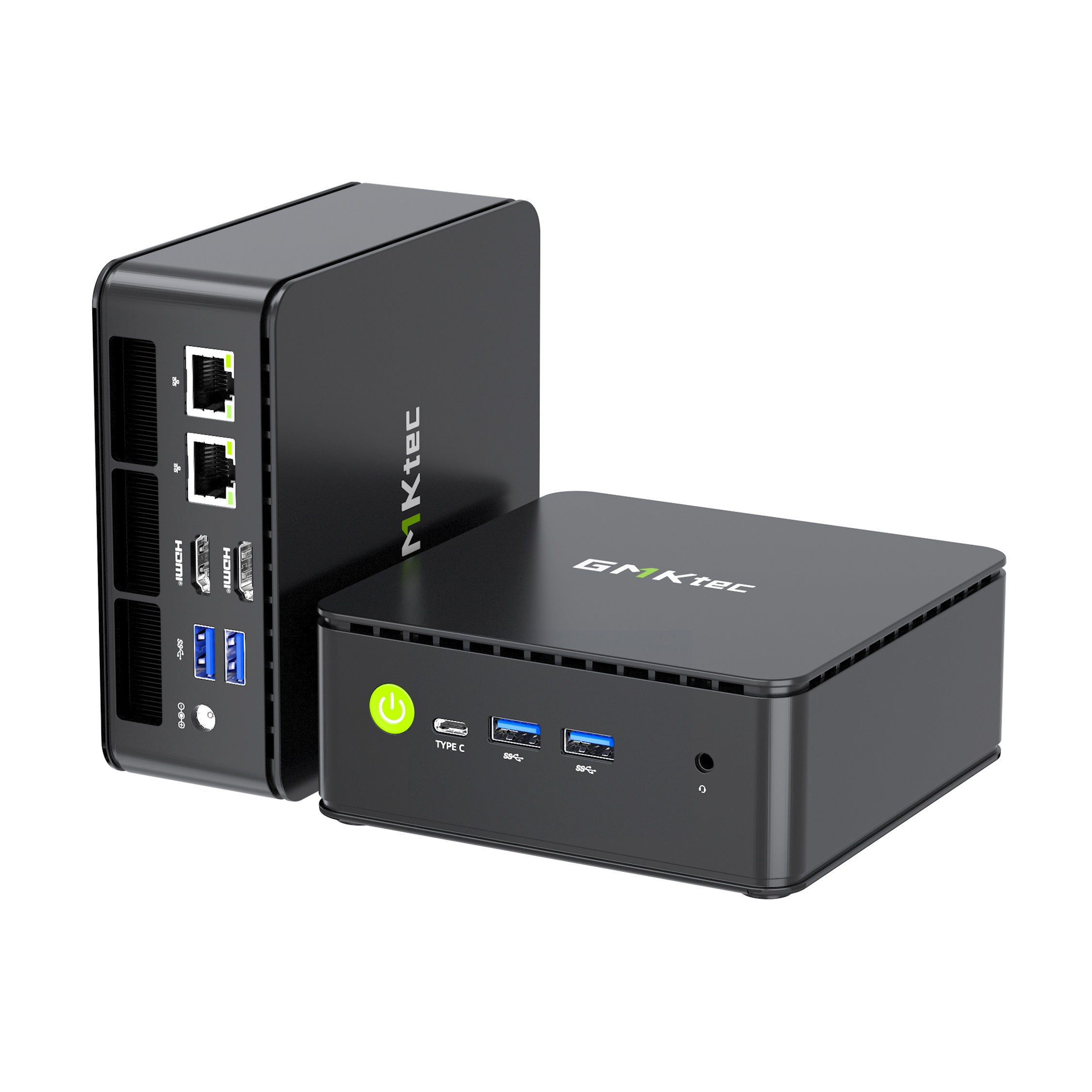

GMKtec G11 AMD Ryzen™ Embedded R2514 Mini PC
GMKtec G11 AMD Ryzen™ Embedded R2514 Mini PC
Regular price
$499.99
Sale price
$499.99
Regular price
$489.99
Couldn't load pickup availability
Payment & Security
Payment methods
| Model |
Model Number: G11 PLUS Model Name: NucBox G11 PLUS Brand / Manufacturer: GMKtec |
|---|---|
| CPU |

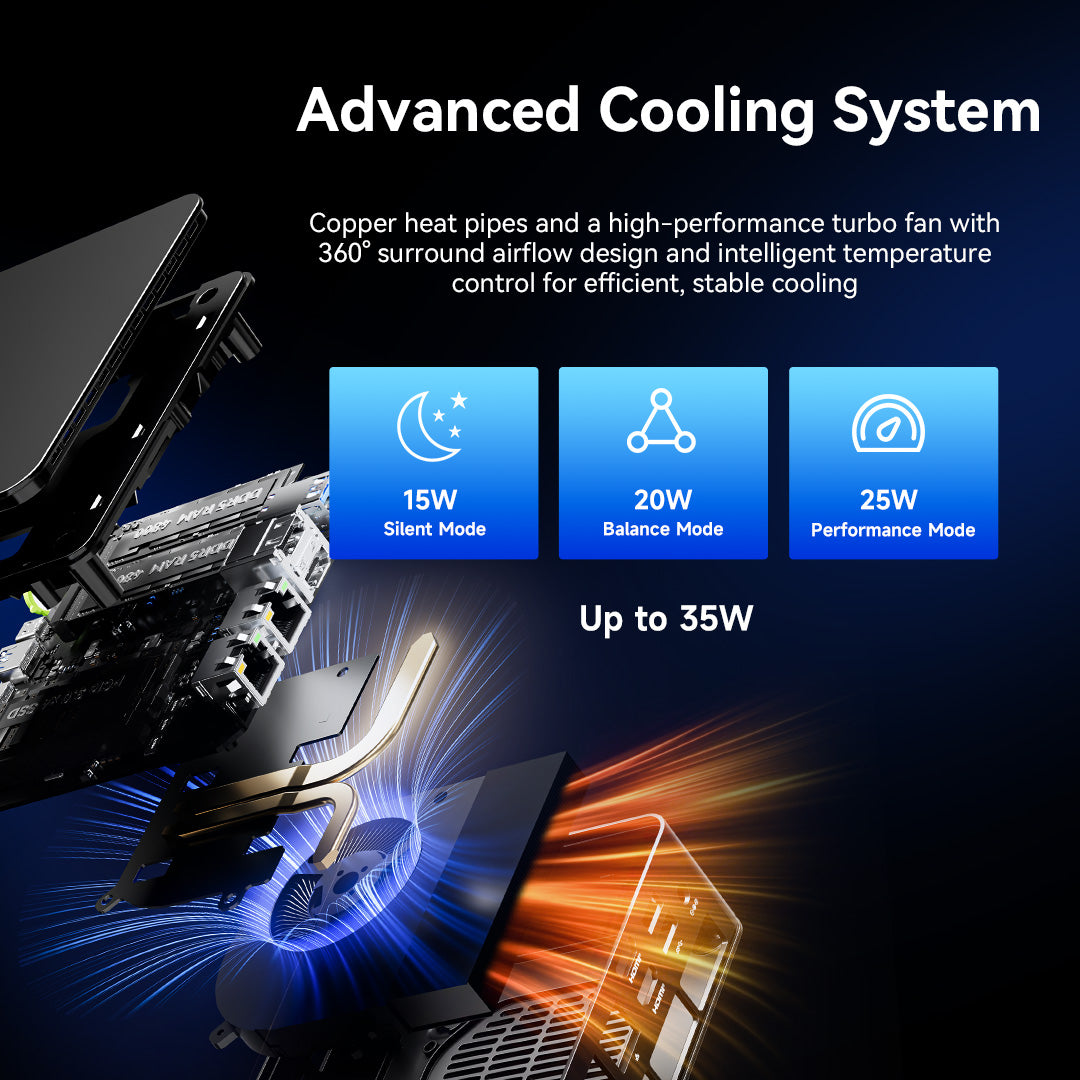

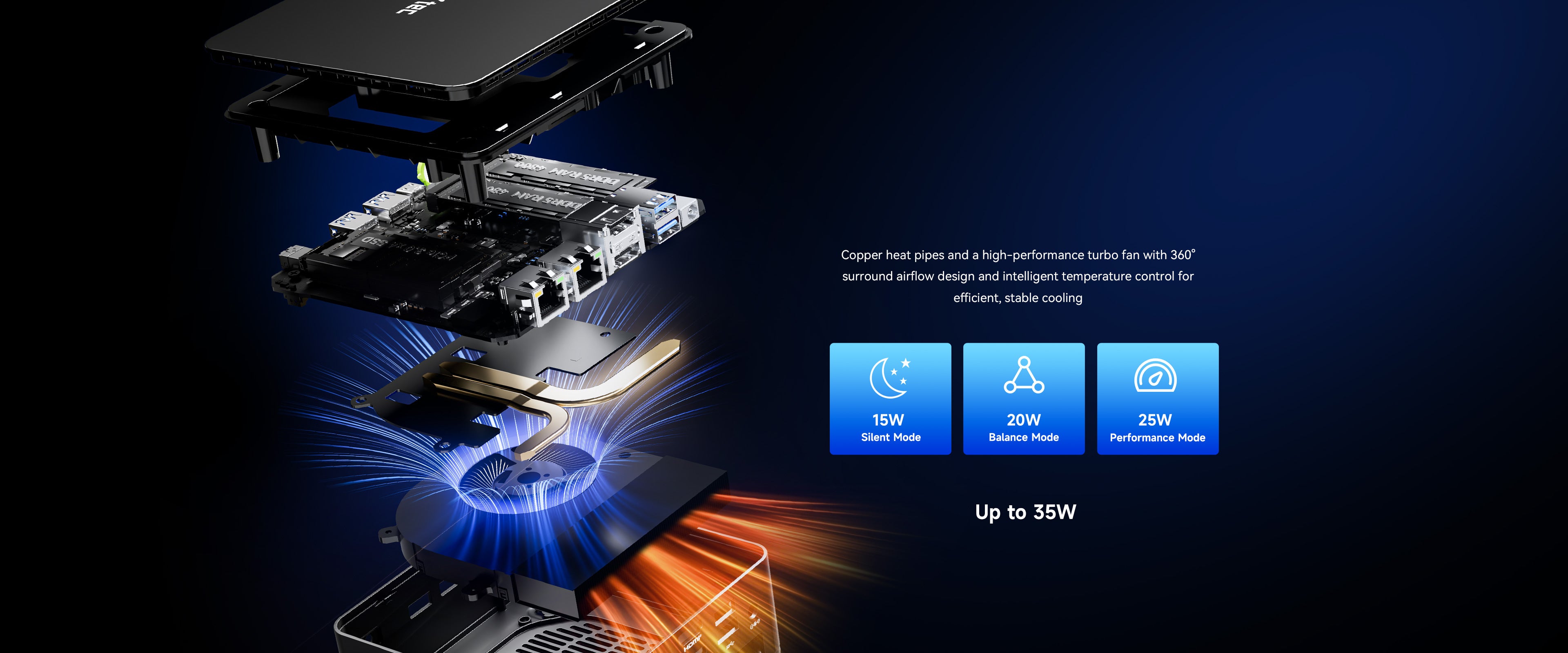

AMD Ryzen™ 5 3500U AMD Ryzen™ 3000 Series 4 Cores / 8 Threads Base Clock: 2.1 GHz Max Boost Clock: Up to 3.7 GHz 4MB L3 Cache 12nm Process Power Modes: Silent Mode: 15W Balanced Mode: 20W Performance Mode: 25W, Peak up to 35W Single Heatpipe and Single Silent Fan Cooling |
| CPU Package | FP5 Package |
| GPU |
AMD Radeon™ Vega 8 Graphics 8 Graphics Cores Graphics Frequency: Up to 1200 MHz |

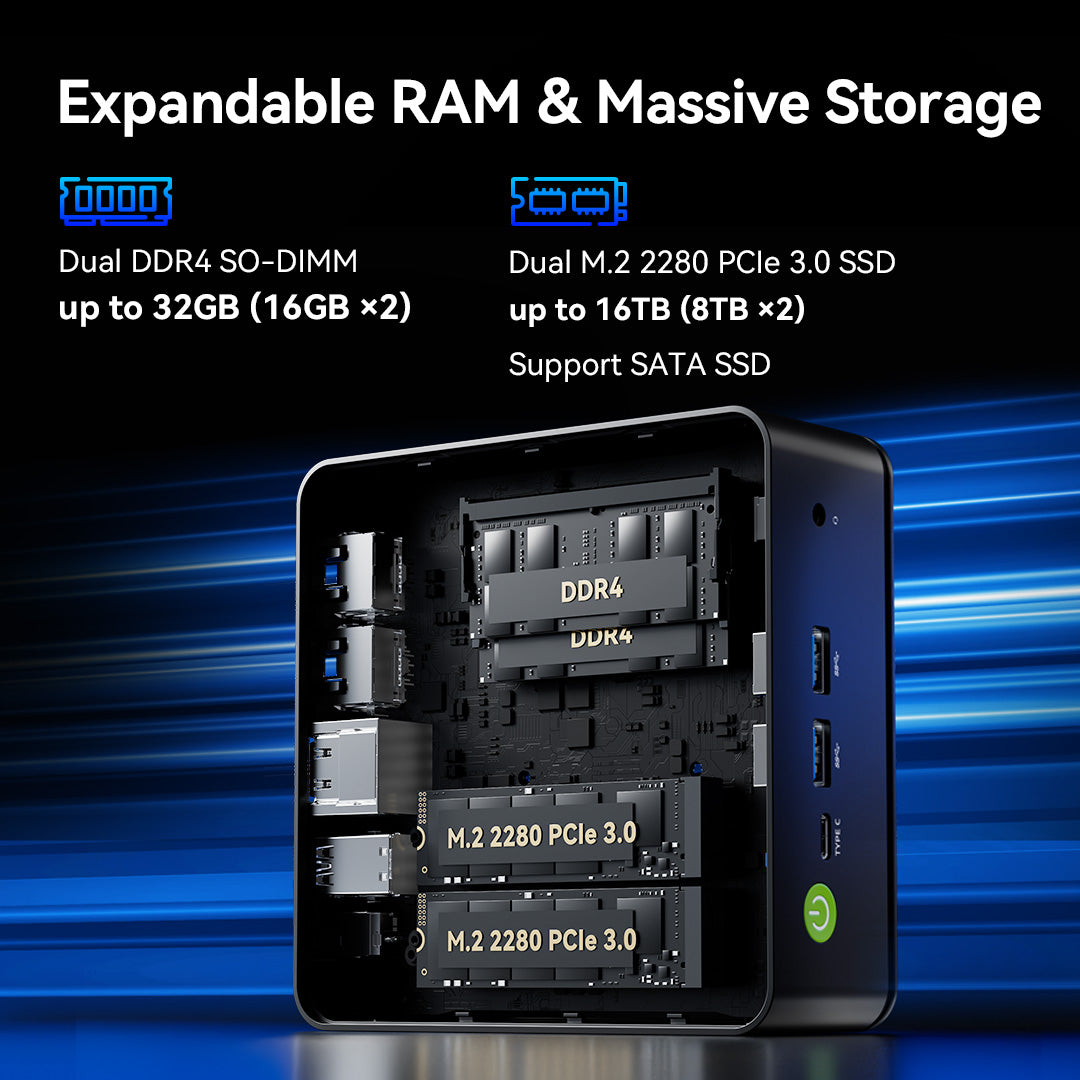

| Memory |

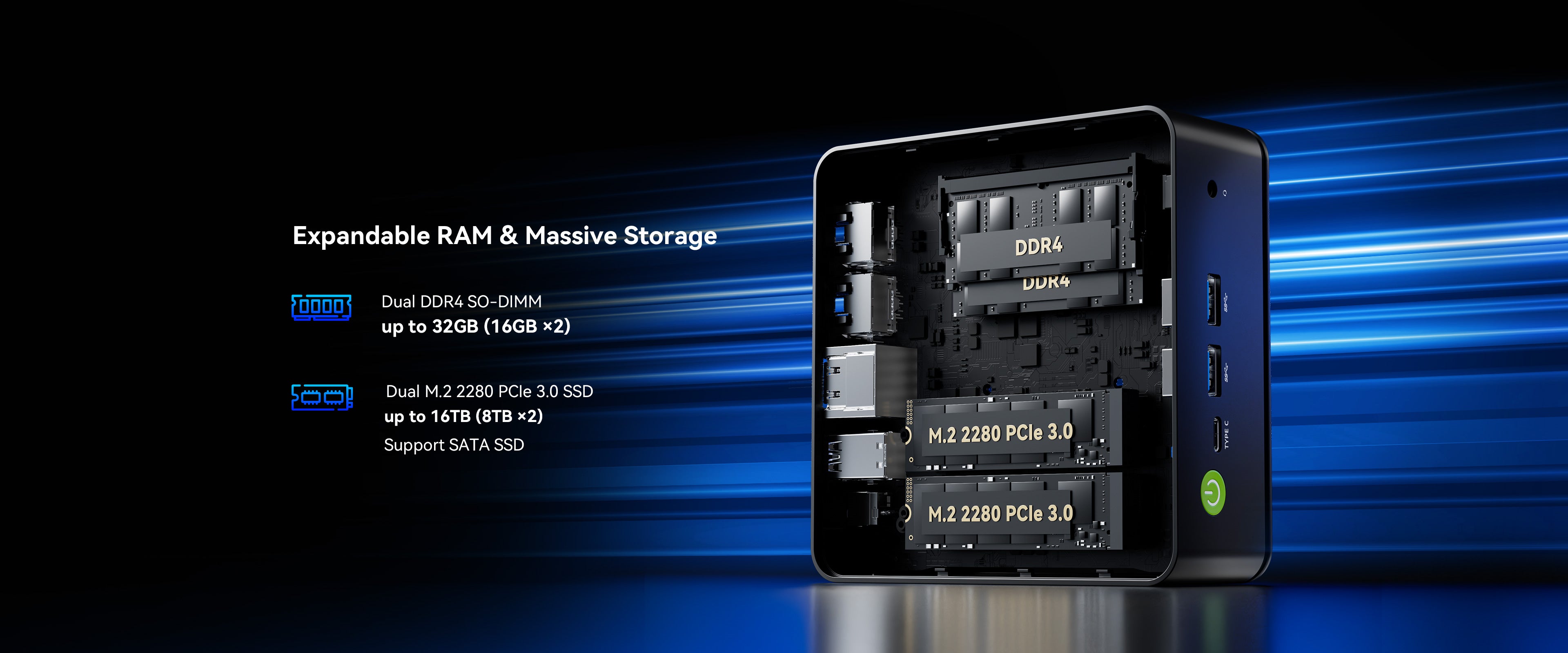

2× DDR4 SO-DIMM Slots 16GB / 32GB Configurations Maximum Capacity: 32GB (16GB×2) |
| Storage |
2× M.2 2280 SSD Slots 256GB / 512GB / 1TB Configurations Maximum Expandable Storage: Up to 16TB (8TB×2) • 1× M.2 2280 Key-M, NVMe PCIe 3.0×4 • 1× M.2 2280 Key-M, SATA / NVMe PCIe 3.0×4 |
| Video Output |

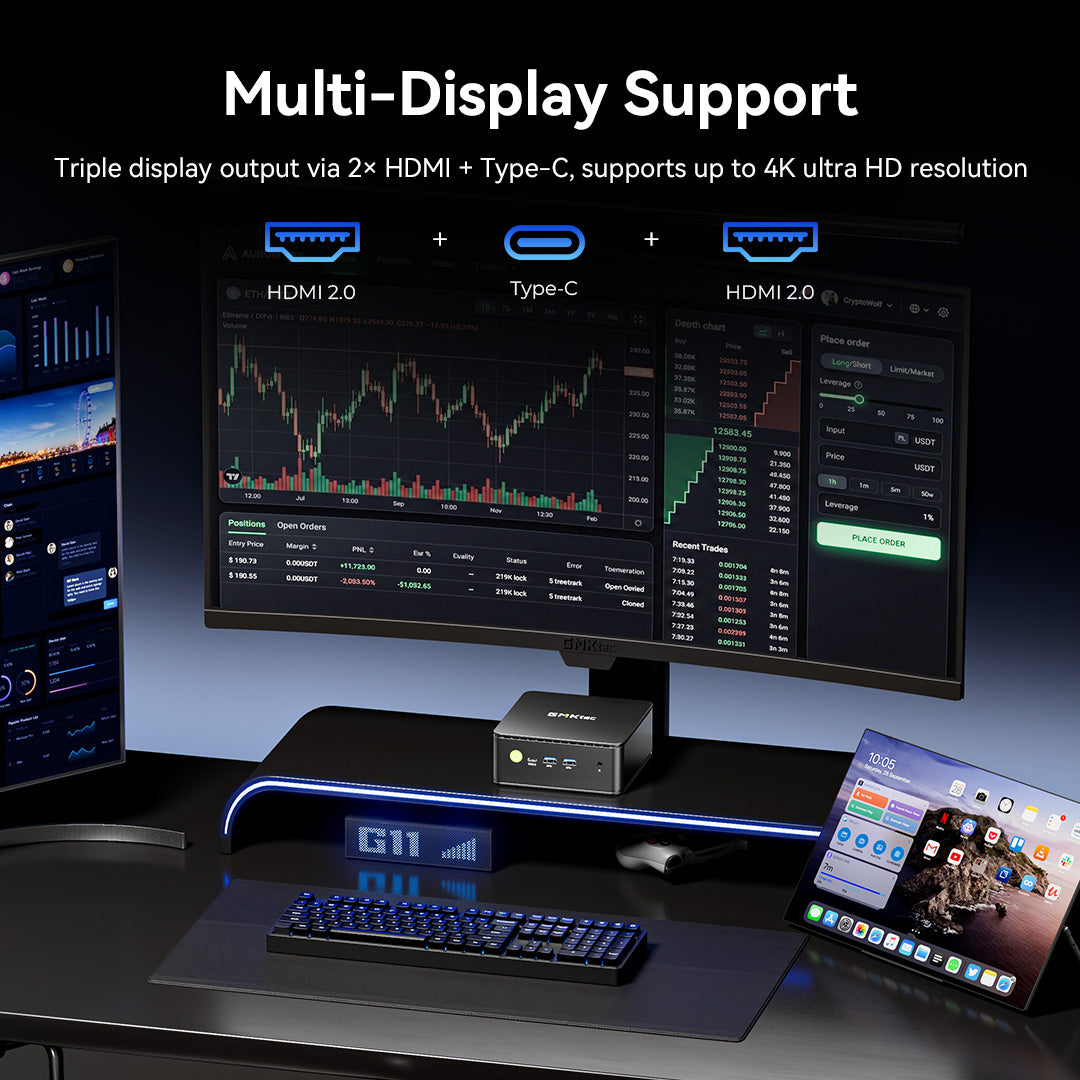

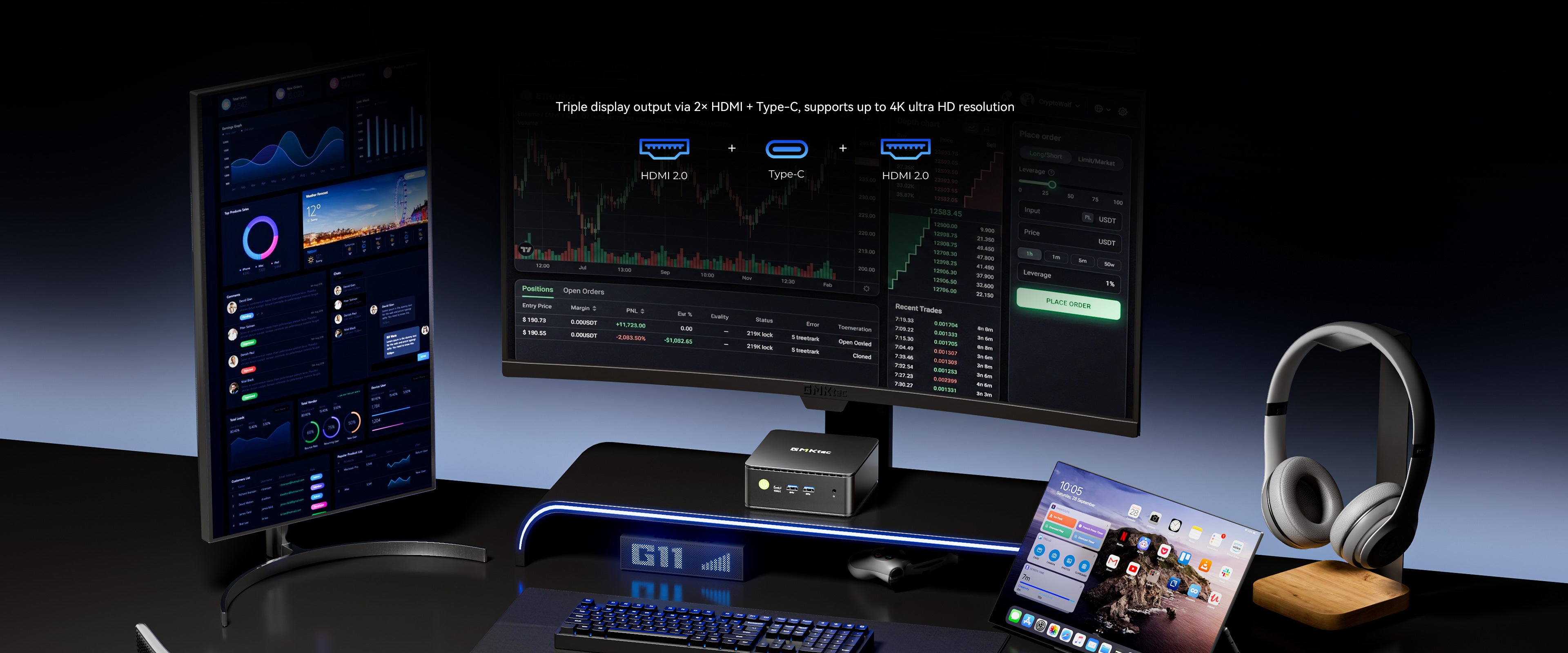

Triple-Screen Display Output 2× HDMI 2.0 + 1× USB Type-C Supports up to 4K@60Hz |
| Wireless Network |
Wi-Fi 6E RZ616 Wireless Module IEEE 802.11 a/b/g/n/ac/ax Wireless Speed: Up to 2.4Gbps Bluetooth 5.2 |
| Ethernet |
2× 2.5Gbps RJ45 LAN Realtek RTL8125BG Network Controller |

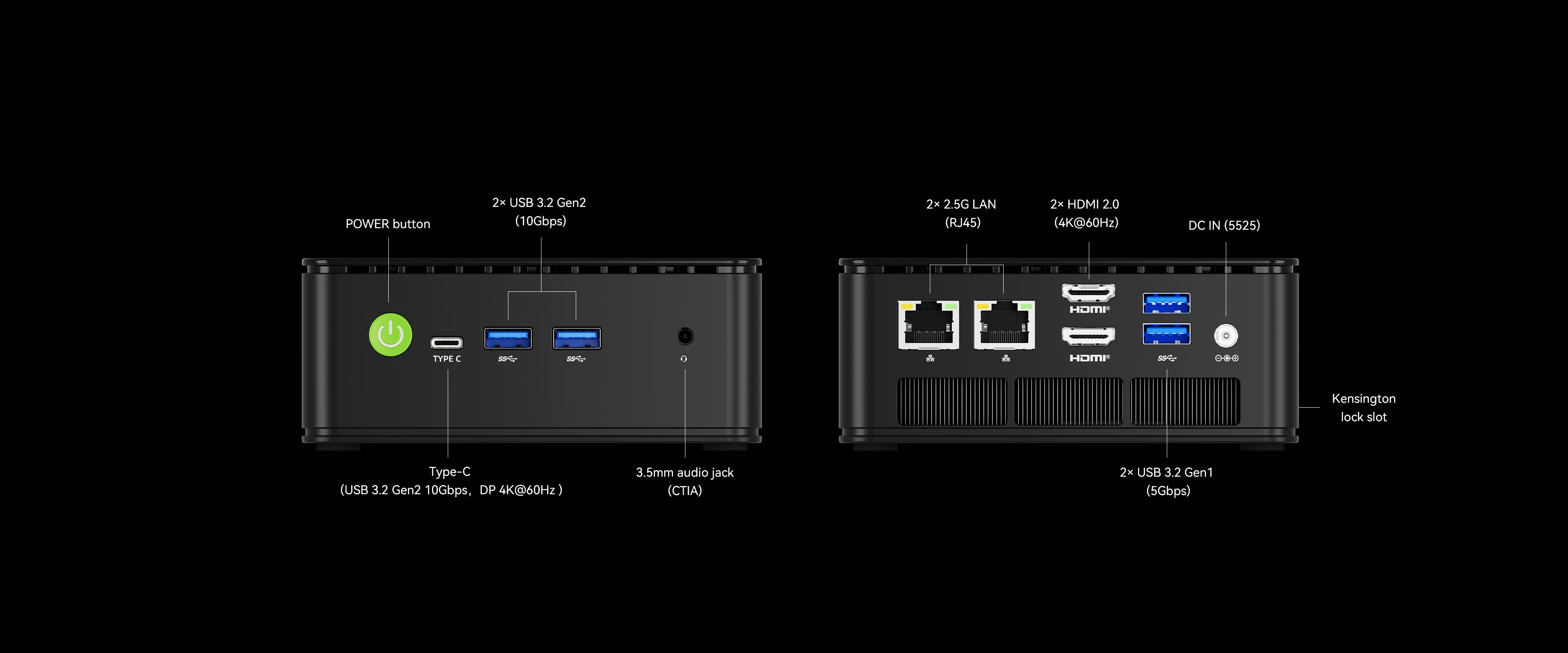

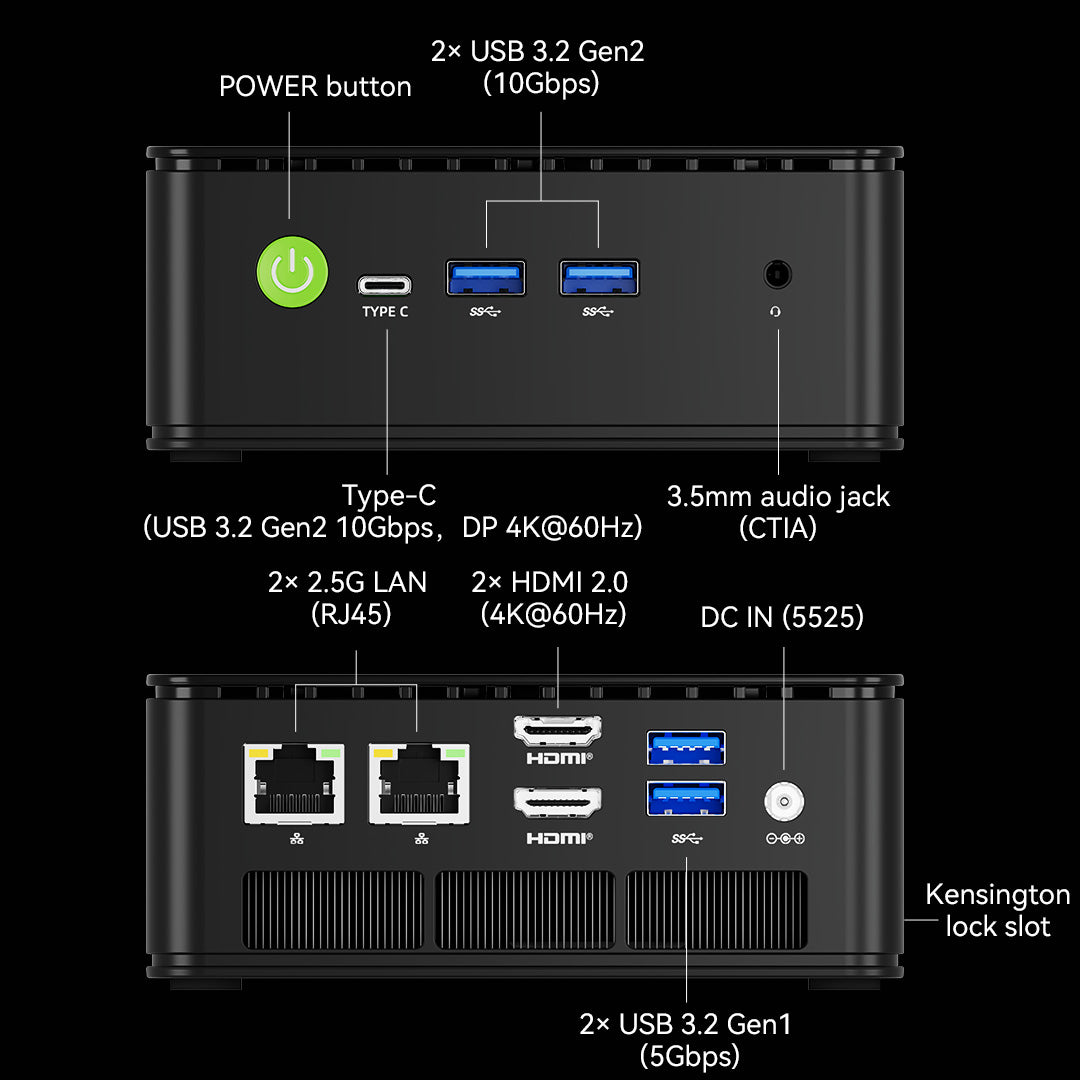

| Front I/O |
• 2× USB 3.2 Gen 2 Type-A, up to 10Gbps • 1× USB Type-C, USB 3.2 Gen 2, up to 10Gbps • Type-C DisplayPort Output, up to 4K@60Hz • Type-C Does Not Support Power Input • 1× 3.5mm CTIA Audio Jack • 1× Power Button with Integrated White Power Indicator |
| Rear I/O |
• 2× USB 3.2 Gen 1 Type-A, up to 5Gbps • 2× HDMI 2.0, up to 4K@60Hz • 1× DC IN 5525 Power Port • 2× RJ45 2.5G LAN |
| Security Lock | 1× Security Lock Slot on the Left Side |
| Power |
DC IN 19V / 3.42A Built-in Coin Cell Battery |
| Dimensions | 128.5 × 127 × 51 mm (Excluding Feet) |
| Net Weight | Approx. 480 g |
| Color | Gray / Silver |
| Chassis Material | Plastic |
| Mounting | VESA Mounting Holes and VESA Mounting Slot |
| Operating System |
Windows 11 Pro Microsoft Office 365 Not Included |
| Language Support |
Default Language: English Supports 14 Languages: English, Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese and Arabic |
| Auto Power On | Supported through BIOS Settings |
| Applications | Home, Small and Medium-Sized Businesses, Smart Manufacturing, Creative Design, Smart Retail, Healthcare, Education and Live Streaming |
| Package Contents |
NucBox G11 PLUS Mini PC User Manual Warranty Card Power Adapter VESA Mounting Bracket HDMI Cable |
| Optional Accessories | Keyboard and Mouse |
| Individual Package |
Package Dimensions: 188 × 186 × 114 mm Gross Weight: Approx. 1,258 g |
| Master Carton |
8 Units per Carton Carton Dimensions: 390 × 393 × 260 mm Gross Weight: Approx. 11 kg |
