GMKtec EVO-X3 AI Mini PC AMD Ryzen™ AI Max+ 395
GMKtec EVO-X3 AI Mini PC AMD Ryzen™ AI Max+ 395
Couldn't load pickup availability
| CPU |
AMD Ryzen™ AI Max+ 395 • 16 Cores / 32 Threads • TSMC 4nm FinFET Process • Up to 5.1 GHz Boost Clock • 16 MB L2 Cache / 64 MB L3 Cache • Zen 5 Architecture • Up to 126 TOPS AI Performance • Silent Mode: 54W • Balanced Mode: 85W • Performance Mode: Peak 140W |
| Cooling System |
• Triple Heat Pipes • Triple Cooling Fans |
| GPU |
Radeon™ 8060S Graphics • 40 Compute Units • Up to 2900 MHz • AMD RDNA 3.5 Architecture |
| AI NPU |

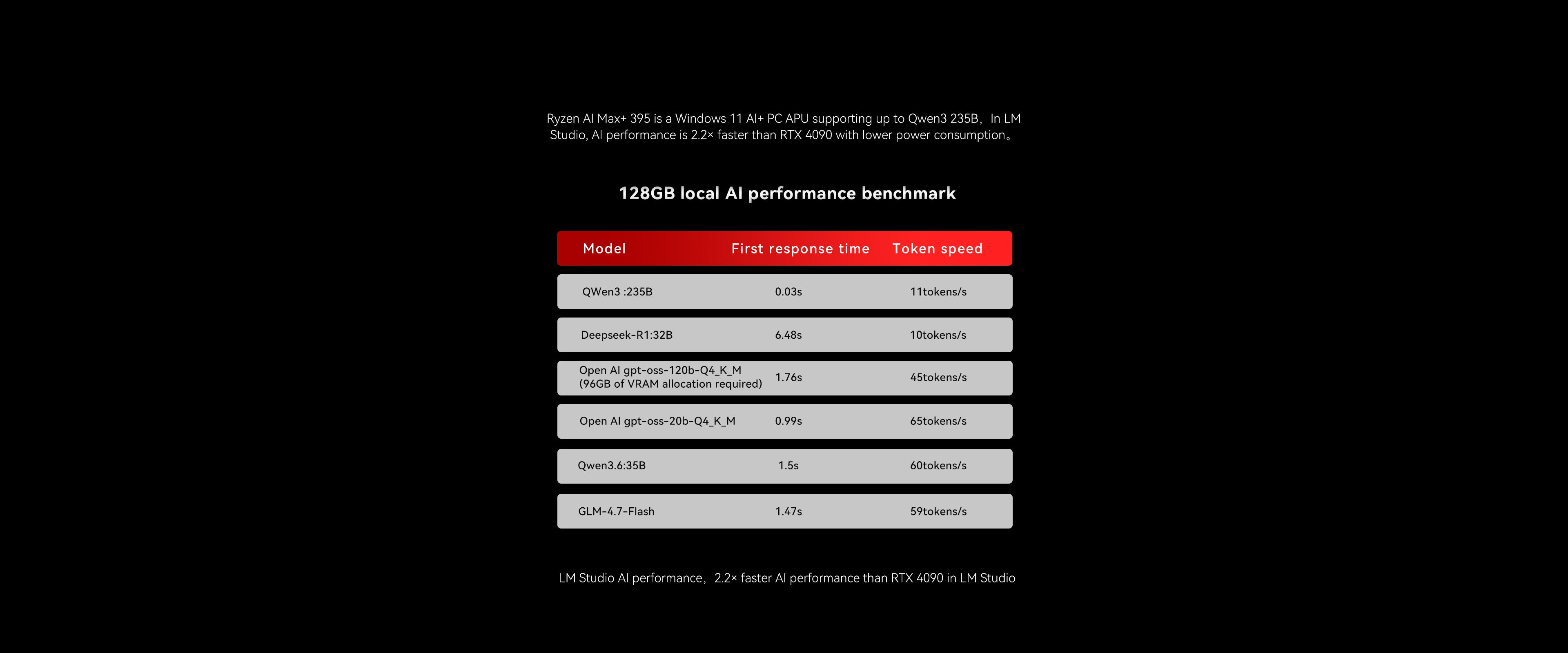

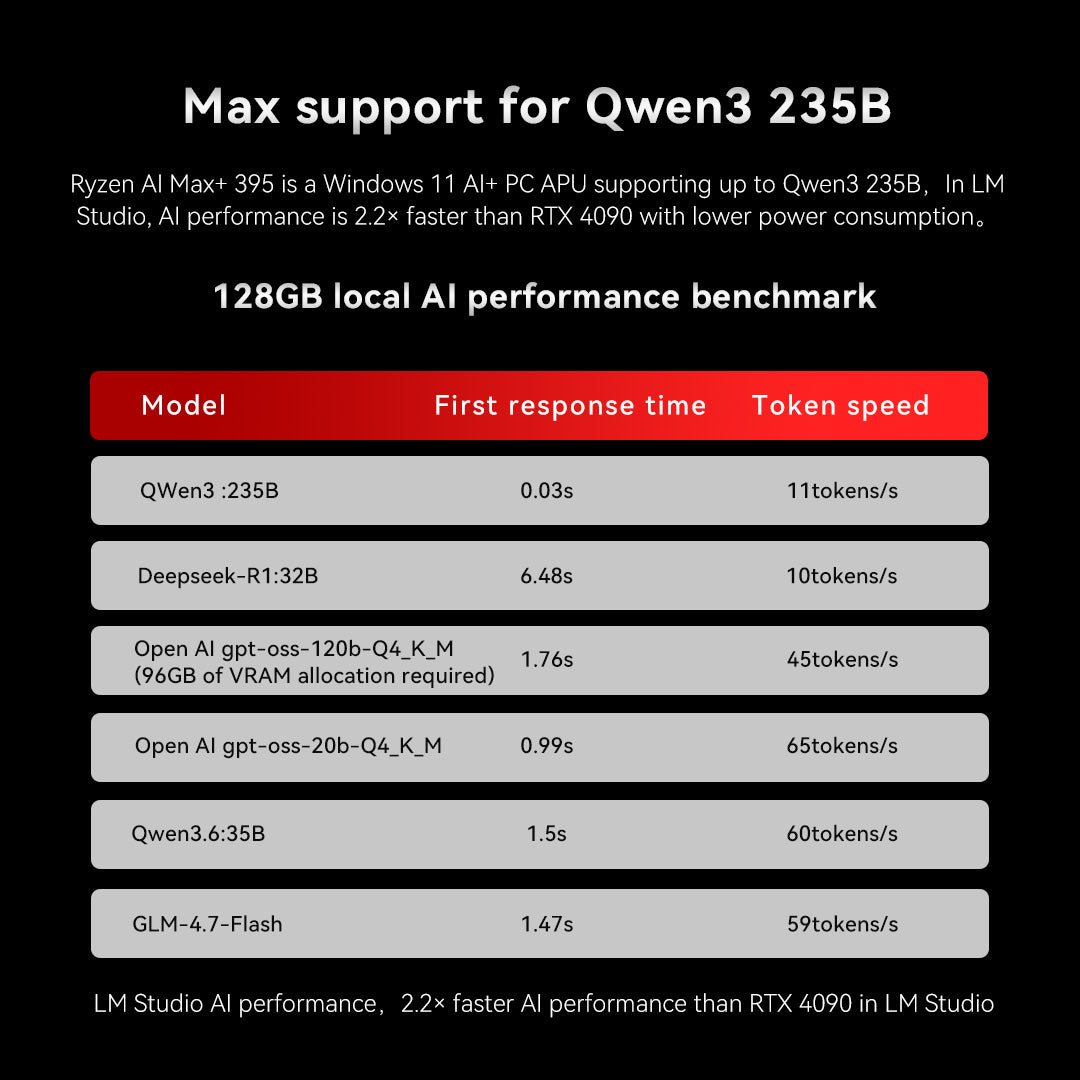

AMD XDNA™ 2 Architecture • 50 TOPS NPU Performance • Up to 126 TOPS Total AI Performance • World's first Windows AI+ PC APU supporting 70B LLM • LM Studio AI performance up to 2.2× NVIDIA RTX 4090 with lower power consumption |
| Memory (RAM) |

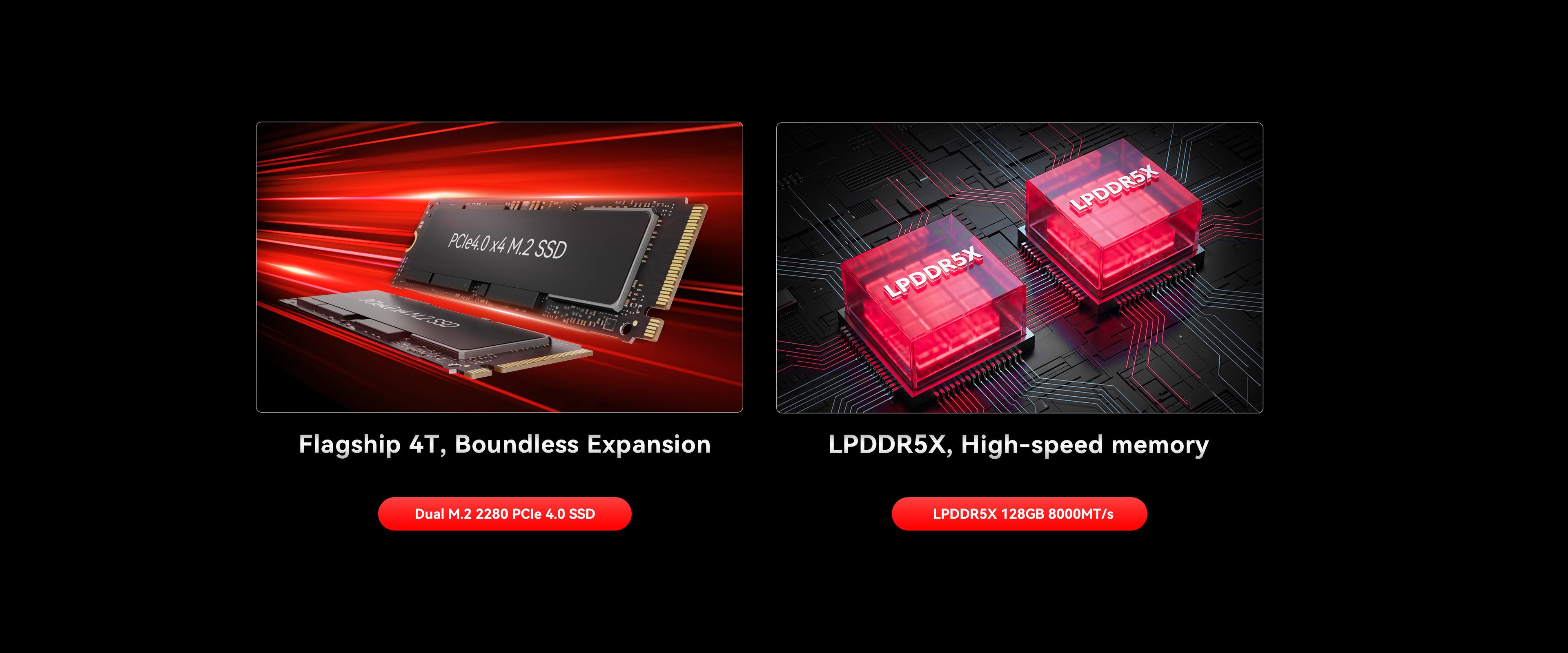

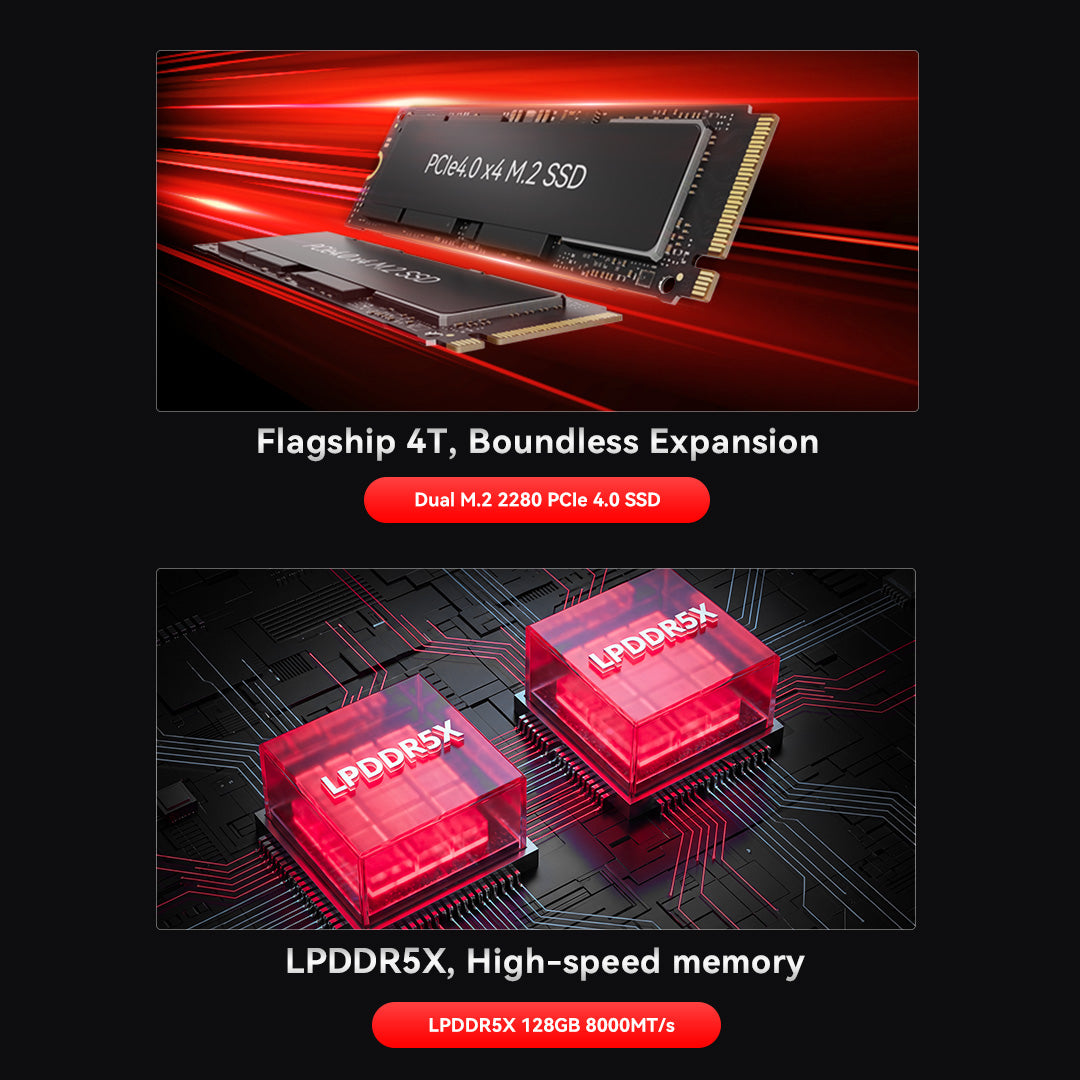

Onboard LPDDR5X 8000MT/s (Non-upgradeable) • 128GB Standard Configuration |
| Primary Storage (ROM) |
M.2 2280 PCIe 4.0 ×4 NVMe SSD • 2TB / 4TB |
| Internal Storage Expansion |
Dual M.2 2280 PCIe 4.0 ×4 Slots • Maximum Total Storage: 16TB (8TB ×2) |

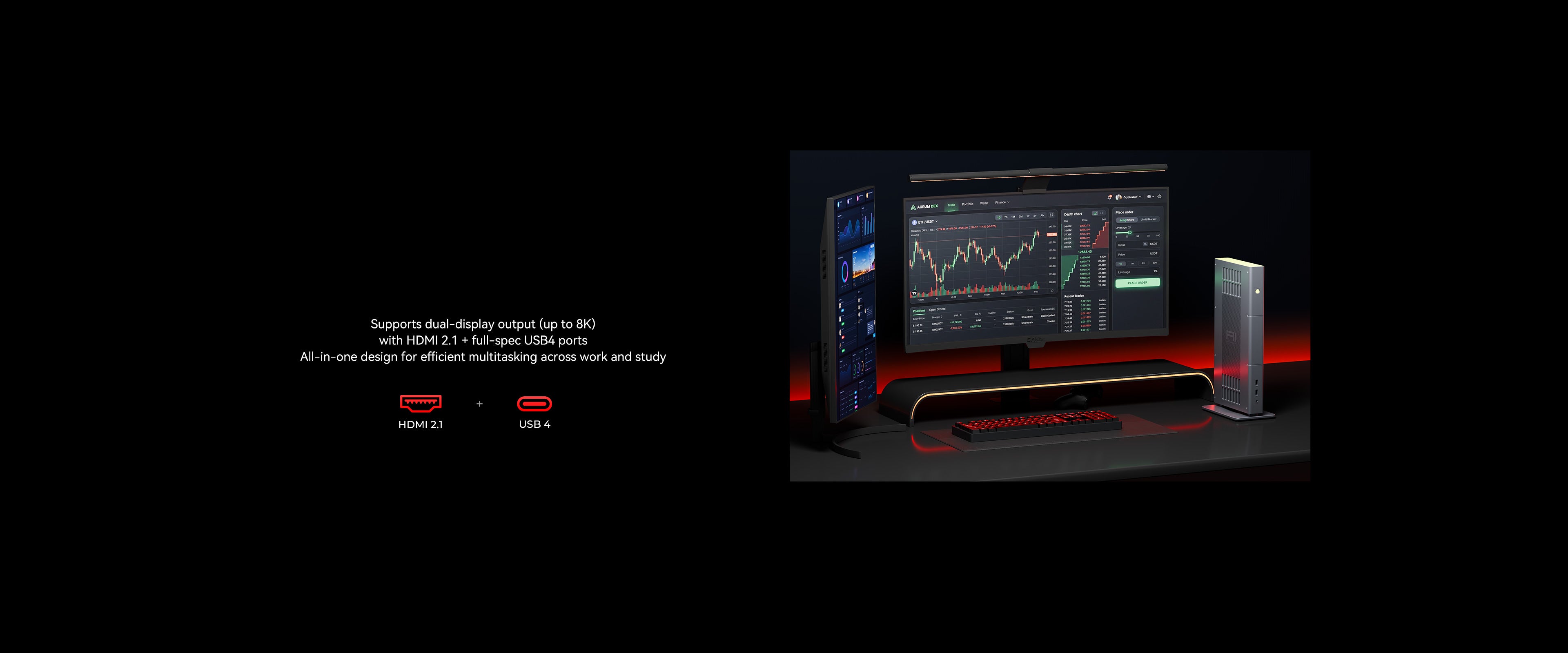

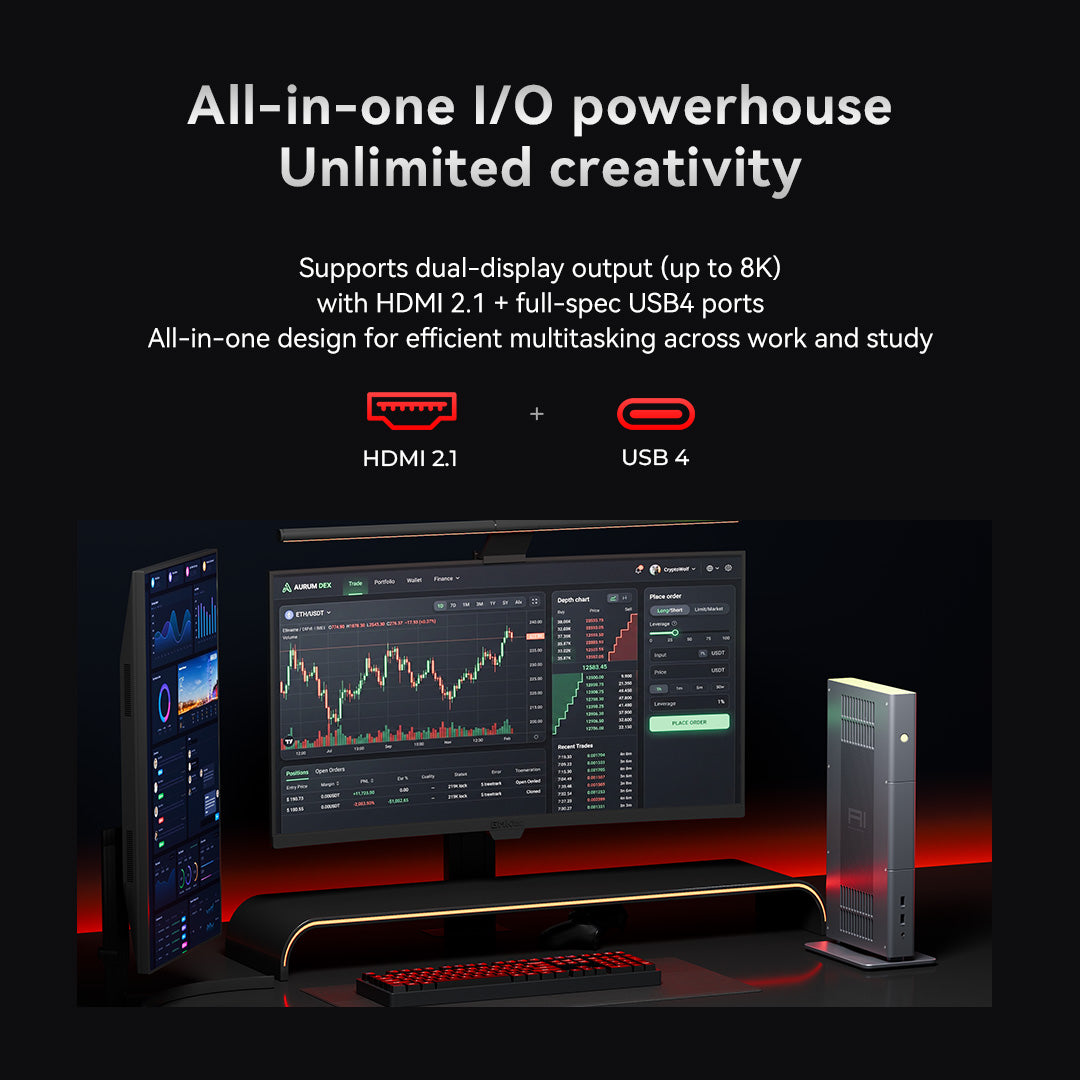

| Video Output |
• 1 × HDMI 2.1 • 1 × USB4 Type-C |
| Network (WiFi & LAN) |
Wi-Fi 7 (RZ717 / MT7925) • Up to 2.9Gbps Ethernet • 1 × 2.5G RJ45 LAN (RTL8125BG) |
| Bluetooth | Bluetooth 5.4 |
| Power |
• Built-in CMOS Battery • DC IN 19.5V / 11.8A |

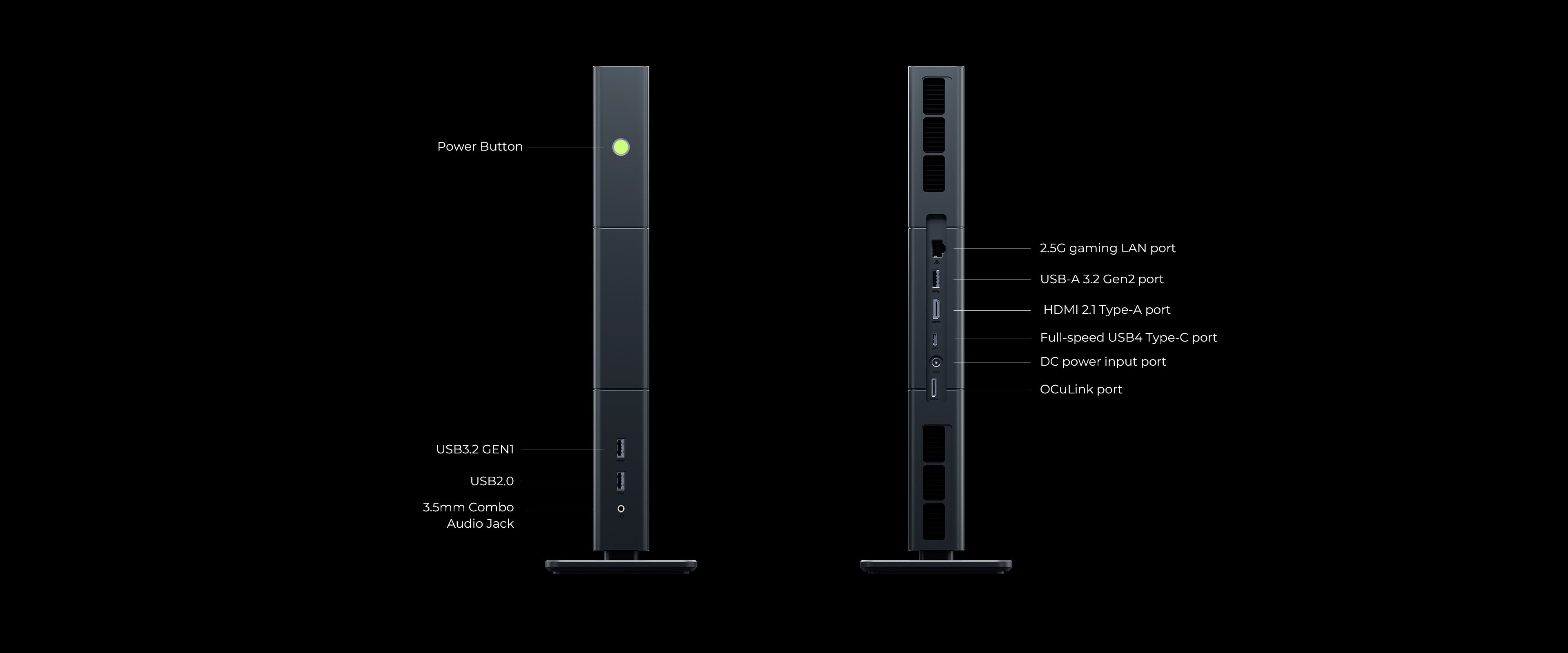

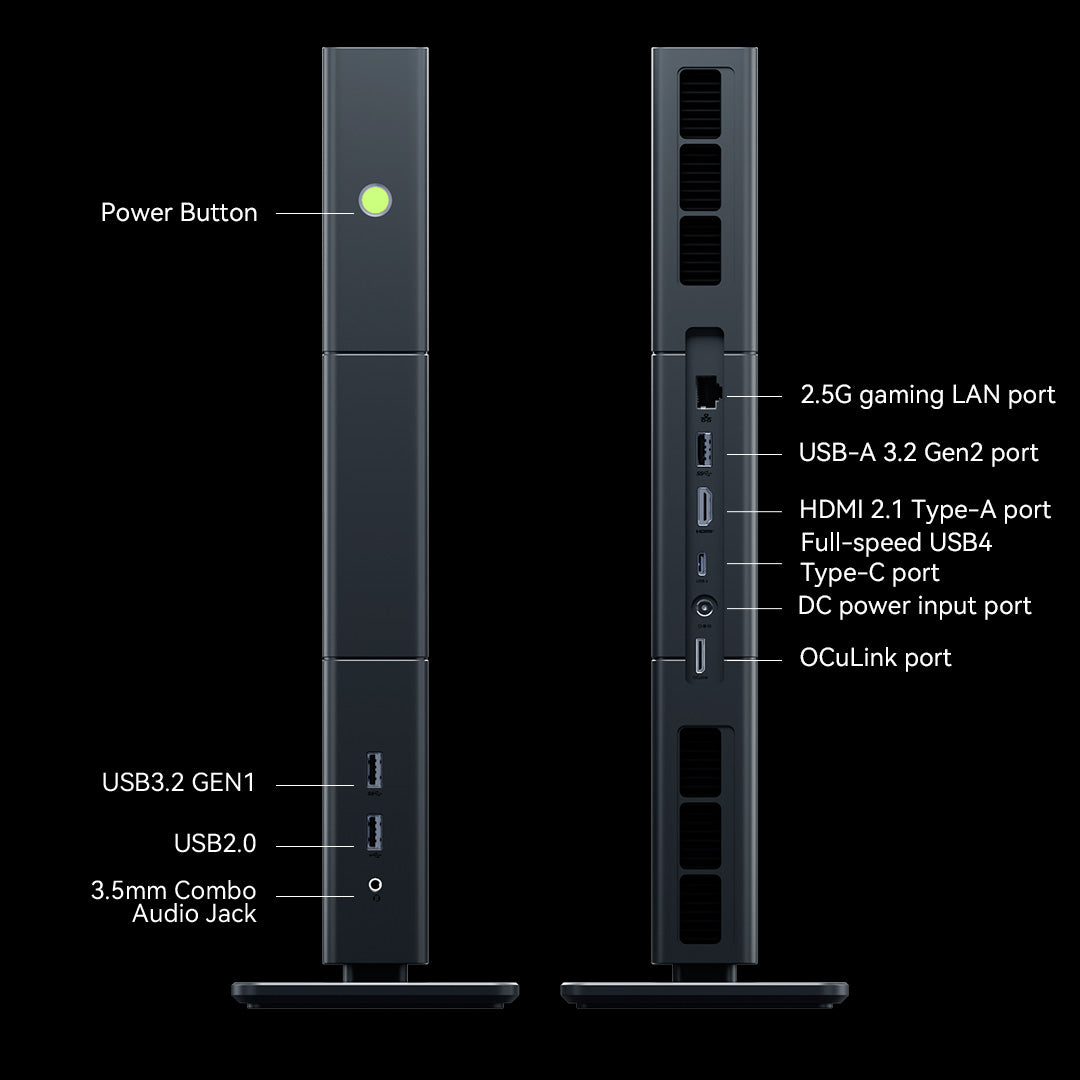

| Front Panel I/O |
• 1 × USB-A 3.2 Gen1 (5Gbps) • 1 × USB-A 2.0 (480Mbps) • 1 × 3.5mm Audio Combo Jack • 1 × Power Button with White LED |
| Rear Panel I/O |
• 1 × HDMI 2.1 (8K@60Hz) • 1 × OCuLink (PCIe Gen4 ×4) • 1 × USB-A 3.2 Gen2 (10Gbps) • 1 × USB4 Type-C (40Gbps / Video Output) • 1 × 2.5G RJ45 LAN (RTL8125BG) • 1 × DC IN (Ø5.5 × 2.5mm) |
| OS | Windows 11 Pro / Ubuntu / Linux |
| Chassis / Form Factor |
• Dimensions: 353 × 186 × 41 mm (Without Stand) • Weight: Approx. 2.3 kg • Color: Gray + Green • Full Metal CNC Chassis |

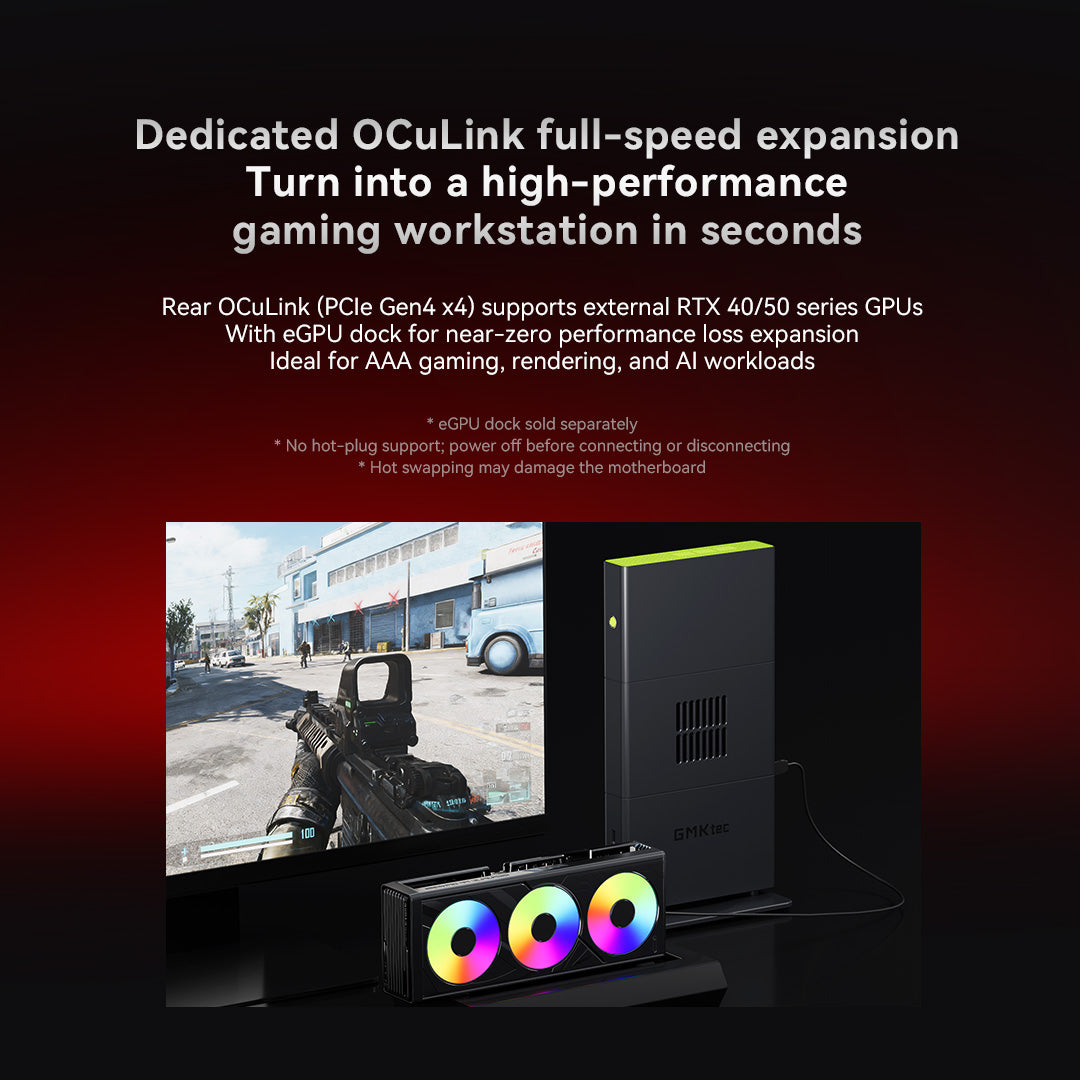

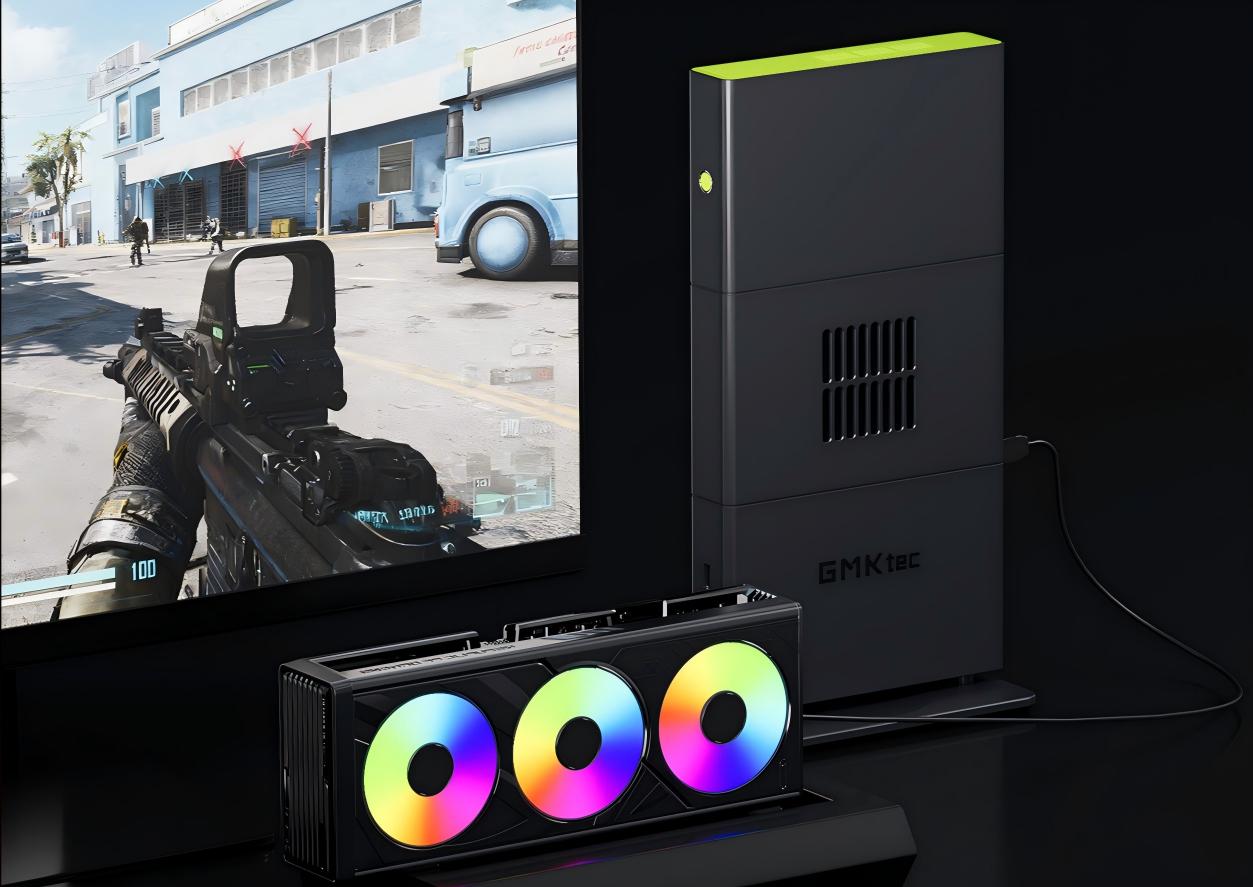

Dedicated OCuLink full-speed expansion
Rear OCuLink (PCIe Gen4 x4) supports external RTX 40/50 series GPUs
With eGPU dock for near-zero performance loss expansion
Ideal for AAA gaming, rendering, and AI workloads
Note：eGPU dock sold separately; No hot-plug support; power off before connecting or disconnecting; Hot swapping may damage the otherboard.

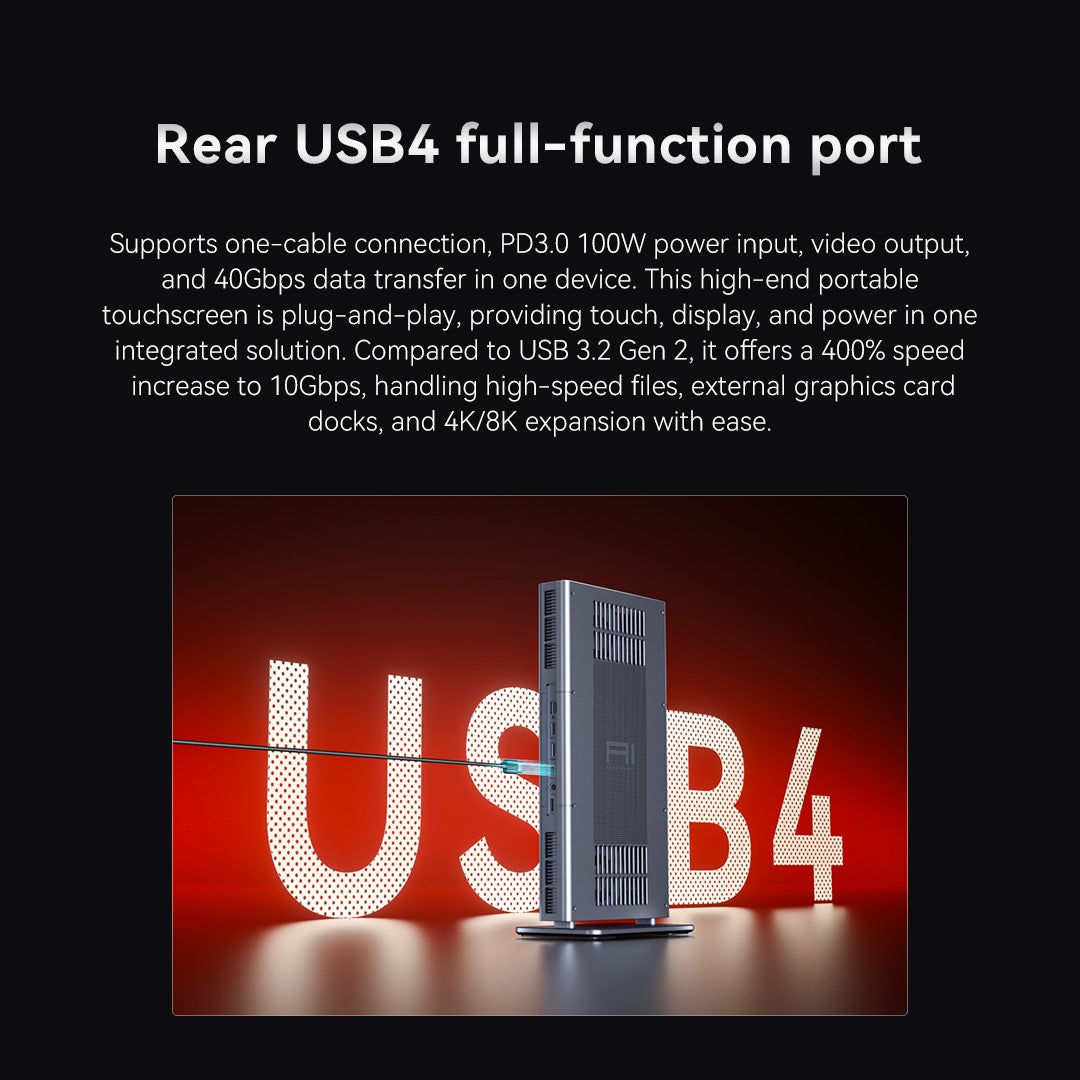

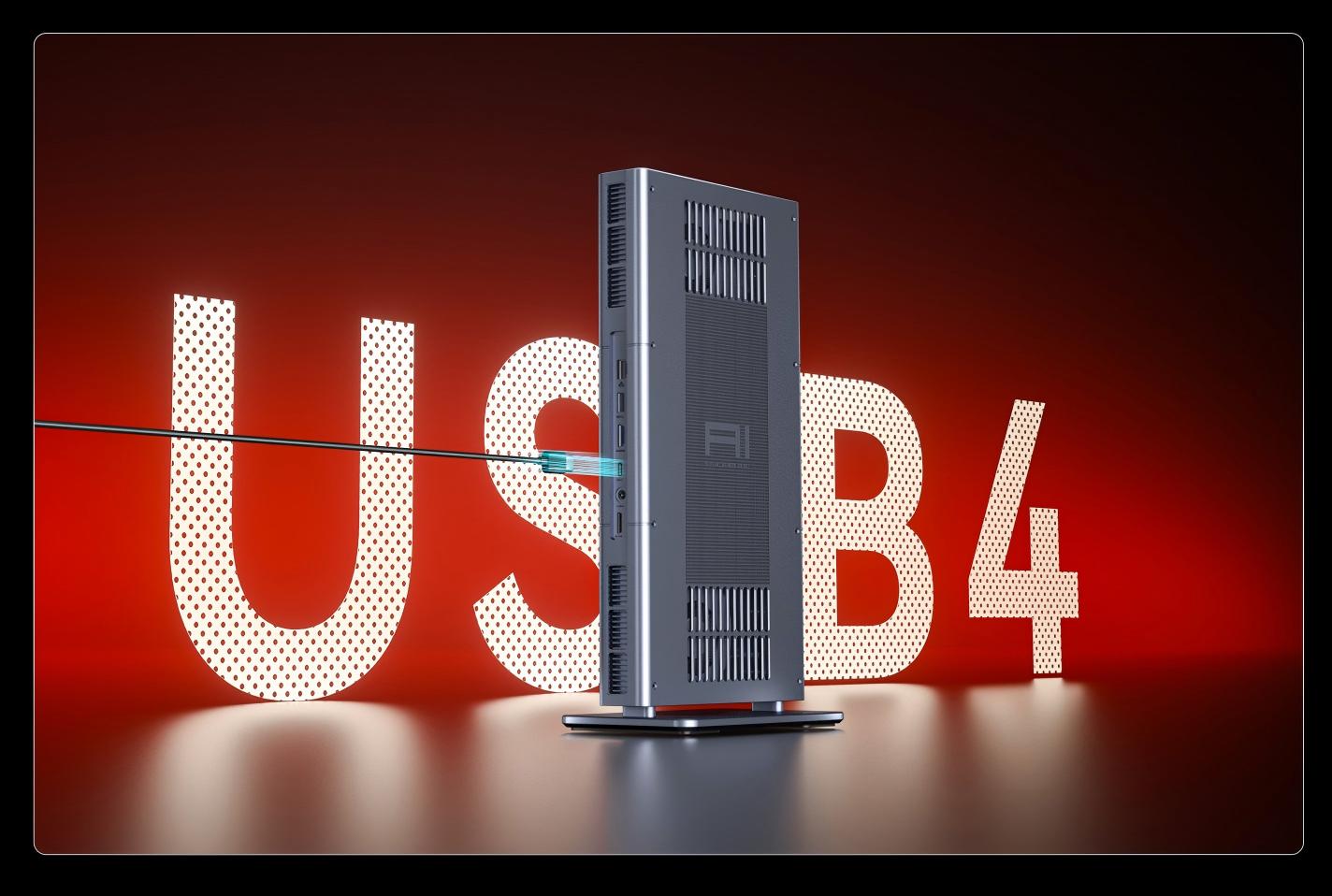

Rear USB4 full-function port
Supports one-cable connection, video output, and 40Gbps data transfer in one device.
This high-end portable solution is plug-and-play, providing touch, display, and power in one integrated system.
Compared to USB 3.2 Gen 2, it offers a 400% speed increase up to 10Gbps, handling high-speed files, external graphics card docks, and 4K/8K expansion with ease.

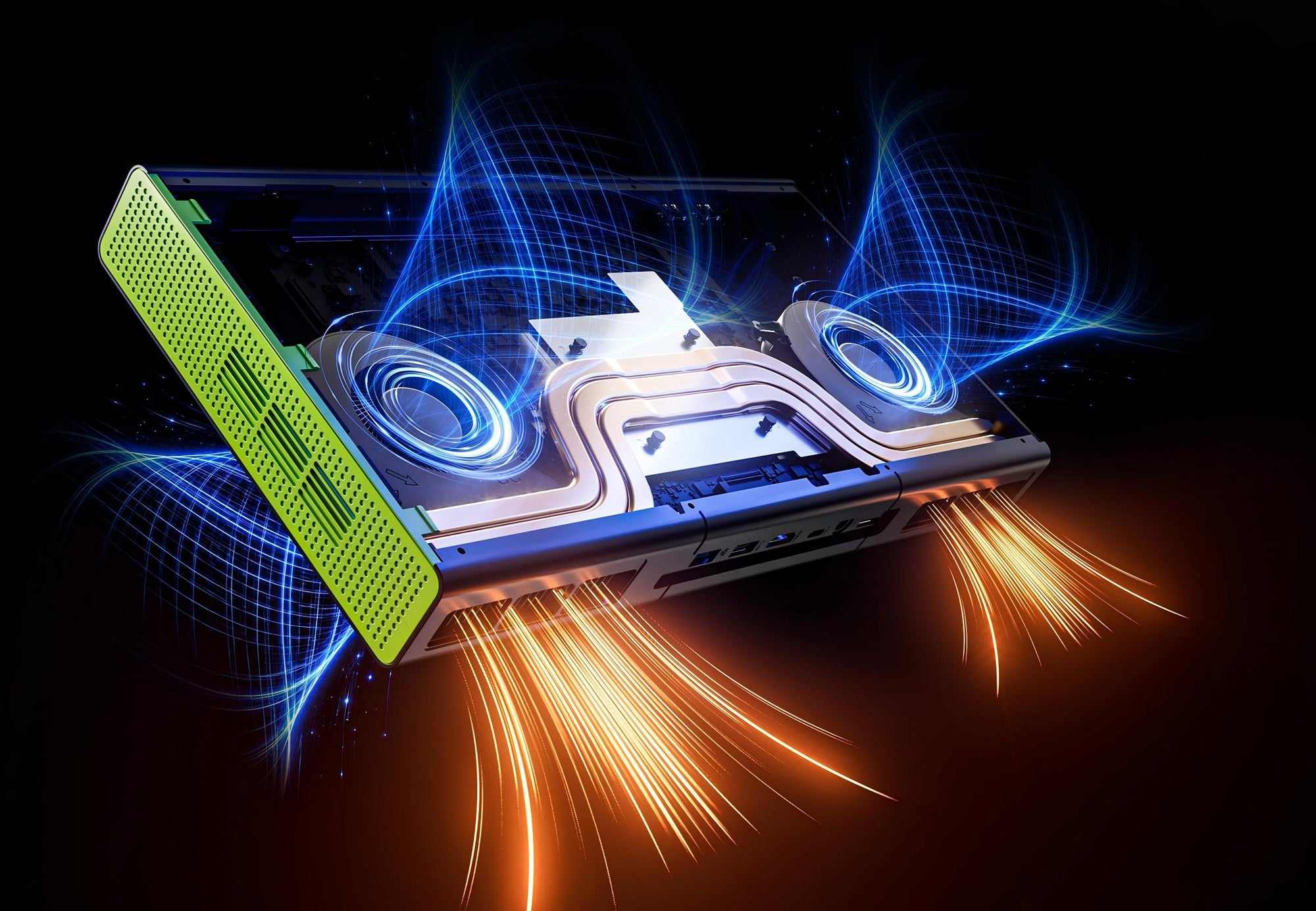

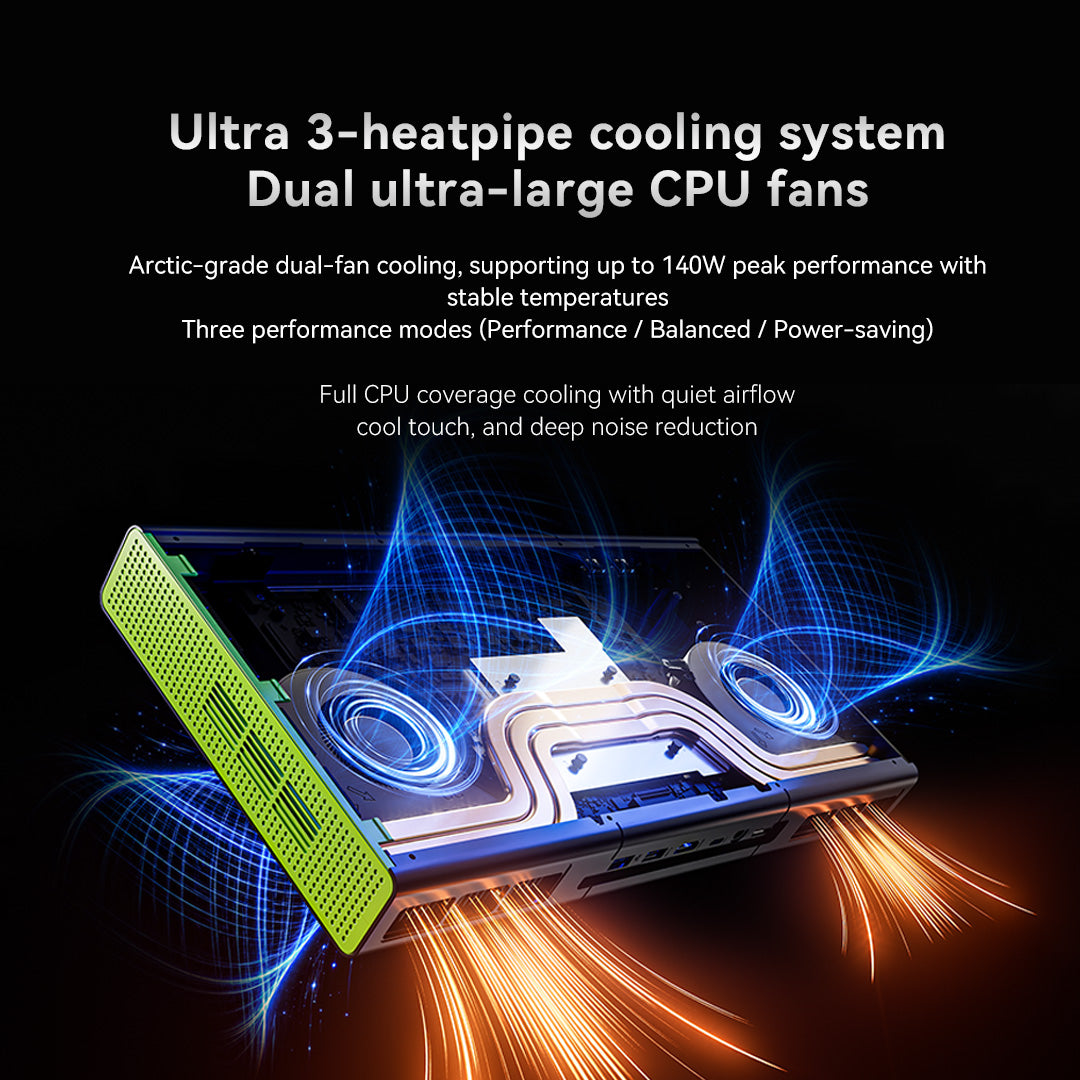

Ultra 3-heatpipe cooling systemDual ultra-large CPU fans
Arctic-grade dual-fan cooling, supporting up to 140W peak performance with stable temperatures

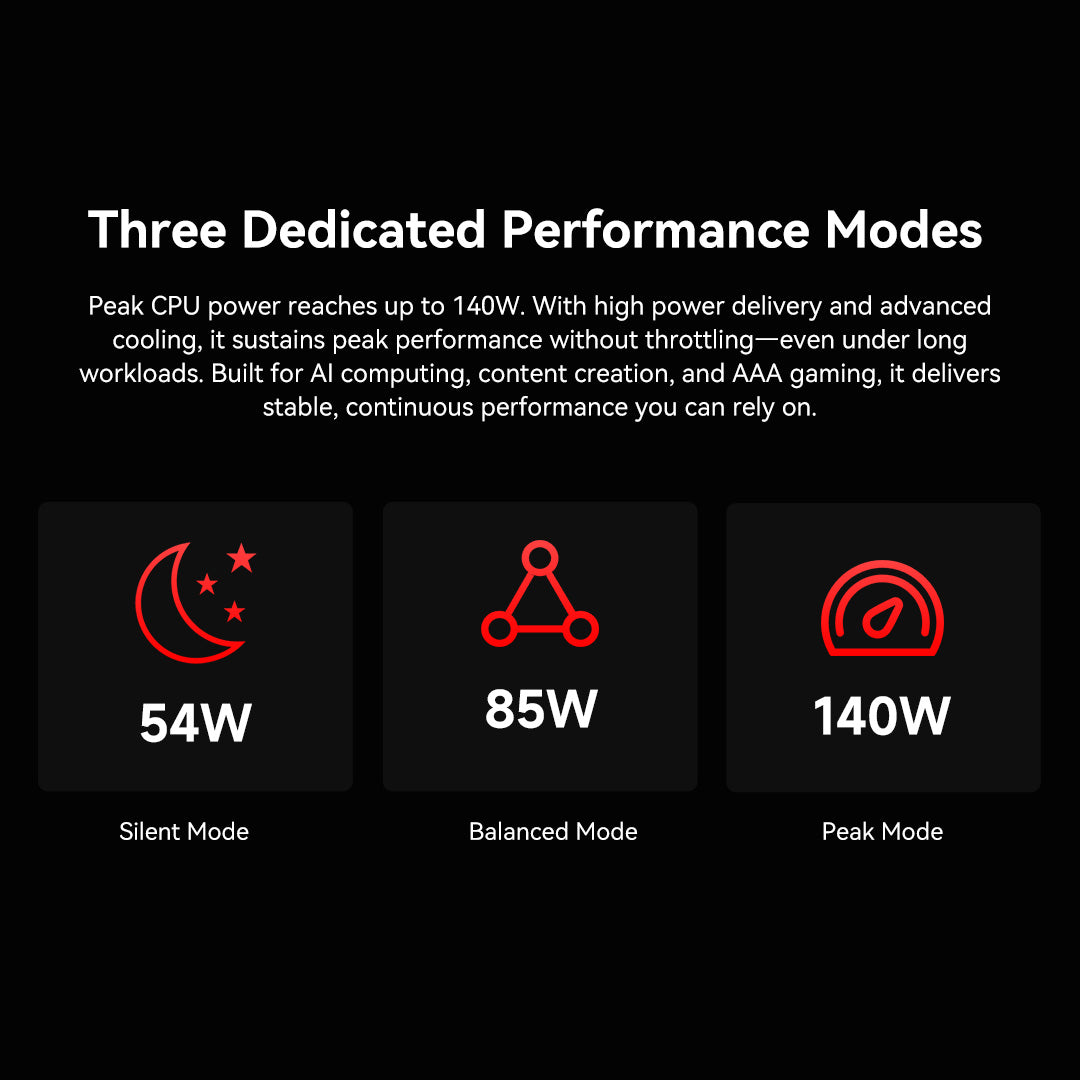

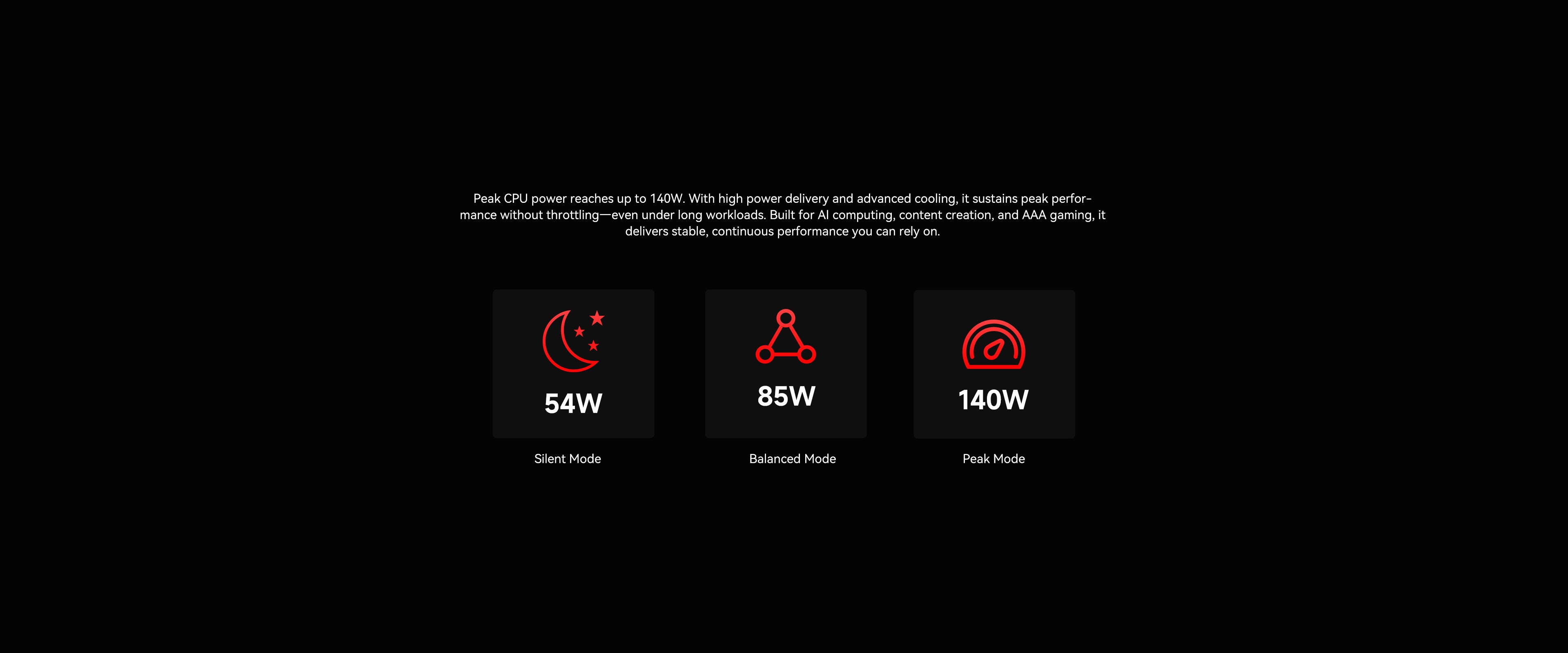

Three performance modes (Performance / Balanced / Power-saving)
Note: Full CPU coverage cooling with quiet airflow, cool touch, and noise reduction

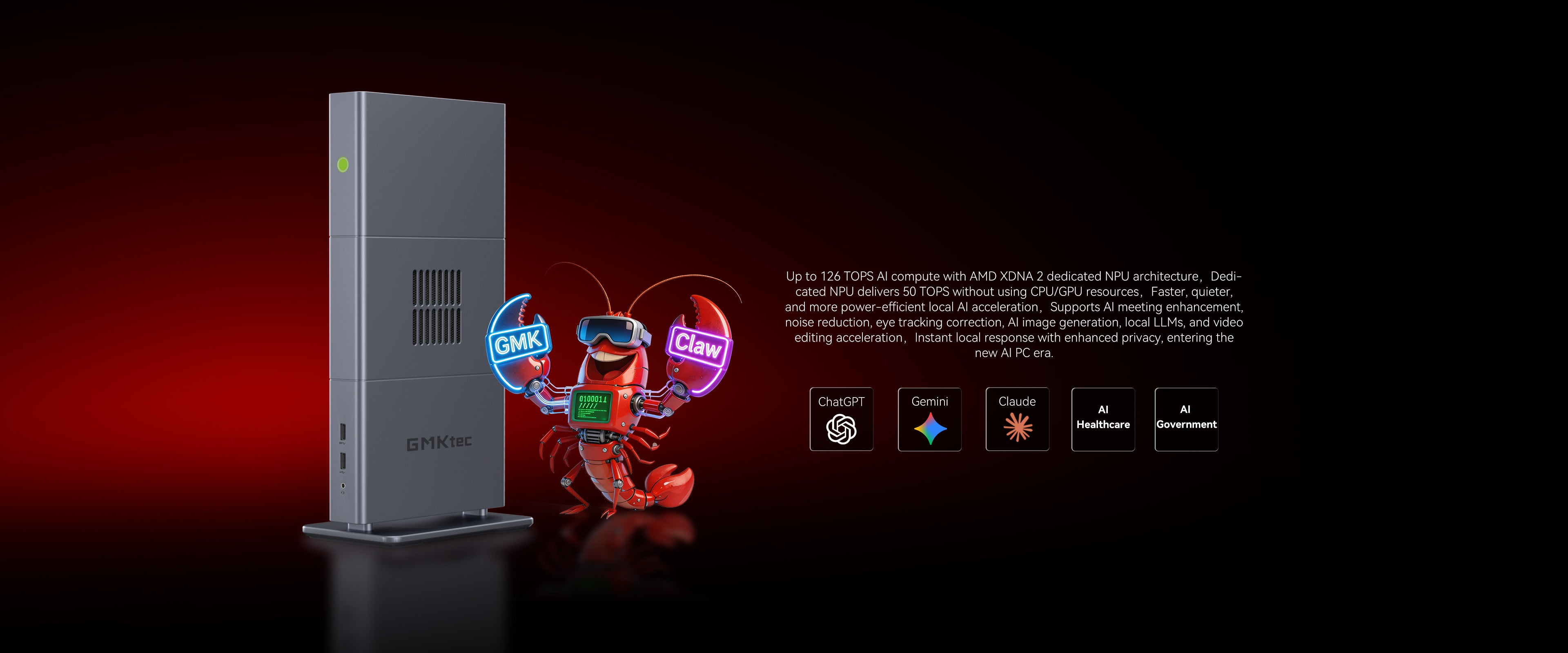

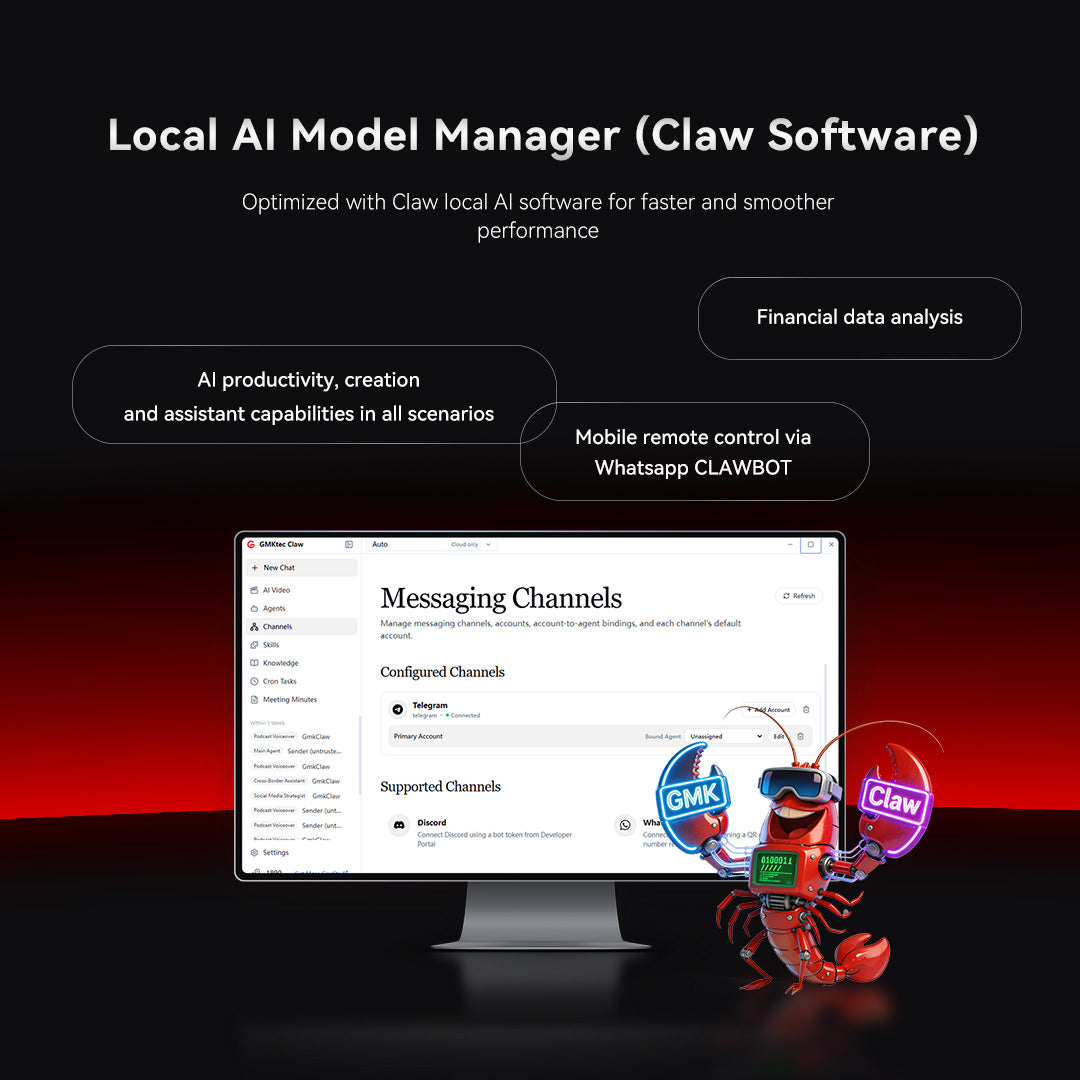

Ready-to-Use Local AI Models

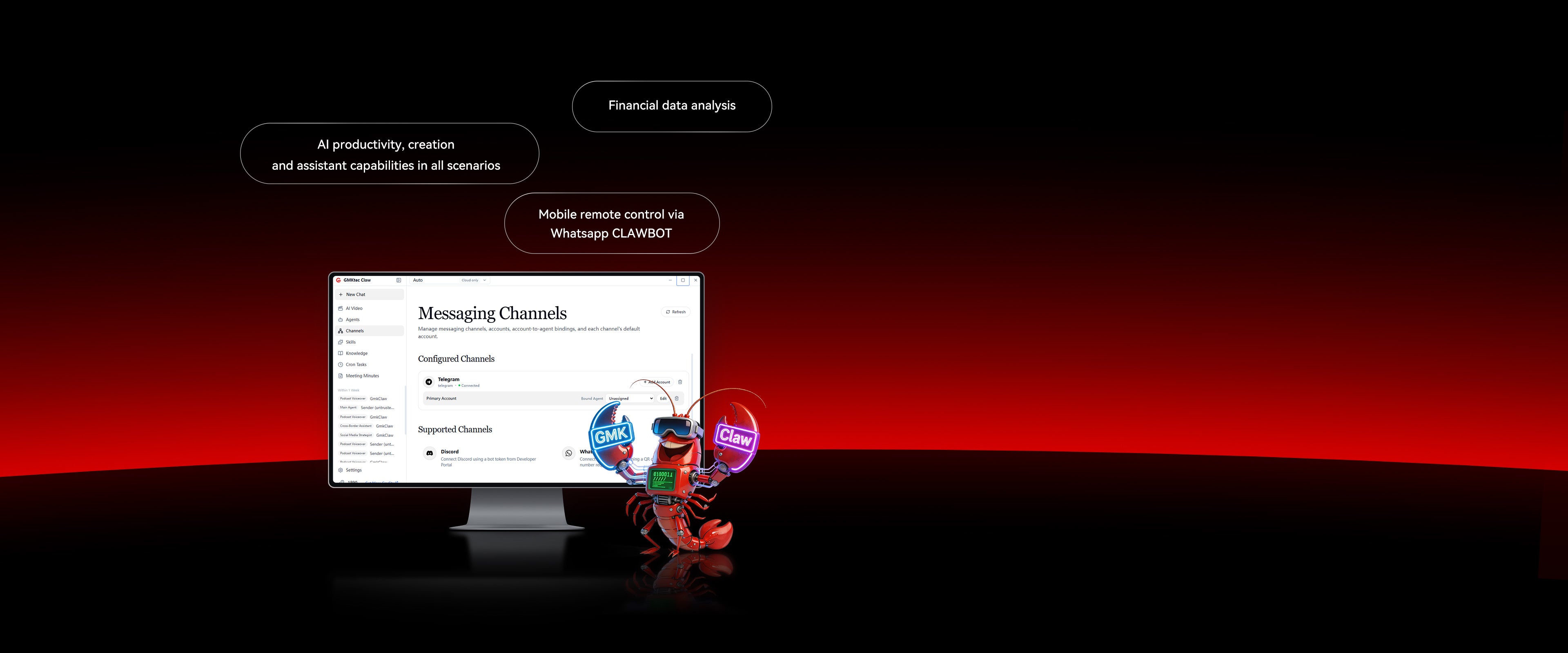

Pre-installed GMKtec Claw system with one-click deployment, no coding or setup required. Even beginners can easily deploy local AI agents — ready out of the box. Supports seamless switching between cloud and local AI models. Compatible with GPT, Qwen, DeepSeek and other major LLMs.

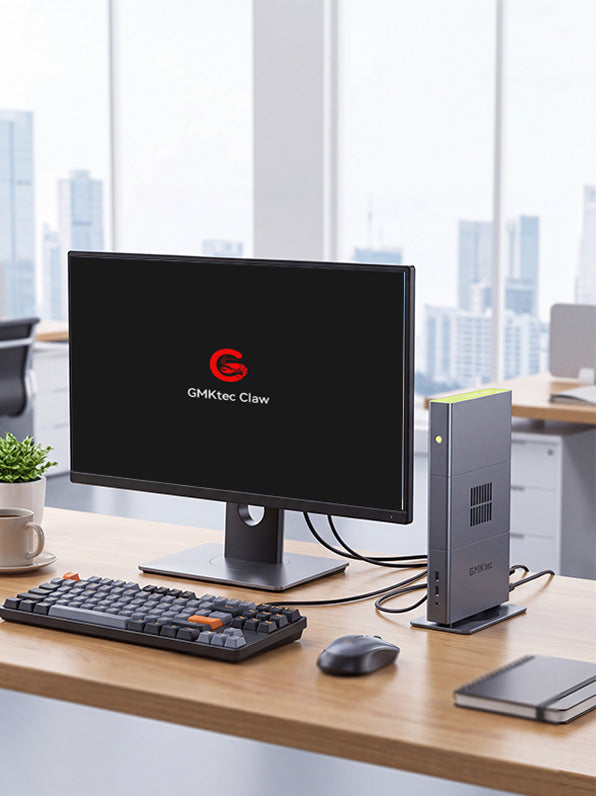

AI Application Scenarios
One-click AI deployment for everyday tasks

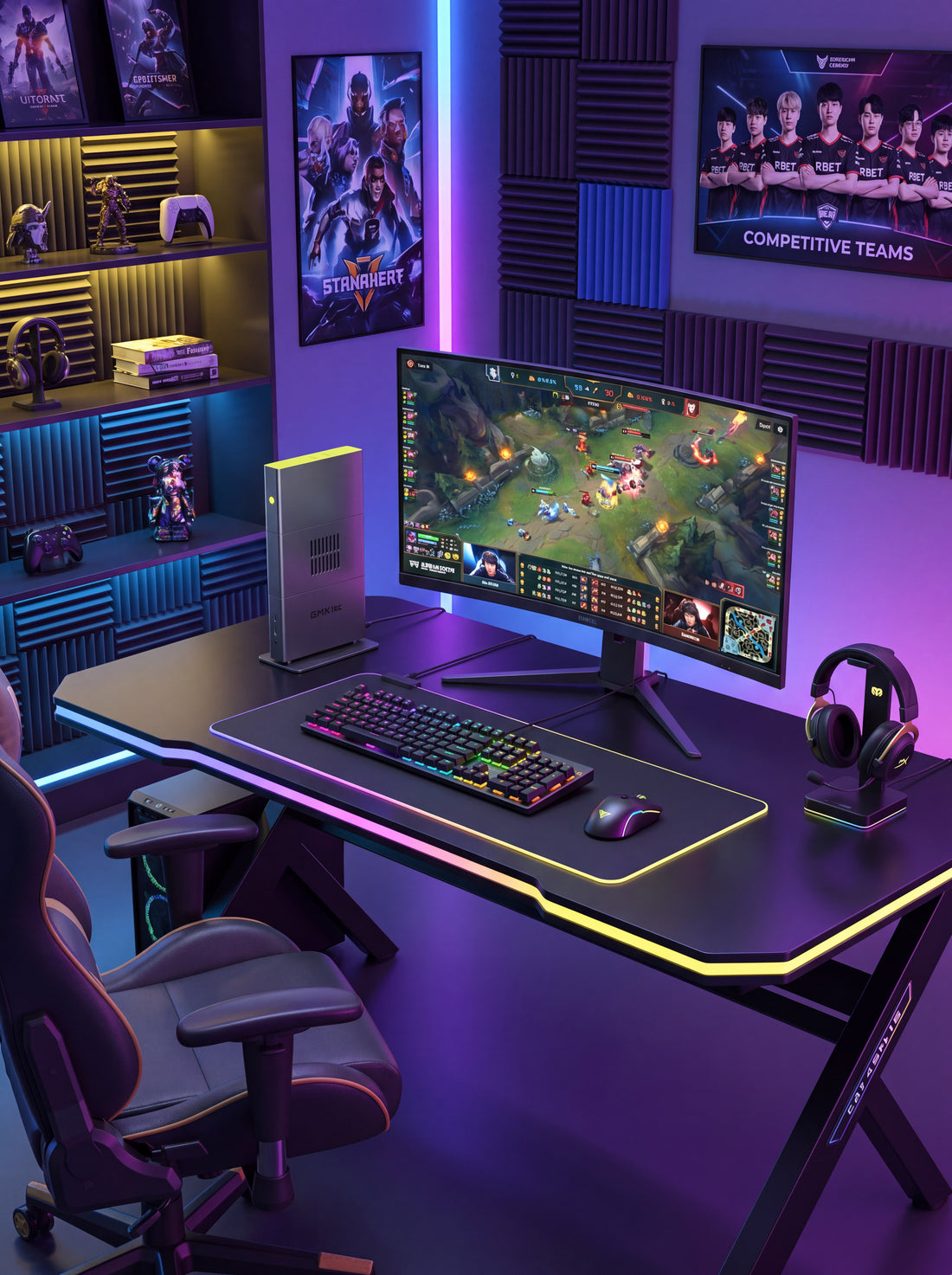

Enhanced Gaming Performance
Supports RTX-level AI + gaming optimization
Lightweight Enterprise Server
Stable 24/7 business deployment

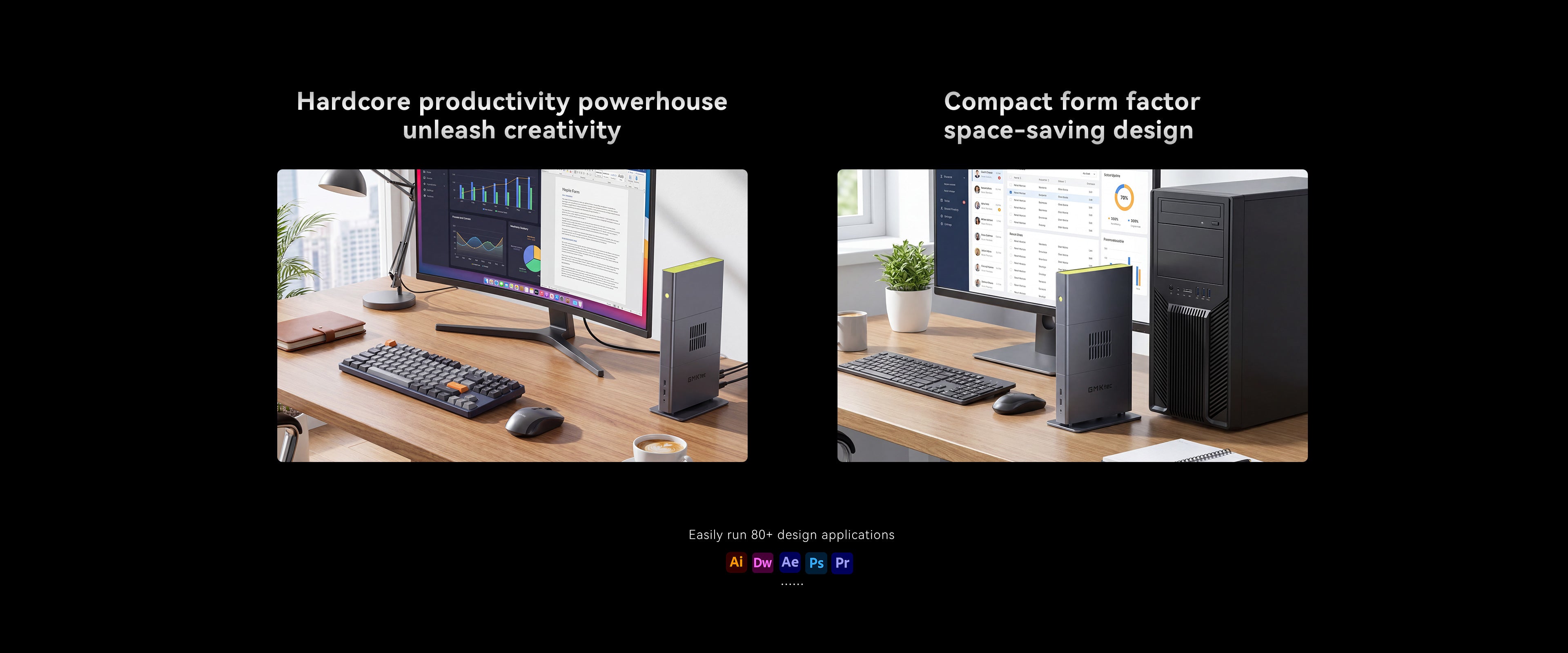

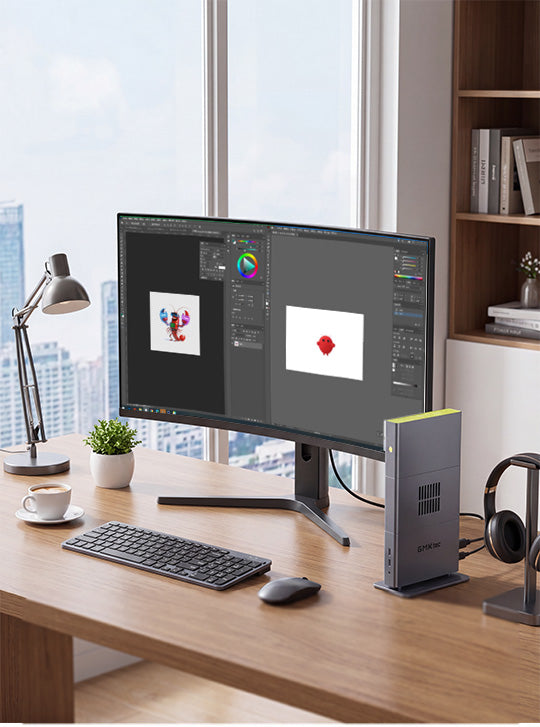

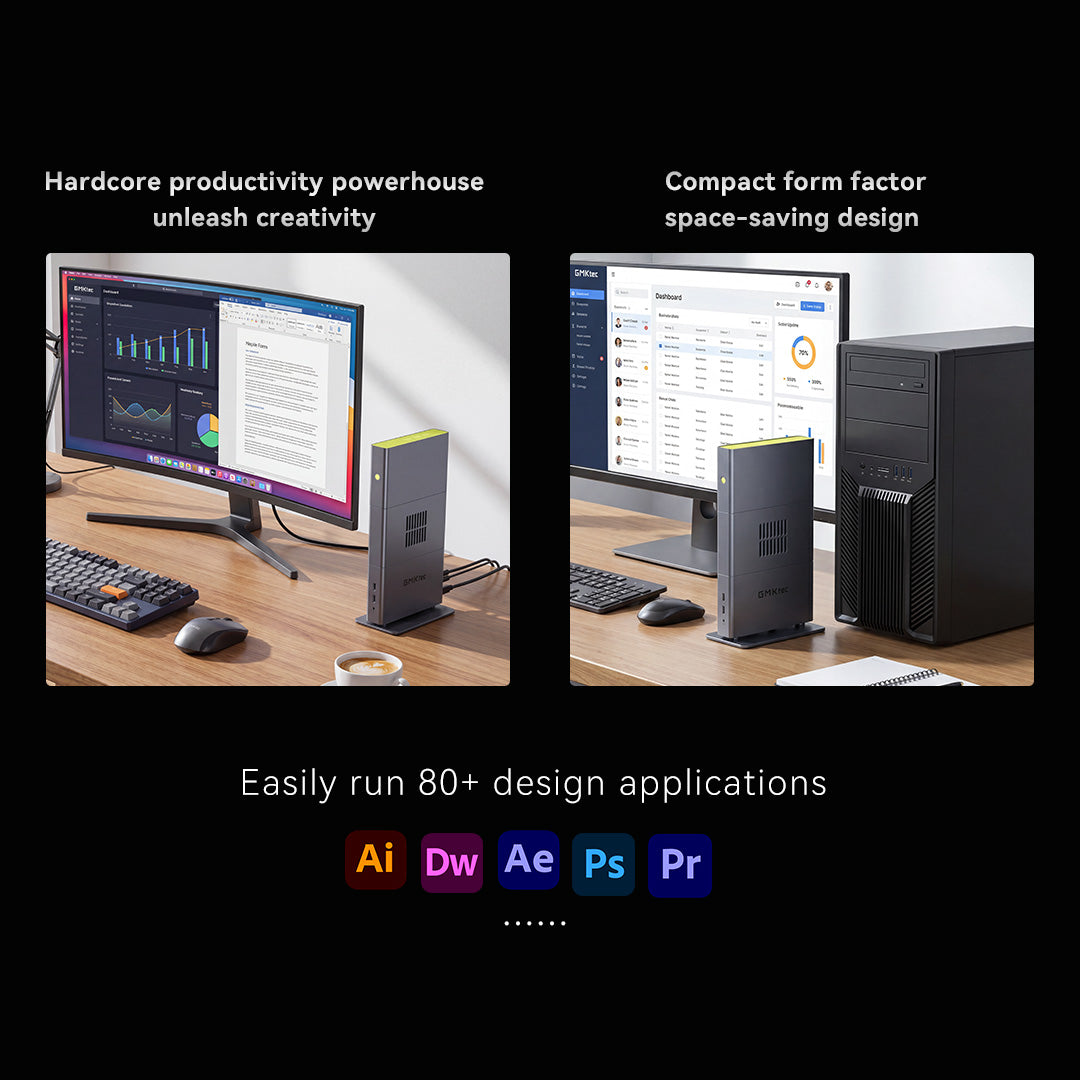

Creative Design Workstation
AI-powered image and video creation workflow
