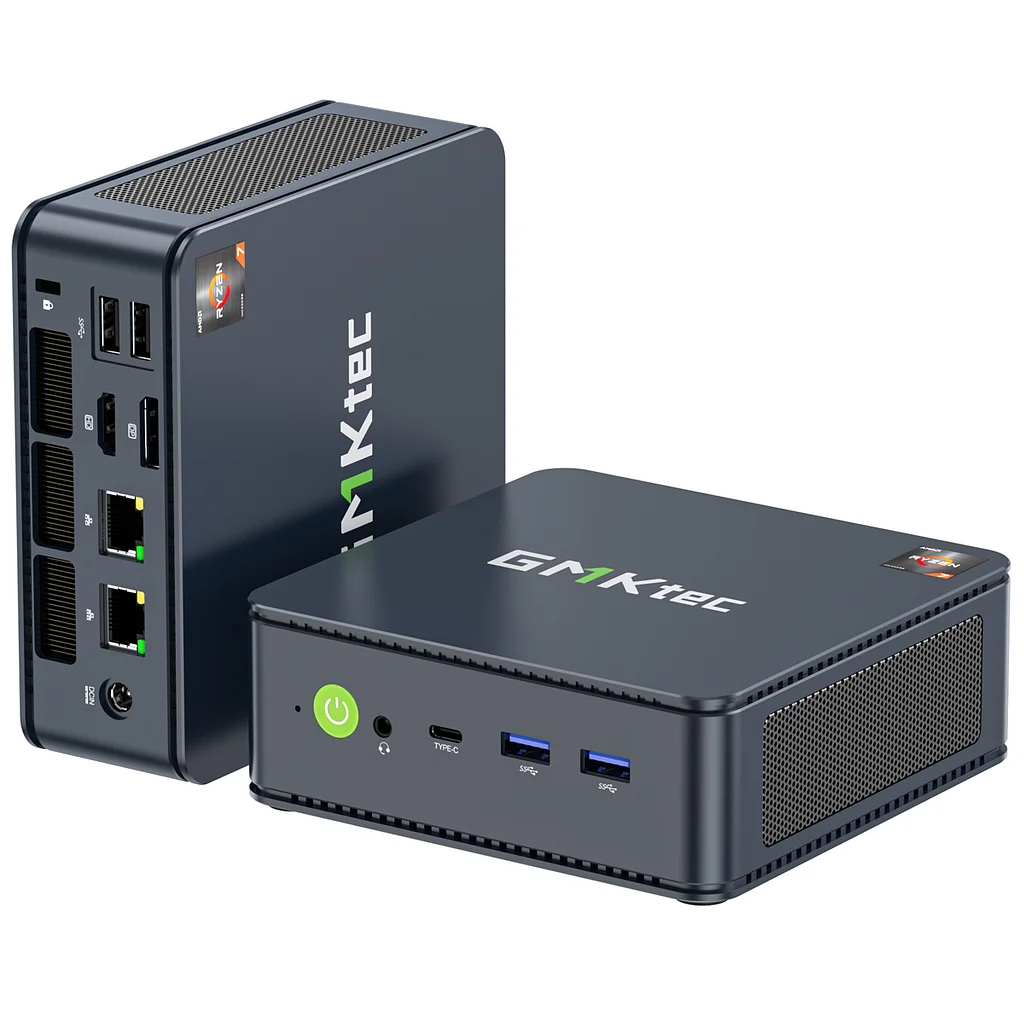

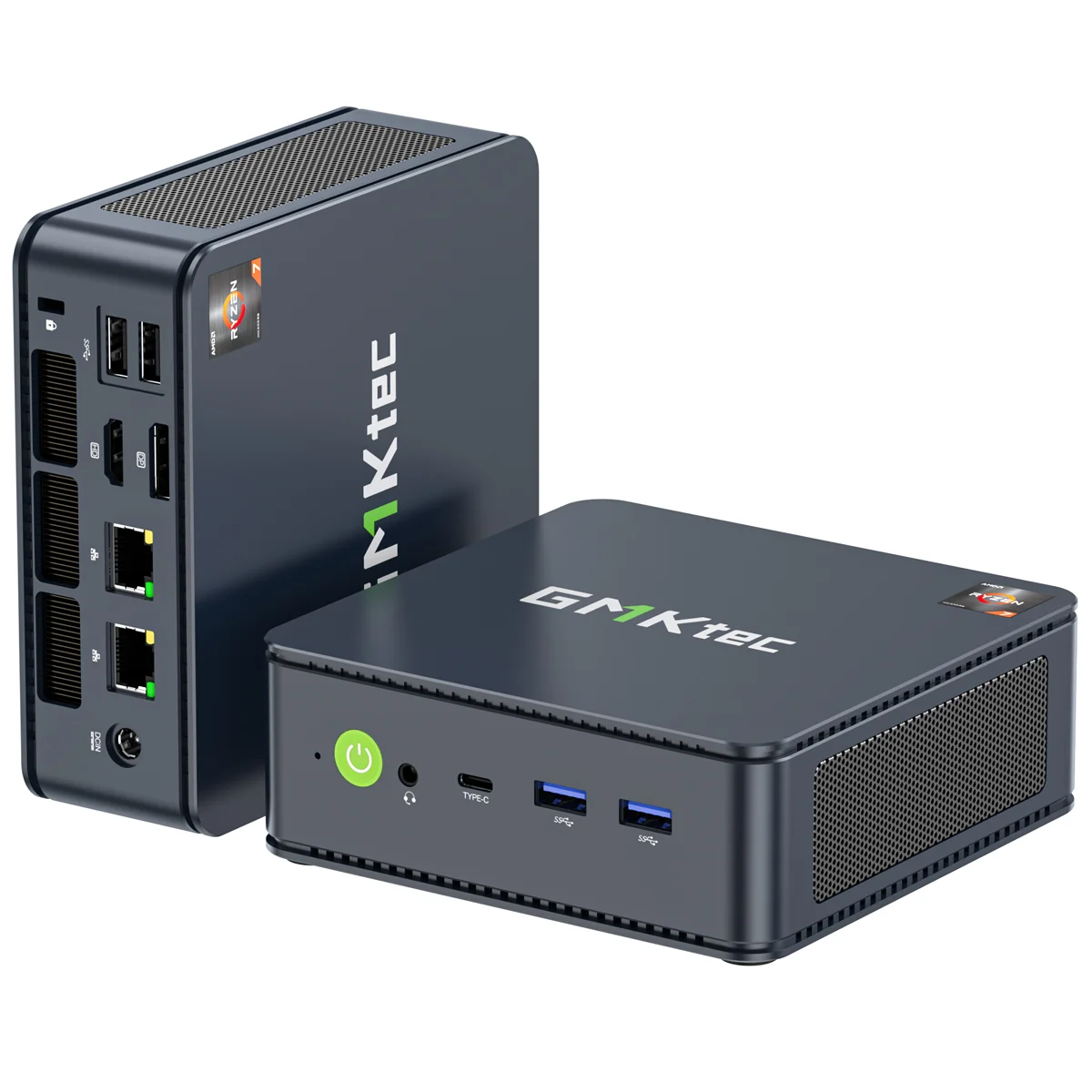

GMKtec NucBox M5 Plus Mini PC AMD Ryzen™ 7 5825U

Parameter	Details
Model	GMKtec NucBox M5 Plus
CPU Model	AMD Ryzen™ 7 5825U
CPU	AMD Ryzen™ Processor, 8 Cores, 16 Threads 7nm Process, FP6 Package Base Frequency 2.0GHz, Max Boost up to 4.5GHz 4MB L2 Cache / 16MB L3 Cache TDP 10W–35W Zen 3+ Architecture
CPU Socket / Package	FP6 Package
GPU	AMD Radeon™ Graphics 8 Cores, up to 2000MHz
Memory (RAM)	2 × SO-DIMM Slots Dual-Channel DDR4-3200 Memory 16GB / 32GB configurations Supports up to 64GB
Storage (ROM)	PCIe 3.0 M.2 2280 SSD 512GB standard configuration
Storage Expansion	Supports up to 2TB total storage expansion
Graphics Output	Triple display output via HDMI + DisplayPort + USB Type-C Supports up to 4096 × 2160 resolution
Network	Wi-Fi 6 (RZ616, up to 1.2Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (Realtek RTL8125)
Power	Built-in coin cell battery DC Power Adapter 19V / 3.42A
External Ports	USB-A: 2 × USB 3.2 Gen2 + 2 × USB 2.0 HDMI: 1 × HDMI 2.0 (up to 4K@60Hz) DisplayPort: 1 × DisplayPort (up to 4K@60Hz) USB-C: 1 × Type-C (USB 3.1 Gen2 / PD / DP / Data, 10Gbps) Audio: 1 × 3.5mm CTIA Audio Jack LAN: 2 × RJ45 2.5G Ethernet Power: 1 × DC IN (5.5 / 2.5mm) Reset: 1 × Reset Button
USB-C Notice	The USB Type-C port supports data transfer, video output, and PD input (65W–100W). External GPU connection is not supported.
Operating System	Windows 11 Pro / Linux Supported
Language Support	13 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic
Chassis Dimensions	128.8 × 127 × 47.8 mm
Weight	528 g
Color	Bronze
Working Temperature	0°C – 40°C
Warranty	1-Year Limited Warranty
Certifications	CE, FCC, CCC, RoHS
Packaging List	User Manual Warranty Card Power Adapter VESA Mount Bracket HDMI Cable
